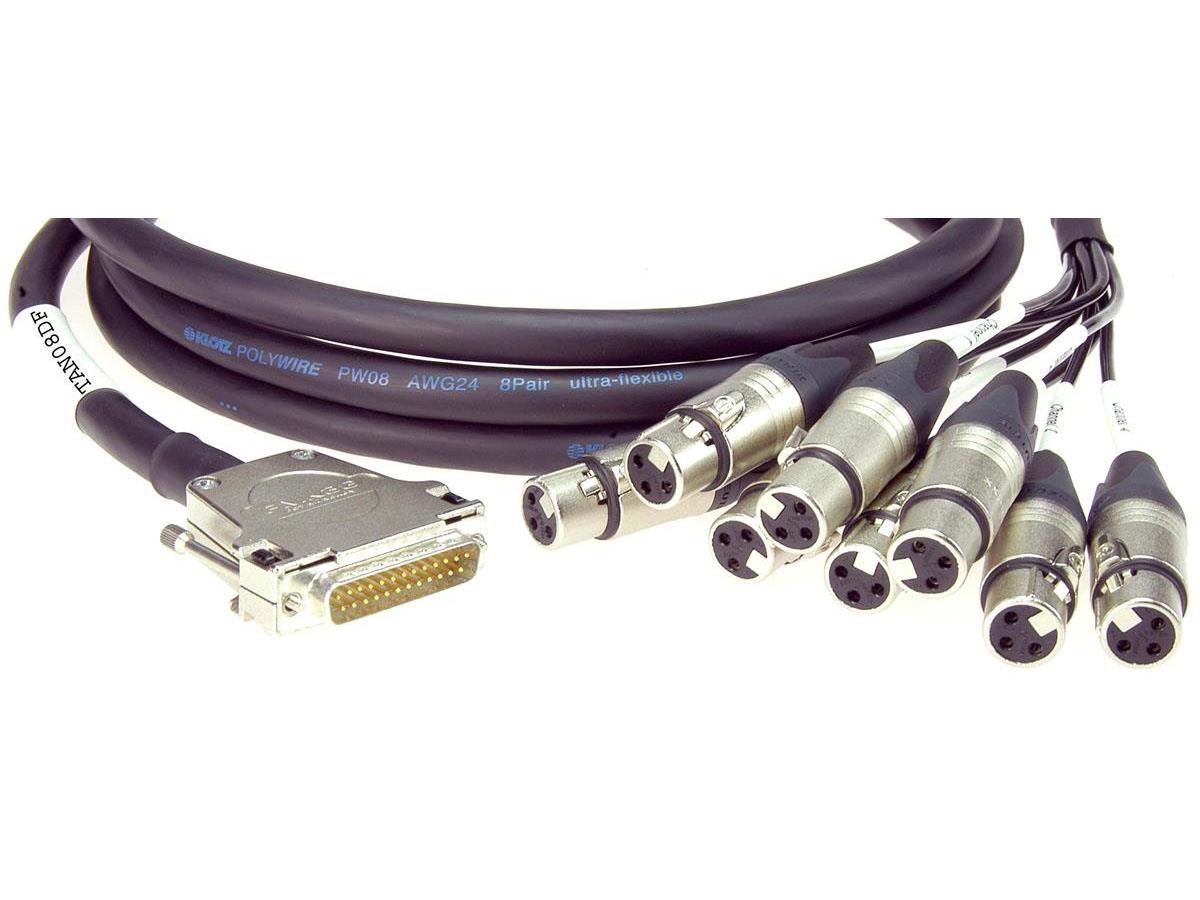

The 25-pin D-Sub connector (Male) has standard analogue TASCAM™ DA88 configuration and can also be used with YAMAHA, Mackie, Digidesign and Focusrite products. The pigtails of the individual conductors are made up with Neutrik XLR (female) connectors and enclosed in an extra-strong self-extinguishing woven sleeve. The outer jacket has a transparent shrink sleeve at both ends for labelling as required.

• suitable for TASCAM™, MACKIE, YAMAHA, FOCUSRITE...
• PW..X, Ø 0.22 mm², high flexible studio multicore, XLPE insulation (cross-linked PE)
• D-Sub 25p. male, metal shell
• XLR - sparkling bronze metallic shell, silver-plated pins
• pinout according to AES59 standard
• additional screws M 2.5 for YAMAHA (Europa)
