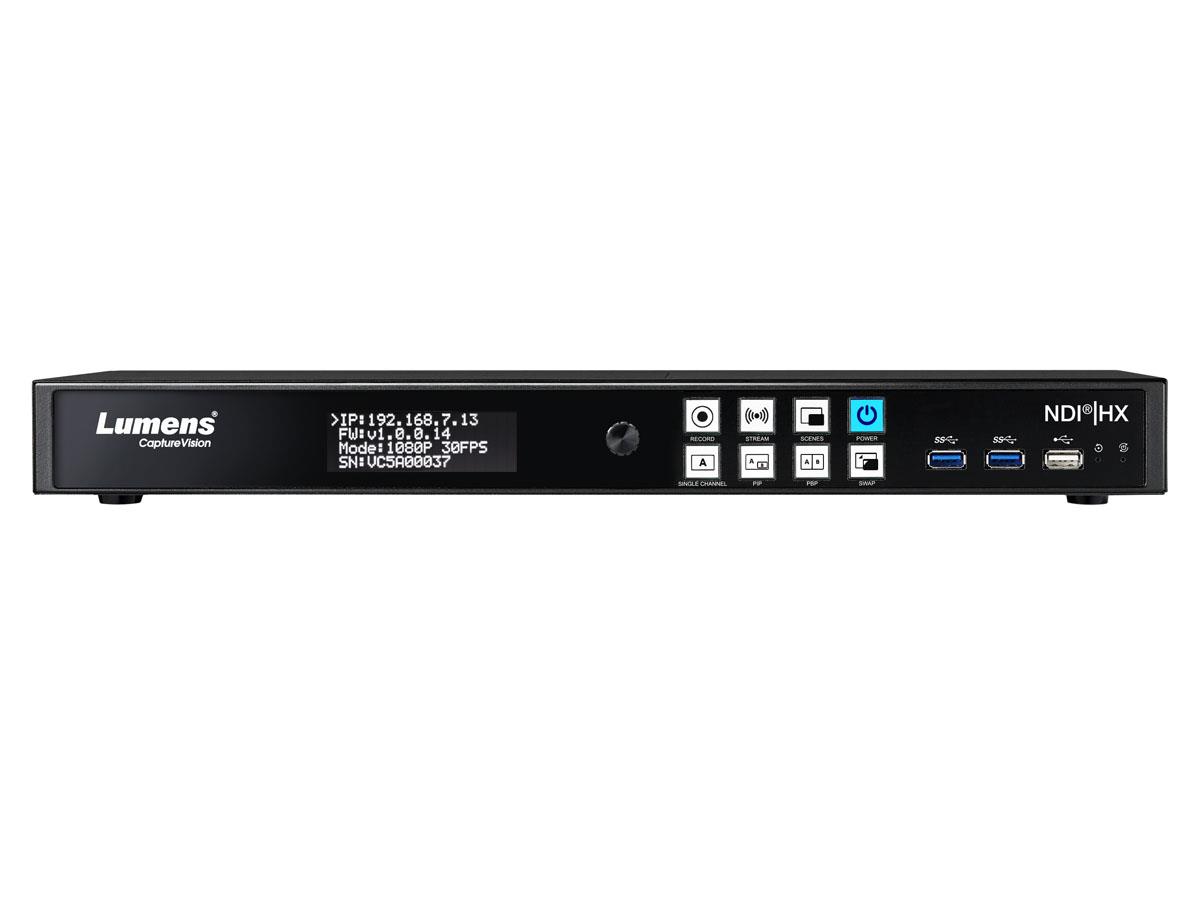

LC100N - CaptureVision System
2-Channel Recorder and Streaming
Media Processor with HD NDI HX support

  • 2-Channel Media Processing
  • Simultaneous Recording, Live Production and Streaming
  • NDI HX2, HDMI, SDI, RTSP and USB inputs
  • XLR Audio with phantom power
  • Built-in 2TB HDD storage
  • Supports for NAS and FTP storage

NDI|HX Support
LC100N can receive multiple 1080p NDI®|HX streams, enabling plug-and-play network production. The device can also convert HDMI, SDI, and USB sources to NDI®|HX, allowing the unit to be used as an IP encoder.

Onboard GUI Director
Live control is incorporated into the device. Connect an HDMI screen to the LC100N to access the intuitive GUI. Plugging in a mouse and keyboard turns the device into a live production switcher.

Live Pre-defined Scenes for Switching
Build layout scenes that help you communicate, such as split screen video, picture-in-picture, title/logo overlays, and background images. Activate and change layouts with the click of a mouse.

Program & ISO Recording
The LC100N records the mixed program-out video and captures two video inputs with independent audio. This simplifies media archiving and post-production.



Allmänt

Modell
LC100N
Utök. text för namn
2ch Recorder and Streaming Media Processor with NDI HX support

Bildspecifikation

Upplösning
1920x1080 Out

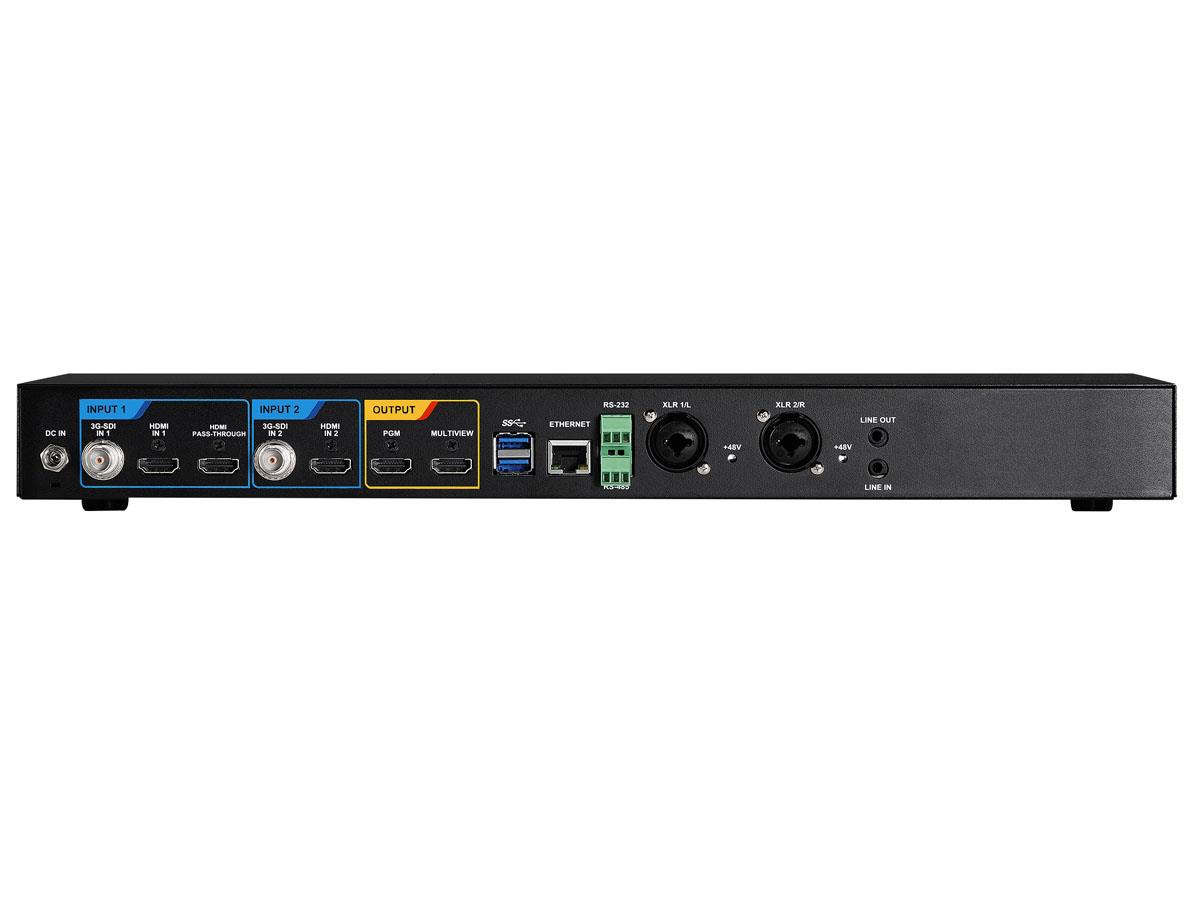

Anslutningar

Bildanslutning in
3G-SDI x2
Bildanslutning in
HDMI x2
Bildanslutning in
IP stream (RJ-45), NDI (RJ-45), USB-A

Energi

Strömförsörjning
DC In , 12V / 3A, Max consumption 30W

Mått och vikt

Bredd
432 mm
Djup
218 mm
Höjd
49,4 mm
Nettovikt
2,4 kg

Övrigt

Montering
19" Rack, 1U
Medföljande Tillbehör
Power adapter, power cord, QSG, RS-232/RS-485 connector (x2), Mounting metal plate (x2), Mounting screews (M3 x 6 x 4), Cable holders
Garanti
5 år
