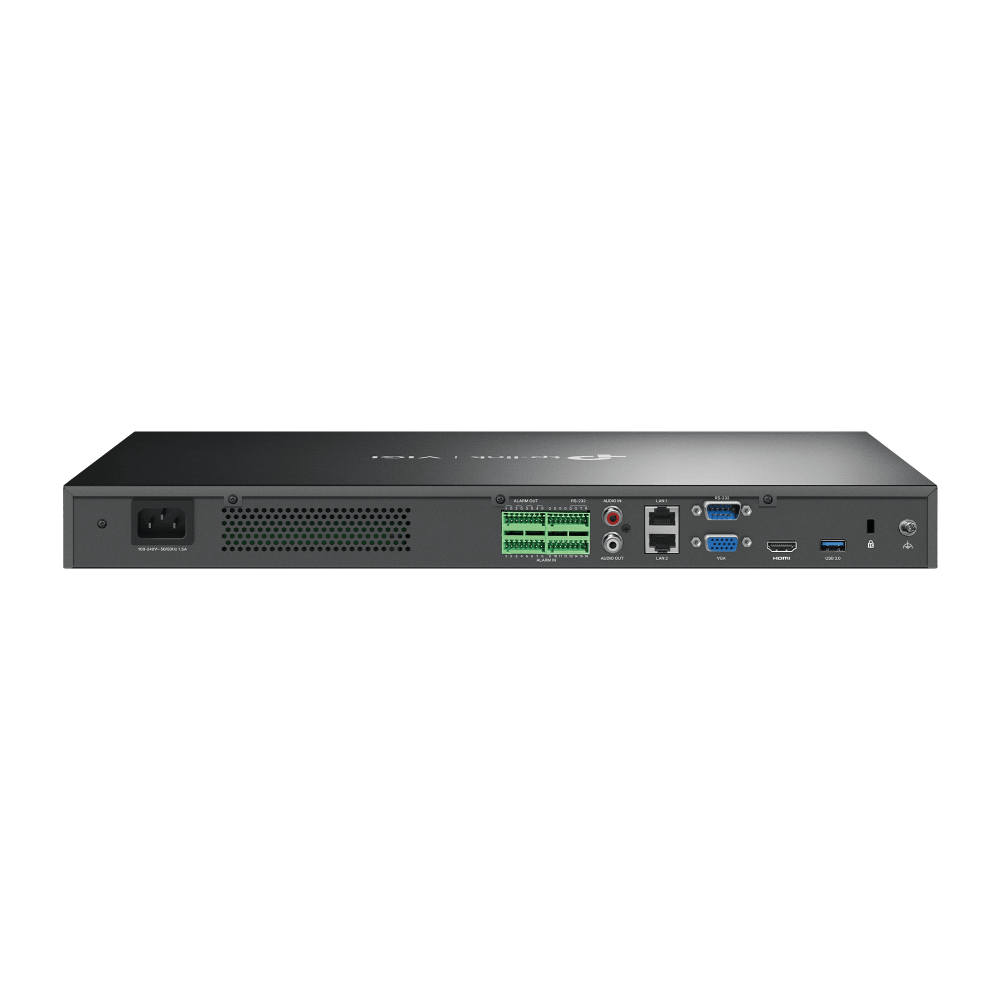

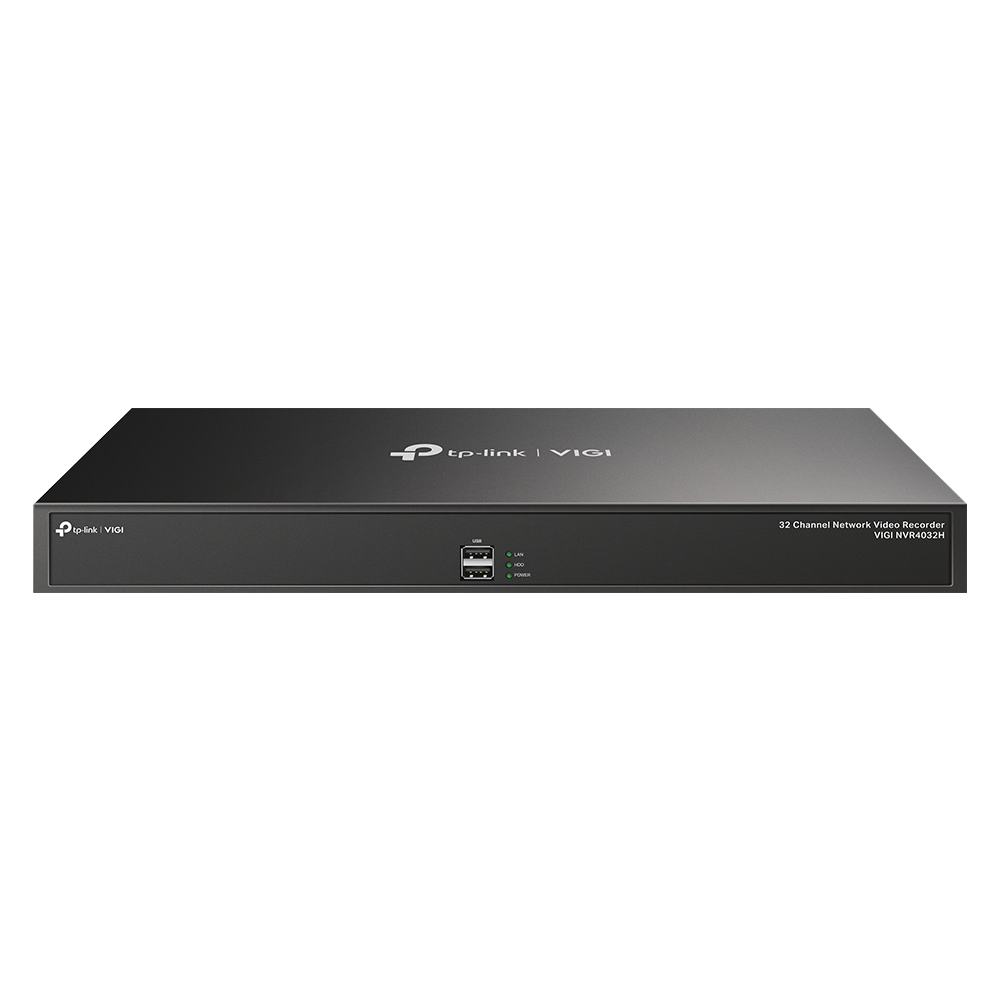

VIGI 32 Channel Network Video Recorder VIGI NVR4032H
- 32-Channel Live View and 4K HDMI Video Output
- Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
- 16-Channel Synchronous Playback†
- 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
- 4× SATA Interfaces and 1 Up to 16 TB*
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
†The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 32MP.
*HDD is not included.
‡This model currently supports ONVIF Profile S.
§Due to the weight of this model, it is recommended to use a tray when mounting the rack with angle iron. Please note that the tray is not included.
Prestanda
- IP Videoingångskanaler
- 32 Kanaler
- In/Ut bandbredd
- 320 Mbit/s
Lagring
- Lagringstyp
- SATA
- Lagringsutrymme
- 16 TB Up to 16 TB Capacity for Each HDD*
- HDD Diskplatser
- 4 st.
- HDD installerade
- Nej
Anslutningar
- HDMI
- Ja HDMI/VGA Independent Output
- USB-portar
- Ja 2x Front USB 2.0 Ports, 1x Rear USB 3.0 Port
Kommunikation
- Antal LAN (RJ-45) anslutningar
- 2 st. RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
Energi
- Strömförsörjning
- 100-240 VAC, 50 to 60HZ, 1.5A
- Förbrukning Typisk
- 5 W (Without Disk)
- Förbrukning Max
- 48 W (With Disk)
Förpackningsinfo
- Förpackningsstorlek
- 528 x 440 x 100 mm
- Förpackningsvikt
- 5,22 kg
Förpackningsinfo (2 st)
- Förpackningsstorlek
- 555 x 460 x 225 mm
- Förpackningsvikt
- 11,00 kg
