LED Controller

  • 4x Gigabit Ethernet outputs, capable of loading up to 2,600,000 pixels
  • White balance calibration and color gamut mapping based on different features of LEDs used by screens, to ensure the reproduction of true colors
  • New engine adopted, enabling exquisite image display with a good sense of depth, without flickering and scanning lines
  • Adjustable PIP position and size, free control at will
  • Seamless high-speed switching and fade effect supported, to present professional-quality images
  • New-generation pixel level calibration technology adopted, ensuring a fast and efficient calibration process
  • Independent external audio output supported
  • High bit-depth video input: 10-bit and 8-bit


Allmänt

Modell
DS-D42V04-N
Applikation
LED Controller

Bildspecifikation

Upplösning
3840x2160

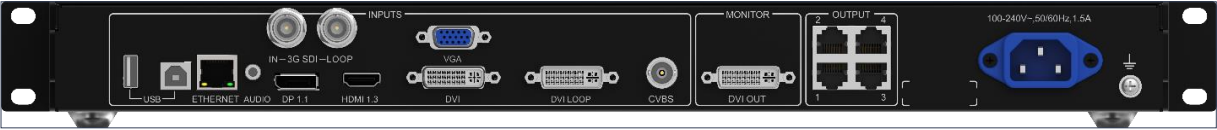

Anslutningar

Bildanslutning in
3G-SDI, DisplayPort, DVI-D, HDMI, VGA
Bildanslutning ut
3G-SDI Loop out
Bildanslutning ut
DVI-D Loop out
Bildanslutning ut
HDMI Loop out
Bildanslutning ut
IP stream (RJ-45) x4 Gigabit Ethernet outputs, capable of loading up to 2,600,000 pixels
Ljudanslutning in
3,5mm tele

Funktioner

Styrning
DIP-Switch

Energi

Strömförsörjning
100-240V,1.6A,50/60Hz

Mått och vikt

Bredd
483,6 mm
Djup
301,2 mm
Höjd
50,1 mm
Nettovikt
4 kg

Övrigt

Medföljande Tillbehör
1×DS-D42V04-N,1×Power Cable,1×USB Cable,1×HDMItoDVI Cable,1×HDMI Cable,1×Ethernet Cable

Förpackningsinfo

Förpackningsstorlek
577 x 180 x 40 mm
Förpackningsvikt
6,50 kg
