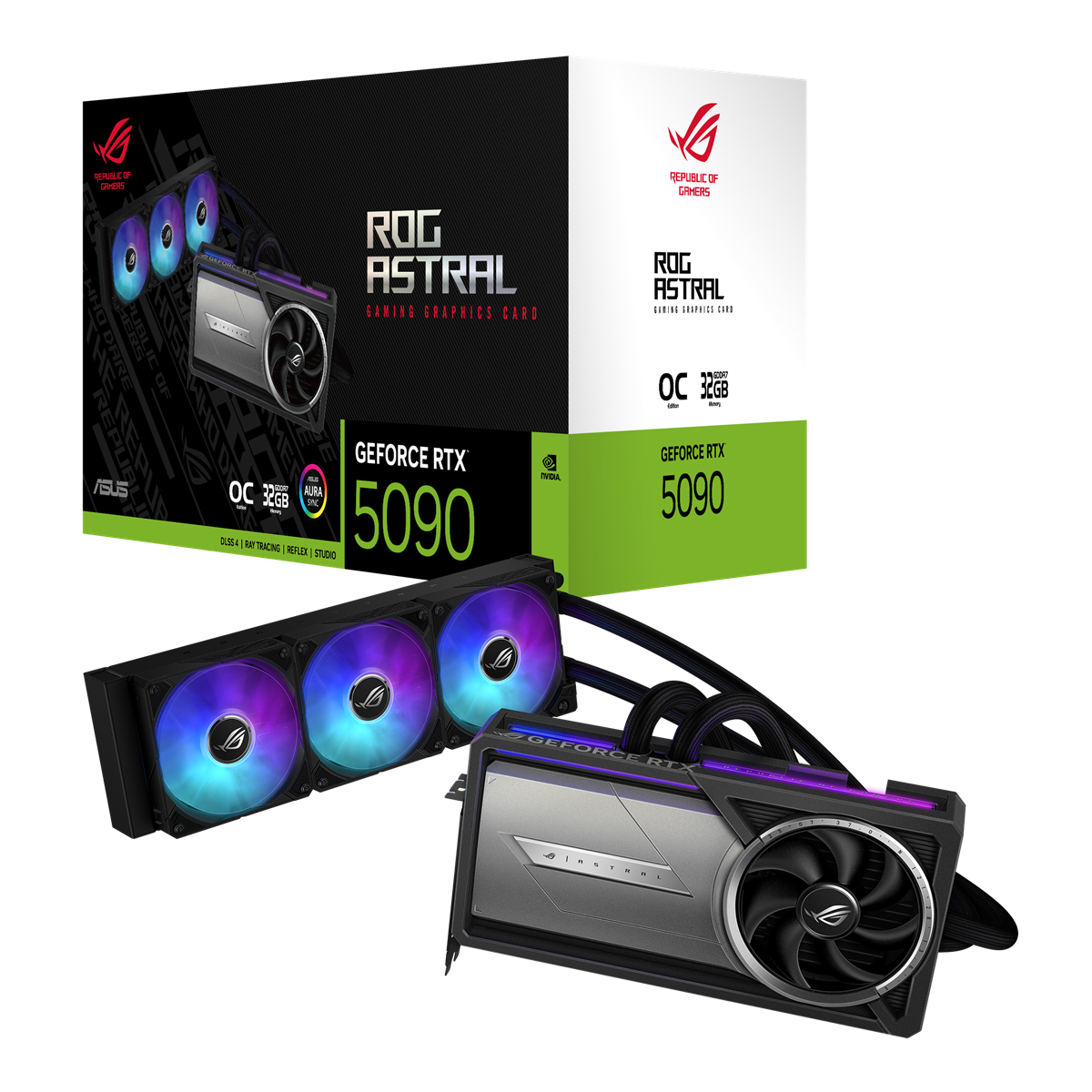

ROG Astral LC GeForce RTX™ 5090
Fluid Force

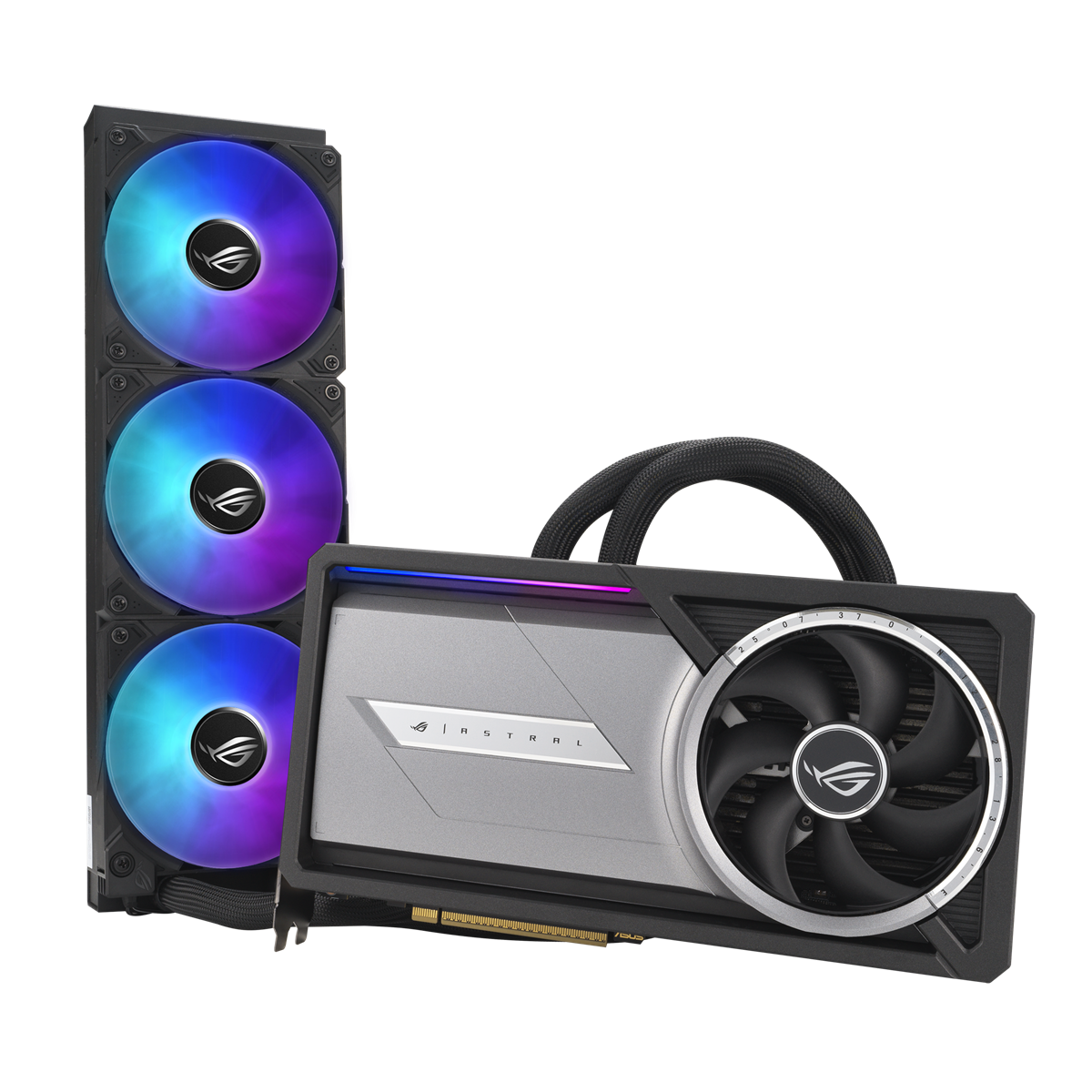

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. The ROG Astral LC GeForce RTX 5090 delivers pinnacle cooling performance via a premium 360mm AIO cooler, full-coverage copper plate and integrated fan. Meanwhile, powerful 80-amp MOSFETs deliver high overclocking potential while maintaining quiet operation.
Cooling Expertise
360mm Radiator
An extra-thick 360x38mm radiator combines forces with a trio of high-end fans to ensure excellent heat dissipation.
Full-Coverage Cold Plate
The full-coverage cold plate covers all the heat-generating components on the PCB, empowering the radiator to efficiently cool the graphics card, resulting in up to 30% better performance versus pure air cooling.
On-Board Cooling
Heat produced by power-delivery components is dispelled by an axial-tech fan and a low-profile heatsink under the shroud. This combination exhausts hot air quietly and efficiently.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Premium Power Delivery
Powerful 80-amp MOSFETs deliver over 35% more headroom than the standard design. This helps ensure enhanced performance, stability and higher overclocking potential.
ASUS GPU Guard & Bracket
To handle larger graphics processors, ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Allmänt
- Tillverkare
- NVIDIA
- Modell
- GeForce RTX 5090
- GPU frekvens
- 2 610 MHz
- Streamprocessorer
- 21 760 st.
- Gränssnitt
- PCI Express 5.0
Minne
- Minnesmängd
- 32 GB
- Minnestyp
- GDDR7
- Minnesbuss
- 512 Bit
- Minnesbandbredd
- 28 GHz
Anslutningar
- HDMI
- Ja
- DisplayPort
- Ja
- USB typ-C
- Nej
- DVI
- Nej
- VGA
- Nej
Ström
- Rekommenderad PSU
- 1 000 W
Mått och vikt
- Expansionsplatser
- 2,5 st.
- Bredd
- 288,46 mm
- Höjd
- 153,7 mm
- Längd
- 48 mm
Förpackningsinfo
- Förpackningsstorlek
- 263 x 469 x 241 mm
- Förpackningsvikt
- 5,95 kg
