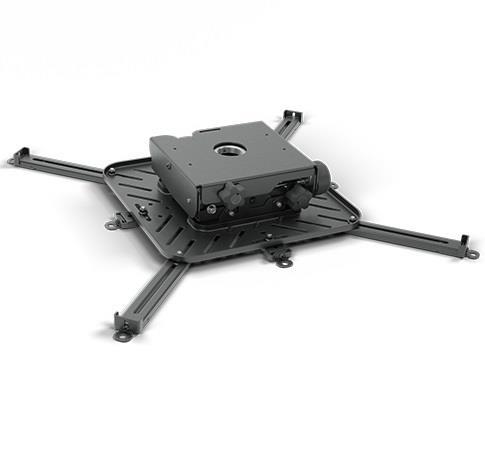

The VCTUB XL Universal Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 – 68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.
Includes the HCUB Universal Interface.
Key Features
- Low Profile
- The new VCT is 30% slimmer than the VCM mount
- Lightweight
- The new VCT is 25% lighter than the VCM mount
- Sleek Aesthetic
- Matching knobs & hardware
- Available in black and white finish options
- Tool-free MicroZone+ Pitch Adjustment
- The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment
- Can be hand adjusted using the tool-free knob or driven with a 1/2” (13mm) socket
- PrecisionSet™ technology to lock in pitch adjustments
- Tool-free MicroZone™ Roll & Yaw Adjustments

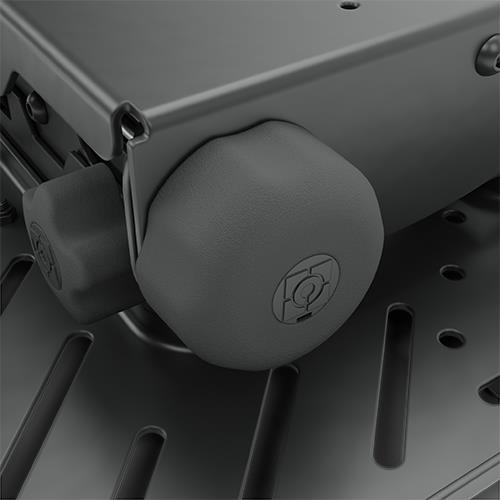

- Gear driven tool-free knob adjustments
- Lockout nuts enable additional image lock security
- New Universal Interface
- Universal plate is sized to accommodate most patterns within footprint
- Short attachment legs reduce clutter for smaller projector installation patterns
- Long attachment legs extend reach for larger projector installation patterns Custom interfaces also available
Allmänt
- Färg
- Svart
- Pelarinfästning
- NPT Gängad
Funktioner
- Tiltbart
- Ja +/-20°
- Vridbart/Pan
- Ja +/-360°
- Roterbart/Pivot
- Ja +/-5°
- Låsbart
- Nej Lockout nuts enable additional image lock security
Mått och vikt
- Max belastning
- 68 kg
Övrigt
- Garanti
- 10 år
Förpackningsinfo
- Förpackningsstorlek
- 730 x 480 x 178 mm
- Förpackningsvikt
- 14,10 kg
