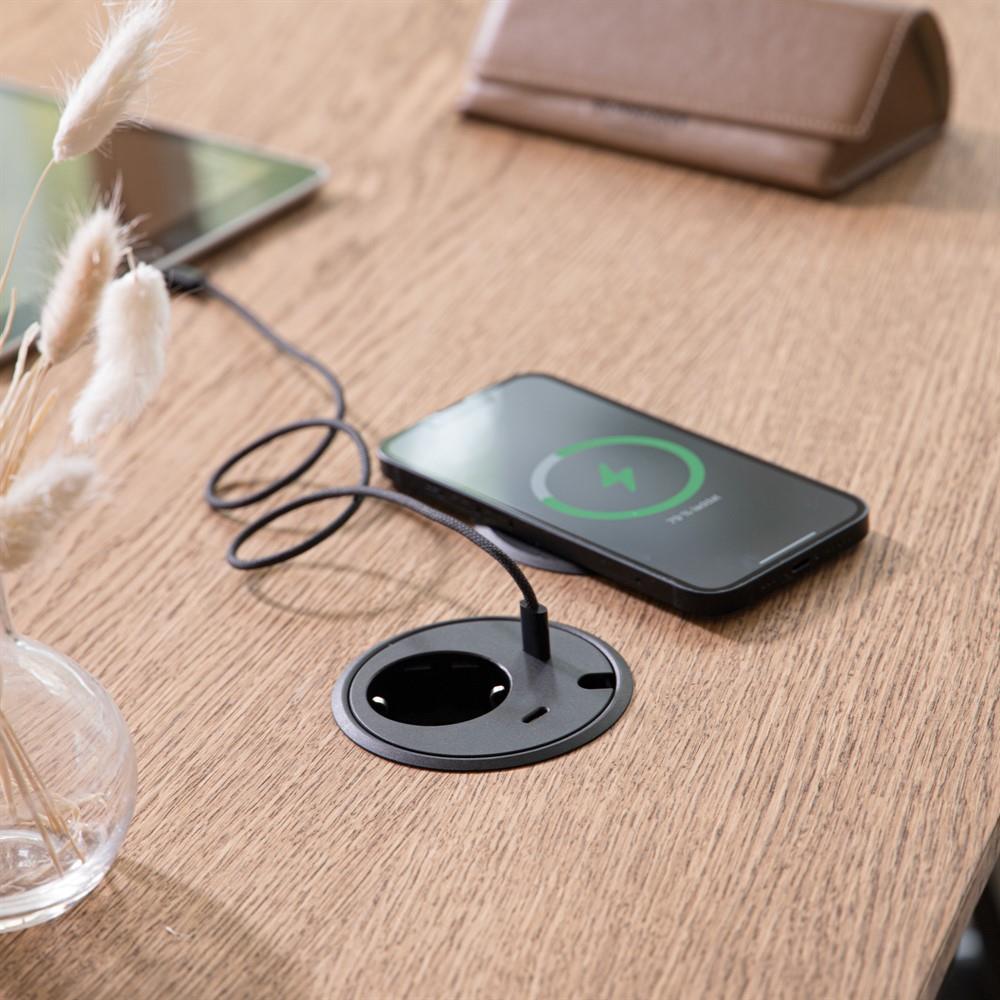

With the Powerdot you have access to electricity, data and media in a stylish and simple way everywhere. When you need it, where you need it. Powerdot ties the room together with stylish charging in expected – and unexpected – places. The possibilities are endless. You decide where and how you want to be connected.

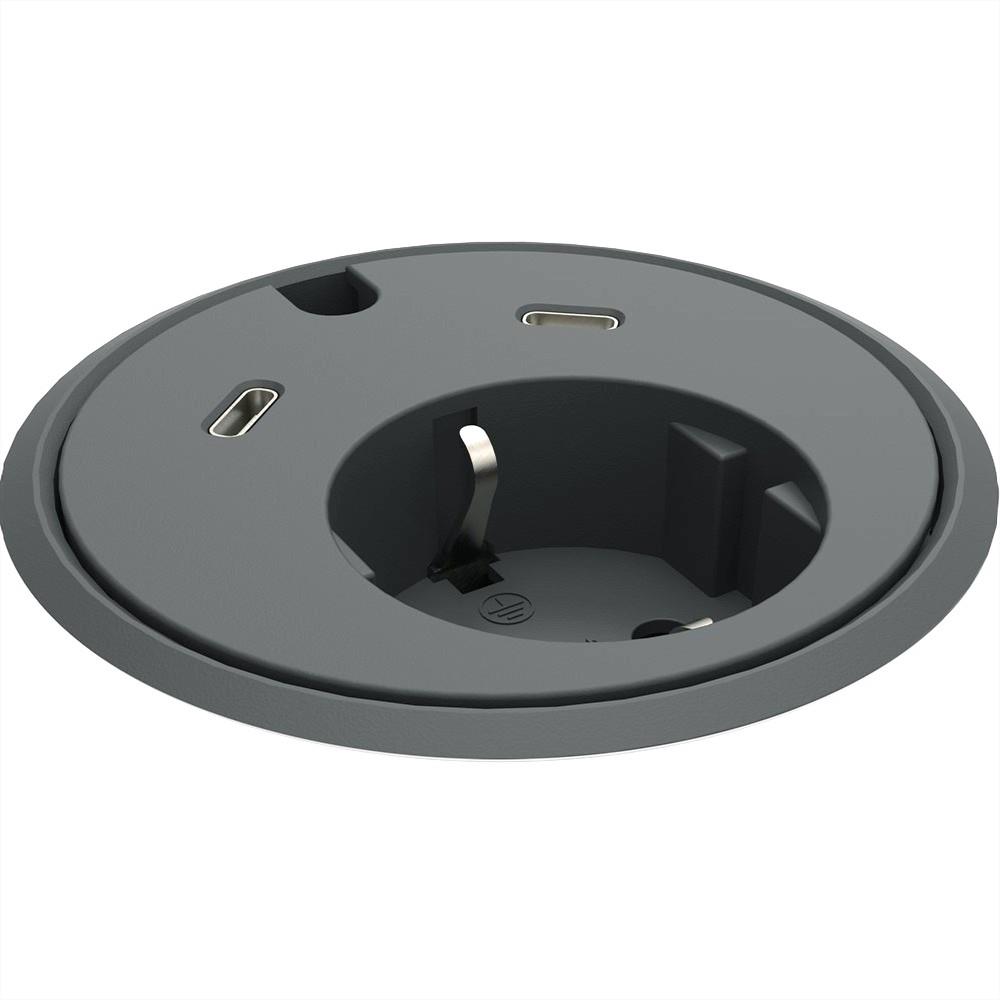

The Powerdot 17 provides two USB-C charging ports (2 x 30W) and features a convenient side hole for routing cables such as USB-C connections, network Cables or display cables. It is easily mounted through the table top in a 79 mm hole and is easily and securely screwed into place with a threaded ring under the top, without the need for an electrician.
Note! Do not forget to add an USB-C charger or Portreplicator to your system. See "Accessories" below.
Specifications
• Rated voltage: 250V
• Rated current: 16A
• Max load: 3500W
• Colour: Matte black/matte white
• 1 x power, 2 x USB-C chargers (2 x 30W), 1 x Ø8 mm cable hole
• Electrical connection: Type F/grounded 1.25 m (3x1.5 mm²)
• Drilling diameter: 79 mm
• Total height: 75 mm
• Max tabletop thickness: 30 mm
Accessories
Frames & covers, 105x105 mm, Silver/White/Black
Allmänt
- Applikation
- Bord, infälld plant
- Modulär
- Nej
Anslutningar
- HDMI
- Nej
- DisplayPort
- Nej
- USB typ-C
- Ja 2x USB-C Charger ports 30W, PD 3.0
- VGA
- Nej
- DVI
- Nej
- Ljud 3,5mm
- Nej
- Balanserat ljud
- Nej
- Ethernet
- Nej
- Kabelgenomföring
- Ja 1 x Ø8 mm feed-through/grommet
- 230V Ström
- 1 st. 250W, 16A. Output max 3500W
Mått och vikt
- Längd
- 105 mm
- Bredd
- 105 mm
- Djup
- 75 mm
- Max tjocklek bordsskiva
- 30 mm
- Längd håltagning
- 79 mm
- Bredd håltagning
- 79 mm
- Kabellängd
- 1,25 m 3x1,5mm2, CEE 7/7 PLUG
Övrigt
- Färg
- Svart
Förpackningsinfo
- Förpackningsstorlek
- 179 x 136 x 116 mm
- Förpackningsvikt
- 504 g
