Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations.

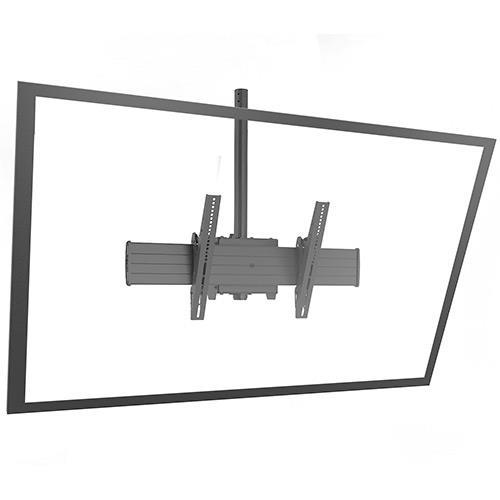

The XCM1U is a single pole drop ceiling mount perfect for XL displays 5" deep and thinner. For deeper and heavier displays, see Chief's XCM7000 for a dual drop solution.
- Ceiling Plate and extension column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.
Key Features
- REPEATABILITY - Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
- ACCESSIBILITY - Simple on/off connection for ease of installation and service.
- CENTRIS® FINGERTIP TILT - Effortlessly adjust display using Centris fingertip tilt technology.
- SIMPLE & SECURE - Tool free screen engagement with optional padlock security.
- FLEXIBILITY - Mount swivels to any preferred viewing angle.
Allmänt
- Antal displayer
- 1 st.
- Applikation
- Tak
- Färg
- Svart
- Display orientering
- Landskap
- Videovägg
- Nej
Funktioner
- Pelartyp
- Pelare ingår ej
- Höjdjusterbart
- Ja
- Tiltbart
- Ja +5°/ -20°
- Vridbart/Pan
- Ja
- Roterbart/Pivot
- Ja +/-3°
- Motoriserat
- Nej
- Låsbart
- Ja Med hänglås (option)
Mått och vikt
- Max belastning (per skärm)
- 113,4 kg
- VESA hålbild (mm)
- 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400, 700x100, 700x200, 700x300, 700x400, 800x100, 800x200, 800x300, 800x400
Övrigt
- Garanti
- 10 år
Förpackningsinfo
- Förpackningsstorlek
- 1 290 x 295 x 185 mm
- Förpackningsvikt
- 14,15 kg
