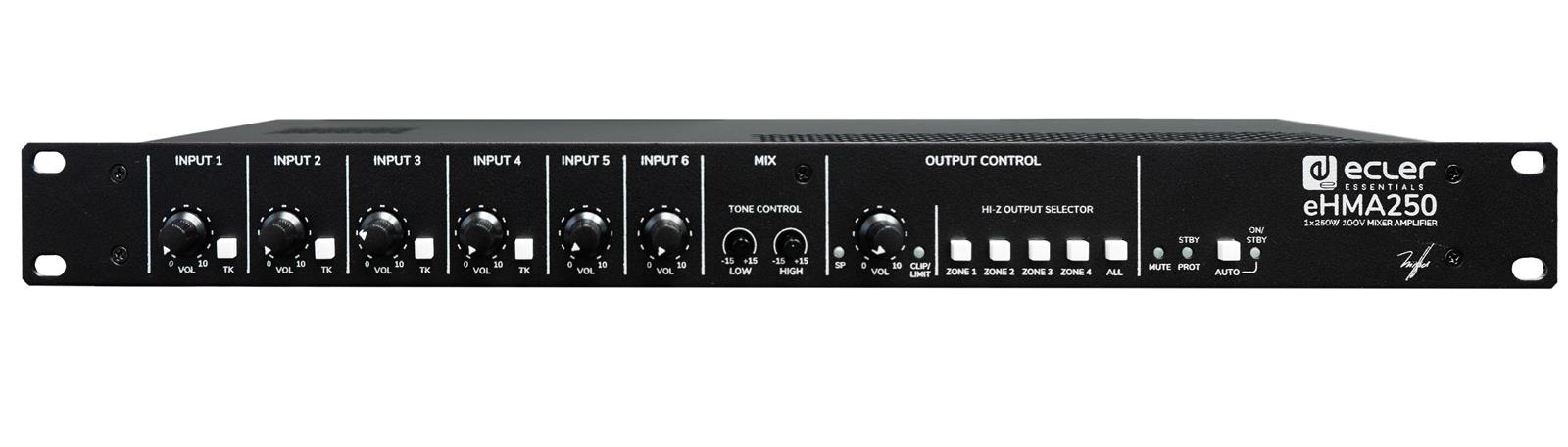

Ecler eHMA250 | 6 input, 4 zone (on/off) | 1x250W @ 70V/100V or 1 x 250W @ 4/8ohm

eHMA250 is a self-powered audio mixer including 2 MIC inputs, 2 MIC/LINE ST inputs, 2 LINE ST inputs and one AUX/REC output. Supports both low (4 and 8Ω) and high impedance (50, 70 and 100V) loudspeaker lines, with independent 4-ZONE ON/OFF switches (ZONE 1, ZONE 2, ZONE 3 and ZONE 4), besides a low impedance output and an auxiliary output. It also includes an audio priority system (voice messages, emergencies, etc.) available in 4 inputs and embedded Chime function (compatible with 1 zone paging microphones), 2 band tone control, auto stand-by mode, MUTE port and Remote port (RJ45) for remote volume control, compatible with Ecler WPaVOL.

Features:

1 x 250W @ 4Ω / 8Ω / 50V / 70V / 100V (Load selector)
4 x ZONE ON/OFF selection switches
2 MIC inputs, including Talkover function (priority)
2 MIC / LINE inputs, including Talkover function (priority)
2 ST LINE input
Embedded Chime tone, via dry contact closure
2-band EQ (BASS/TREBLE) for Mix Output
Remote port for volume control (WPa series compatible)
Auto Stand-by function
Remote control port (compatible with WPa series wall panels)
15VDC Phantom Power (external switch)
MUTE port to remotely mute the unit from an external device, via dry contact closure

Applications:
Retail Corporate Leisure Sports & Wellness Hospitality

Allmänt

Förstärkartyp: Mixerförstärkare

Ljudspecifikation

Förstärkarkanaler: 1
Effekt/kanal (4/8 Ohm): 250 W @ 4/8Ω
Effekt/kanal (70/100V): 250 W @ 70/100Ω
Inbyggd DSP: Nej

Anslutningar

Ljudanslutning in: Euroblock lågnivå, RCA
Ljudanslutning ut: Euroblock högt. kabel
Bluetooth: Nej
Ethernet: Nej
WiFi: Nej
Styrning: Contact closure for External MUTE
Styrning: Frontpanel
Styrning: GPI/O GPI (0-10VDC) for volume control

Energi

Strömförsörjning: Built in power supply 100-240 V @ 50-60Hz AC socket connector (IEC)
Förbrukning Stand-by: 8 W
Auto Standby funktion: Ja

Mått och vikt

Bredd: 435 mm
Djup: 220 mm
Höjd: 44 mm
Nettovikt: 3 kg

Övrigt

Montering: 19" Rack, 1U
Medföljande Tillbehör
Garanti: 5 år

Förpackningsinfo

Förpackningsstorlek: 580 x 390 x 70 mm
Förpackningsvikt: 4,30 kg
