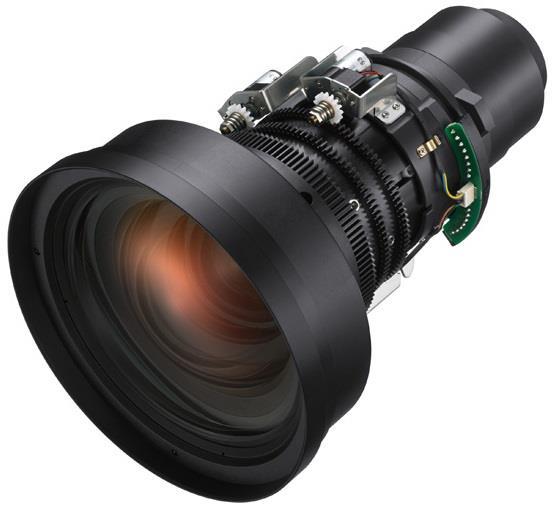

Projection Lens for the VPL-F Series with a throw ratio of 1.0-1.39:1*
Throw ratio 1.0:1 to 1.39:1
Zoom / FocusPowered / Powered
Lens shift:
Vertical: Upward 60% to Downward 5%
Horizontal: Right 29% to Left 29%Aperturef/1.75 to 2.1
Approximate figure for current models
Allmänt
- Lins Typ
- Short
- Zoomtyp
- Motoriserad Zoom
Optik
- Throw Ratio från
- 1,0
- Throw Ratio till
- 1,39
- Lens shift
- Ja Vertical: Upward 60% to Downward 5%, Horizontal: Right 29% to Left 29%
- Bilddiagonal min
- 60 "
- Bilddiagonal max
- 300 "

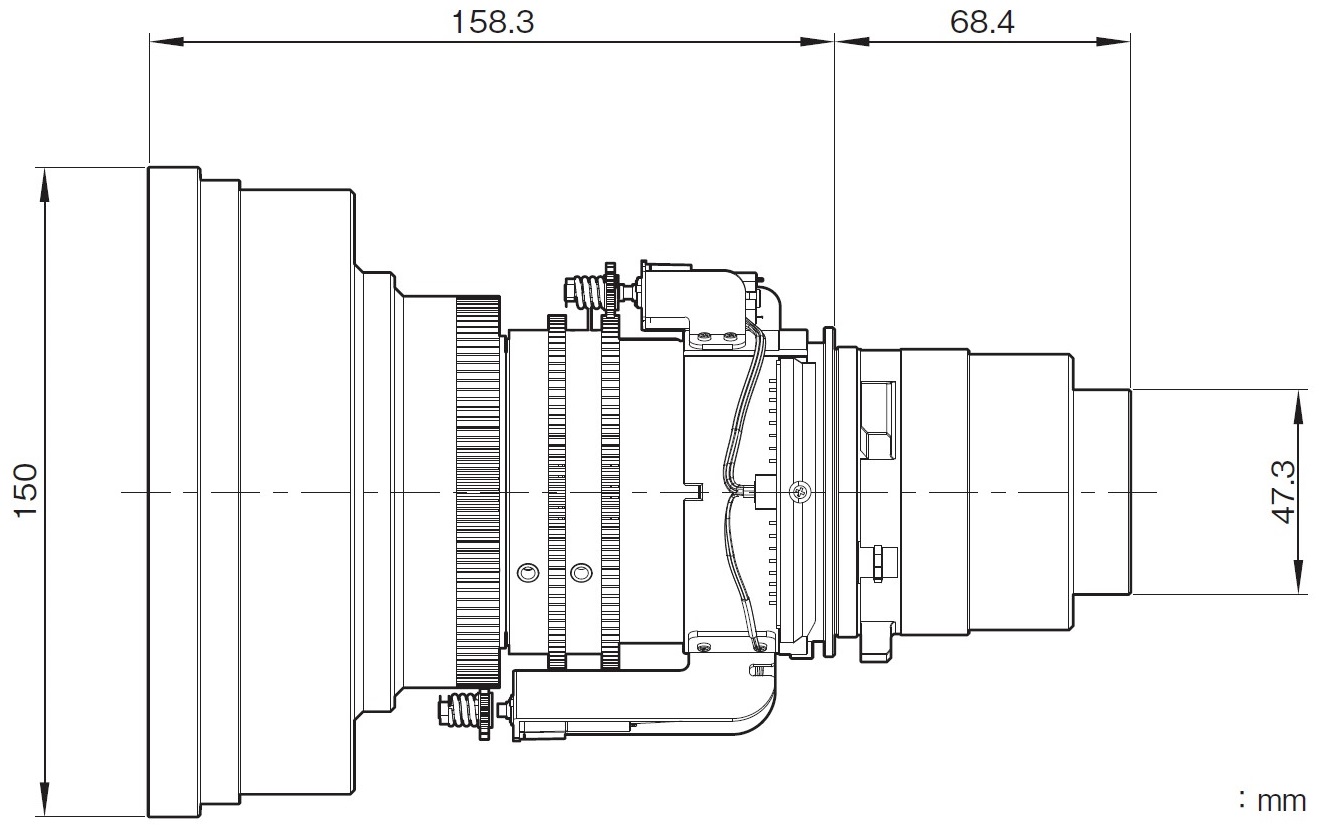

Mått och vikt
- Bredd
- 150 mm
- Djup
- 227 mm
- Höjd
- 150 mm
- Nettovikt
- 2 kg
Förpackningsinfo
- Förpackningsstorlek
- 349 x 249 x 240 mm
- Förpackningsvikt
- 2,73 kg
