OPS slot-in PC (Intel® Core i5) for meeting room applications
Description
OPS Computing Module Enterprise Pro (Core i5)
The Enterprise computing modules are designed to meet the requirements of demanding corporate meeting room applications - best for interactive displays and collaborative use cases.
Benefits
- High performance - using the Core™ i5 CPU with 8GB dual channel DDR4 RAM, you can run multiple operations and applications at the same time; powering the next generation of embedded computing.
- General purpose use - with its Microsoft Windows 11 Professional pre-installed operating system you can run and install any of your software applications.

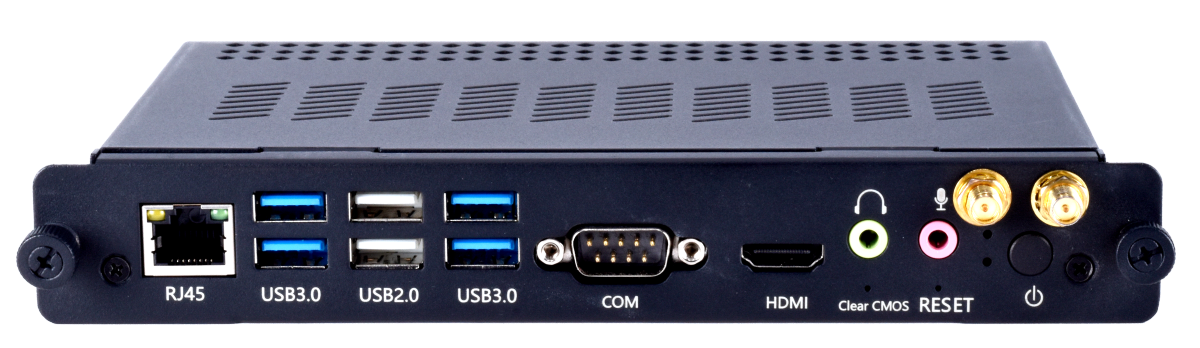

- High usage flexibility - thanks to wide connectivity such as 6 x USB, HDMI, Gigabit Ethernet, RS-232 and Audio by, there’s no need to add additional adapters or signal splitters.
- Seamless and fully embedded - the OPS form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video and audio signals and RS-232.
- 100% compatibility and enhanced feature-set - in combination with supported NEC and Sharp large format displays.
General
- Operating System
- Windows 11 Professional x64bit
Prosessor
- CPU modell
- Intel® Core™ i5-1135G7
- Processorhastighet
- 2,4 GHz
- Number of cores
- 4 pcs.
- Number of threads
- 8 pcs.
Memory
- Memory
- 8 GB
- Memory Type
- dual channel DDR4
Graphics
- GPU Modell
- Intel® Iris® Xe Graphics
- GPU hastighet
- 1,3 GHz
Storage
- Storage type
- M.2 SSD (SATA)
- Storage size
- 128 GB
Connections
- HDMI
- Ja
- DisplayPort
- Nei
- USB type-A
- Ja 4x 3.0, 2x 2.0
- USB type-C
- Nei
Communication
- Ethernet
- Ja
- WiFi
- Ja
- Bluetooth
- Nei
Energy
- Consumption Stand-by
- 8,5 W
- Consumption Max
- 70 W
Størrelse & Vekt
- Width
- 180 mm
- Dypde
- 118 mm
- Høyde
- 30 mm
- Net weight
- 0,8 kg
Additional Information
- Warranty
- 3 år
Pakkeinformasjon
- Pakkestørrelse
- 200 x 60 x 260 mm
- Pakkevekt
- 963 g
