The ACE Plus (DE3650-C) is a fanless, small, and ruggedized media player with a 2-screen output and 4K@60Hz content playback. It has an Intel® Celeron® CPU and Intel® UHD graphics. The fanless design prevents dust from building up in the device, decreasing maintenance.
UHD (4k) content playback
DE3650-C is capable of driving 2x UHD (4k) content. With a resolution that goes up to 3840x2160 pixels, your content will be close to perfect. This feature makes the players that are capable of delivering content that is fluent and stutter-free in UHD (4k).
-20°C operating temperature
AOPEN has good experience in mechanism and electronic design. It has designed a good body temperature control for DE3650-C. The equipment can operate normally even at a low temperature of minus 20°C. It is suitable for industrial or outdoor applications that require low temperatures.
Fanless design
With fanless design, the device is passively cooling and is dustproof. Therefore, it's very suitable for segments such as industry.
Small form factor
This form factor ensures easy integration into kiosks or behind screens. The AOPEN small form factor is a standard that is used for Digital Engine (DE) models. The size of DE3650-C is 166x35x110 mm. the mounting hole of the bracket is just the same as the DE series.
Trusted Platform Module 2.0
The TPM is a dedicated microcontroller, designed to secure hardware through integrated cryptographic keys. This means the data on your hard drive will be encrypted to ensure your data is safe, even when your device gets stolen.
General
- Operating System
- Win 10 IoT
Prosessor
- CPU modell
- Intel Celeron Dual Core N6210
- Processorhastighet
- 2,6 GHz Burst Frequency, 1,20 GHz Base Frequency
- Number of cores
- 2 pcs.
- Number of threads
- 2 pcs.
Memory
- Memory
- 4 GB
- Memory Type
- DDR4 SO DOMM
- Max Memory Supported
- 20 GB
- Memory slots
- 2 pcs.
Graphics
- GPU Modell
- Intel® UHD Graphic for 10 th Gen Processors
- Display Connections
- 2 pcs.
Storage
- Storage type
- EMMC
- Storage size
- 64 GB

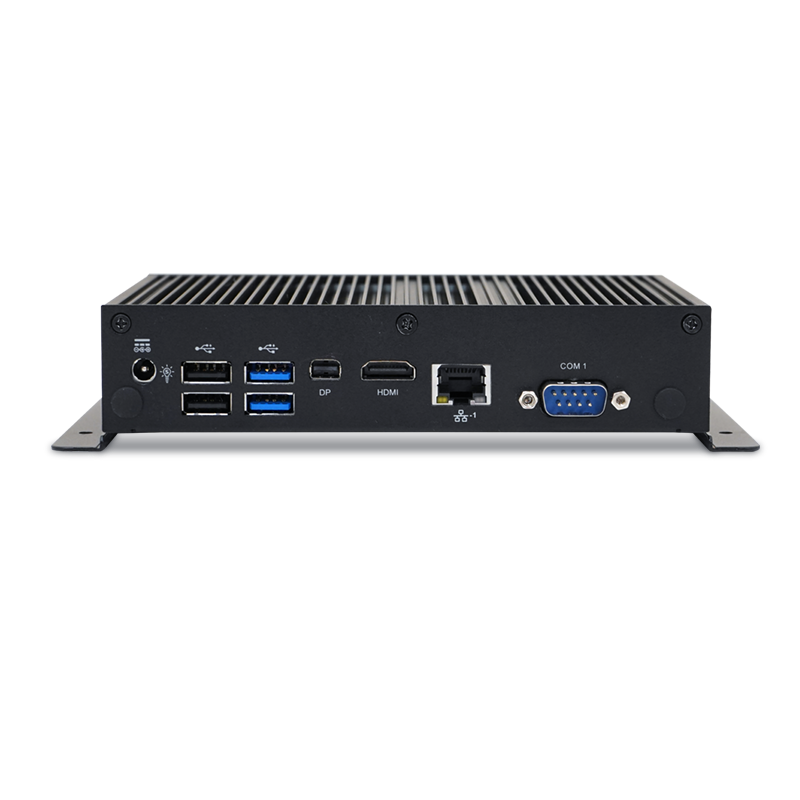

Connections
- HDMI
- Ja 1x (3840x2106@60Hz)
- DisplayPort
- Ja 1x Mini DP (4096x2160@60Hz)
- USB type-A
- Ja 6x
- USB type-C
- Nei
Communication
- Ethernet
- Ja 1x 10 / 100 / 1000 Mbps
Energy
- Power Supply
- AC 100 ~ 240V, 40W Adapter
Størrelse & Vekt
- Width
- 166 mm
- Dypde
- 110 mm
- Høyde
- 35 mm
- Net weight
- 1,1 kg
Additional Information
- Warranty
- 1 år
Pakkeinformasjon
- Pakkestørrelse
- 281 x 218 x 96 mm
- Pakkevekt
- 1,27 kg
