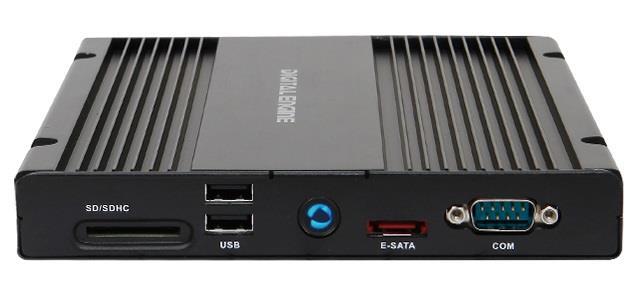

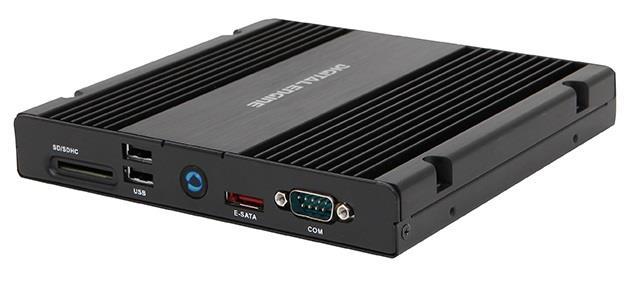

The DE3250 is a robust media player designed to cope with rugged, tough environments or moving vehicles. Its ultra-thin structure allows you to integrate the Digital Engine DE3250 seamlessly into any space. The solid-state disk and fanless design of the DE3250 ensures a first rate performance in any challenging situation.
Key Features:
· An ultra-thin (25 mm) form factor that allows flexible integration opportunities
· Handles vibrations, shocks and fluctuating tempratures with ease, due to its fanless design and solid-state disk (SSD)
· The DE3250 is built with the Intel® Celeron® quadcore Processor N2930, based on a new low-power, high-performance microarchitecture.
In the box:
1 x DE3250 system
1 x User Guide
1 x Driver CD
1 x 40W Adapter
1 x Power Cord
1 x L type Holder with 4 pcs of M3 screw
1 x DC in jack clamp
Spec:
Intel Bay Trail-M System on Chip(SoC)
N2930 Quad core 1.83GHz turbo to 2.16GHz
Connectors: 2x LAN, 1x eSATA, 1x COM port, 2x USB2.0, 3 x mini Card (2FS,1HH), 1x SIM Slot, 1xAntenna Hole
DC 12/19V, 40W AC Adapter
Dimensions: 166 x 158 x 25 mm
Prosessor
- CPU modell
- Intel Celeron N2930
- Processorhastighet
- 2,16 GHz Burst Frequency, 1.83 GHz Base Frequency
- Number of cores
- 4 pcs.
- Number of threads
- 4 pcs.
Memory
- Memory
- 4 GB 2GB x 2
- Memory Type
- DDRIII L SO-DIMM 1333
- Max Memory Supported
- 8 GB
- Memory slots
- 2 pcs.
Graphics
- GPU Modell
- Intel HD Graphics
- GPU hastighet
- 854 MHz
- Video memory
- 4 GB
- Display Connections
- 2 pcs.
Storage
- Storage type
- mSATA
- Storage size
- 64 GB
Connections
- HDMI
- Ja x2
- DisplayPort
- Nei
- USB type-A
- Ja 2 x USB 2.0
- USB type-C
- Nei
Communication
- Ethernet
- Ja x2
- WiFi
- Nei
- Bluetooth
- Nei
Energy
- Power Supply
- 40W (19V, 2.1A) AC Adapter
Størrelse & Vekt
- Width
- 166 mm
- Dypde
- 158 mm
- Høyde
- 25 mm
- Net weight
- 0,8 kg
Additional Information
- Warranty
- 2 år
Pakkeinformasjon
- Pakkestørrelse
- 257 x 74 x 105 mm
- Pakkevekt
- 1,60 kg
