Diplomat manual

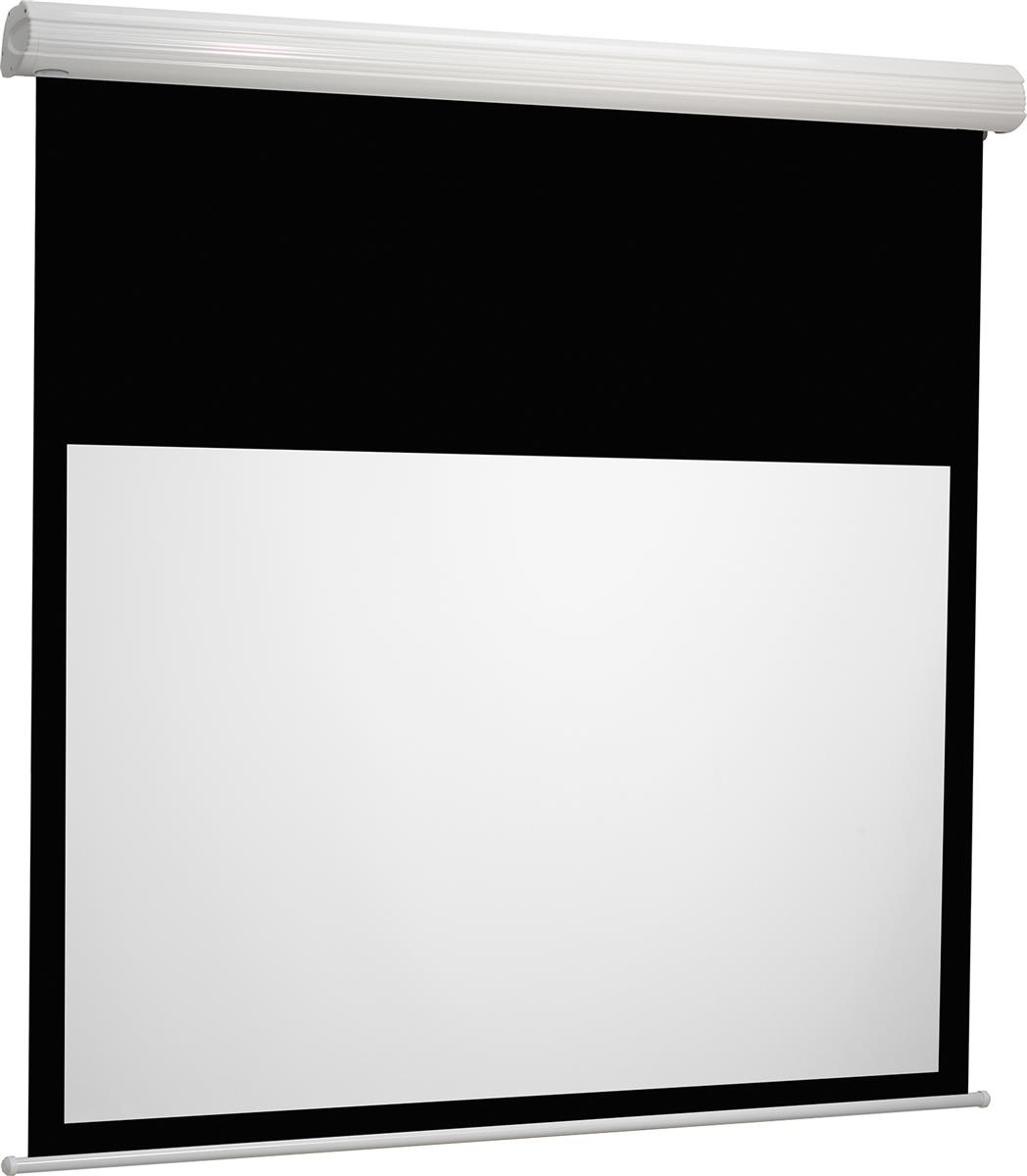

The Diplomat is Euroscreen’s best-selling projection screen with its white aluminium cassette and channel-fixed installation. This makes it one of the market’s most flexible and easy screens to install. Thanks to its functional and comprehensive design the Diplomat is suitable for any environment; conference rooms, education facilities and home theatres.
Key Features:

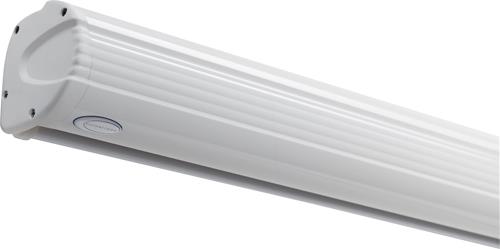

- White cylindrical shaped aluminium cassette
- Functional and comprehensive design
- Channel-fixed and flexible installation
- Suitable for wall or ceiling installation
- Soft&Quiet function available as option
- Case size (W x H): 89 x 105 mm
- Case length: screen width + 86 mm (= 200 cm width)
- Case length: screen width + 94 mm (> 200 cm width)
- Case length: screen width +125 mm
- Bottom dowel from wall: 48 mm
Soft&Quiet
Euroscreen® manual screens is available equipped with a Soft&Quiet feature which is a strong roller mechanism that slowly and carefully raises the screen surface back into the case with a simple tug. Protects the quality of a manual screen.
The Soft&Quiet feature is a reliable and strong roller mechanism that slowly and smoothly retracts the screen surface into the case, slowing even more as it approaches the upper limit. Just a simple tug on the handle
or the pull cord is all that is needed. The Soft&Quiet feature prolongs the life of a manual screen since it
prevents potential damage to the case, its mechanism, and screen surface.
Screen surfaces:
Greylight - Matt light grey front projection surface, fibreglass supported and black-backed. It diffuses projected light in all directions, so the image can be seen from any angle. Performs well in ambient light condition. Suitable for “wear & tear” installations, such as public restaurants and pubs. Washable. Flame and mildew resistant.
Gain 0.8
- Arctiq - Matt white front surface, fibre glass support, black-backed. Gain 1.0
General
- Mounting
- Ceiling, Wall
- Format/Masking
- 16:9 Black borders
Screen material
- Image width
- 150 cm
- Image height
- 84,5 cm
- Total width
- 160 cm
- Total height
- 119,5 cm
- Screen material
- Greylight
- Tab Tension
- Nei
- Bakprojeksjon
- Nei
- Gain/Reflection
- 0,8 Gain
Dimensions Cassette/Frame
- Width
- 1 725 mm
- Dypde
- 89 mm
- Høyde
- 105 mm
- Net weight
- 7 kg
Additional information
- Included Accessories
- Wall/Ceiling Bracket
- Warranty
- 2 år
Pakkeinformasjon
- Pakkestørrelse
- 1 900 x 170 x 170 mm
- Pakkevekt
- 8,00 kg
