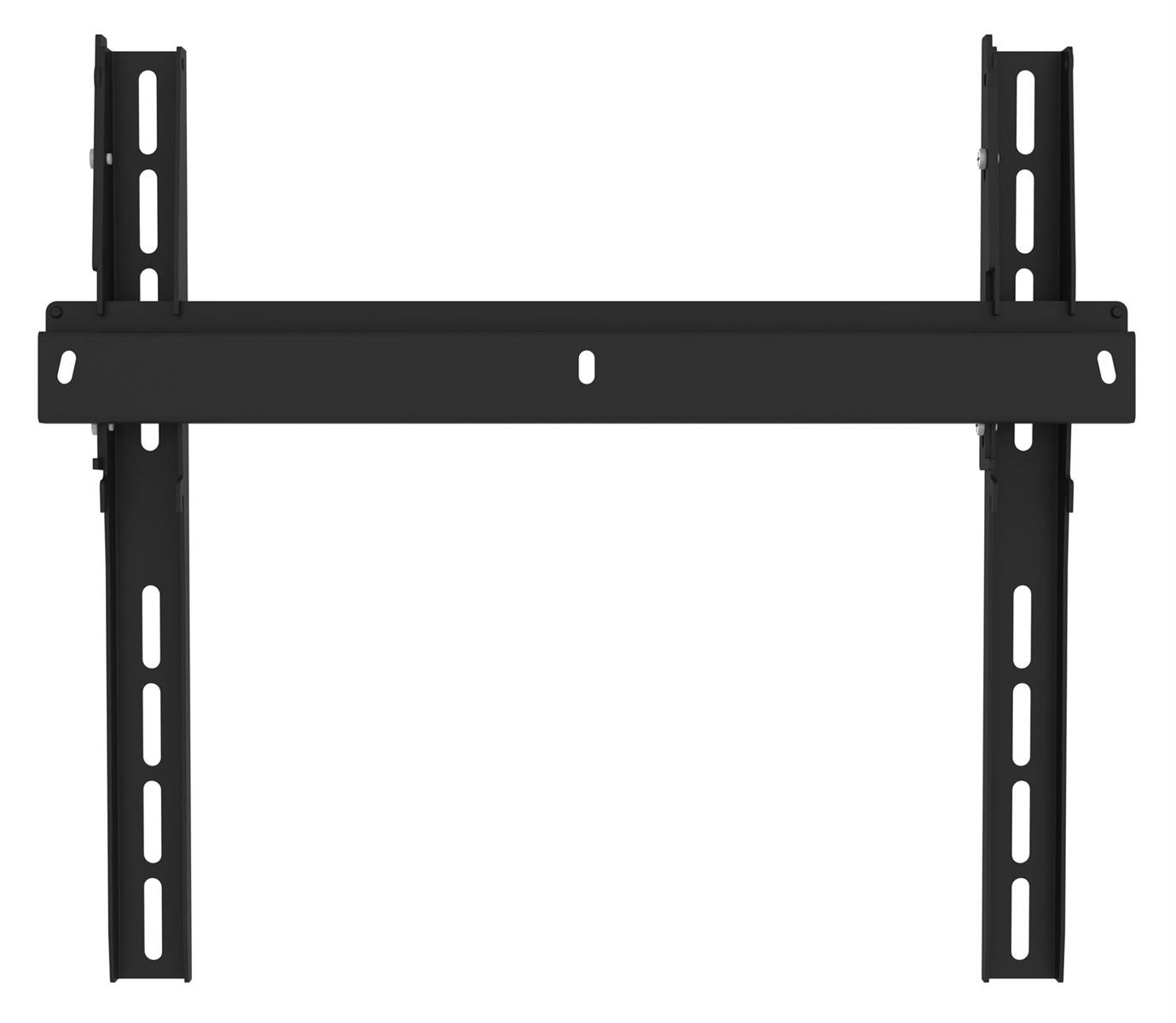

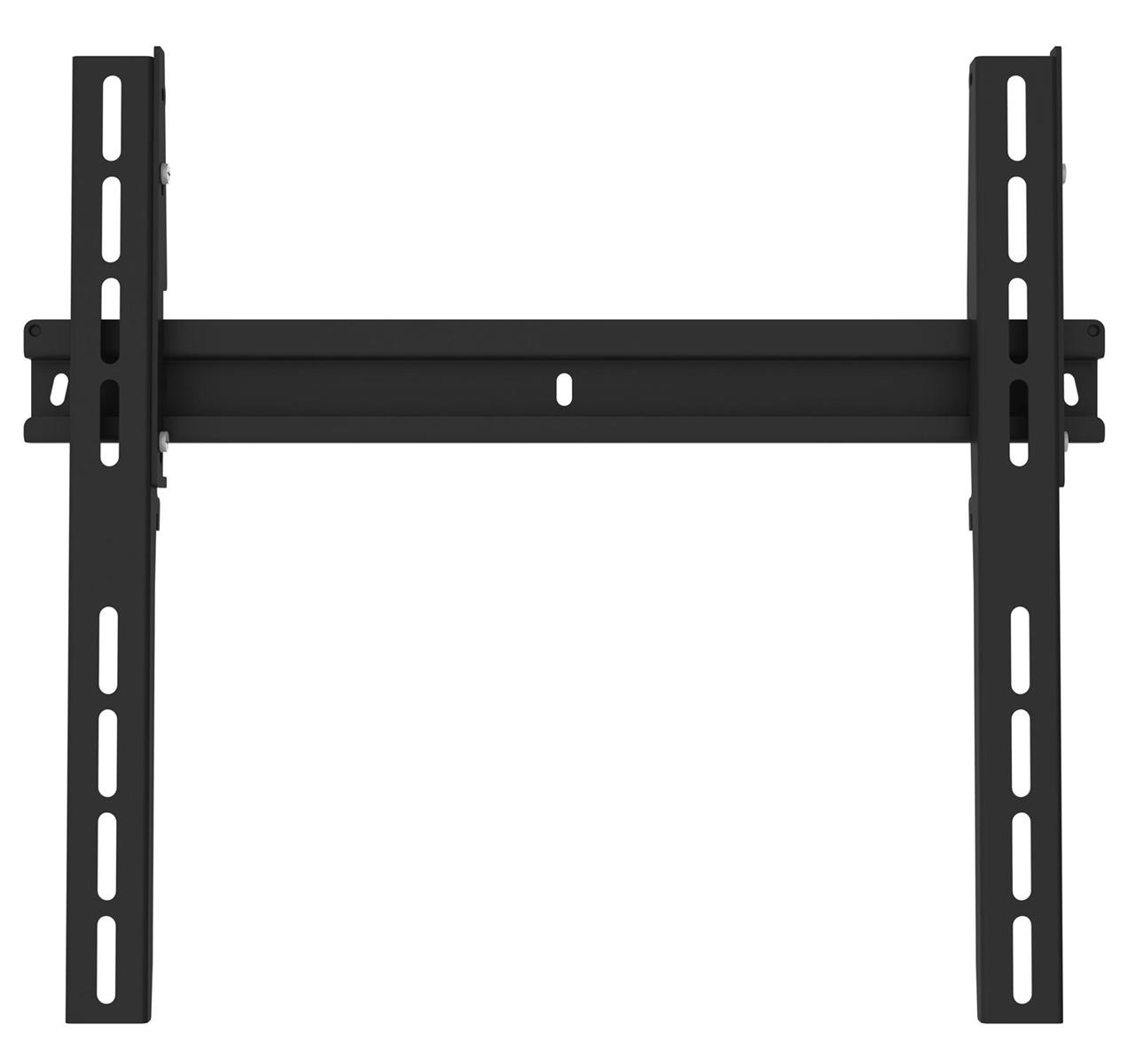

Universal wall bracket with fixed tilt
With its simple mounting – the attachment fits exactly into the space between two wall studs. It can, furthermore, be locked by a locking pin or padlock for improved personal safety and security from theft. Fixed tilt +5°. Suitable for Vesa hole patterns with maximum dimensions 400 x 400 mm and minimum dimensions 100 x 100 mm.
Screw kit includes:
Screw M6x10 x 4 pcs
Screw M6x16 x 4 pcs
Screw M6x30 x 4 pcs
Screw M8x20 x 4 pcs
Screw M8x30 x 4 pcs
Screw M8x40 x 4 pcs
Washer M6 x 4 pcs
Multiple washer x 4 pcs
Plastic spacer 8,2/15x5 x 4 pcs
Plastic spacer 8,2/15x10 x 4 pcs
General
- Number of displays
- 1 pcs.
- Applikasjon
- Wall
- Farge
- Svart
- Display orientering
- Landscape
- Videowall
- Nei
Functions
- Height adjustable
- Nei
- Side adjustment
- Ja, Nei
- Dybde justering
- Nei
- Tiltable
- Ja 0° / +5°
- Swing/Pan
- Nei
- Roll/Pivot
- Nei
- Motorized
- Nei
- Lockable
- Ja With optional padlock
- Lockable
- Nei
Størrelse & Vekt
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400
- Weight capacity (per screen)
- 50 kg
Additional information
- Warranty
- 5 år
Pakkeinformasjon
- Pakkestørrelse
- 506 x 111 x 50 mm
- Pakkevekt
- 2,28 kg
Pakkeinformasjon (8 stk)
- Pakkestørrelse
- 520 x 230 x 195 mm
- Pakkevekt
- 2,27 kg
