USB audio conferencing solution for medium size rooms using PC-based unified communication applications that require ceiling installation.
Key Features:
• One EasyUSB Mixer/Amp
• Two white CeilingMIC units with integrated Echo Canceling
• Two white Vaddio Ceiling Speakers with ceiling tile support braces
An audio conferencing solution for medium rooms using PC-based unified communication applications that require ceiling installation. Both microphones and speakers are recessed in the ceiling. Includes two CeilingMICs for extended coverage within the room and two Vaddio Ceiling Speakers to maximize sound distribution within the room.

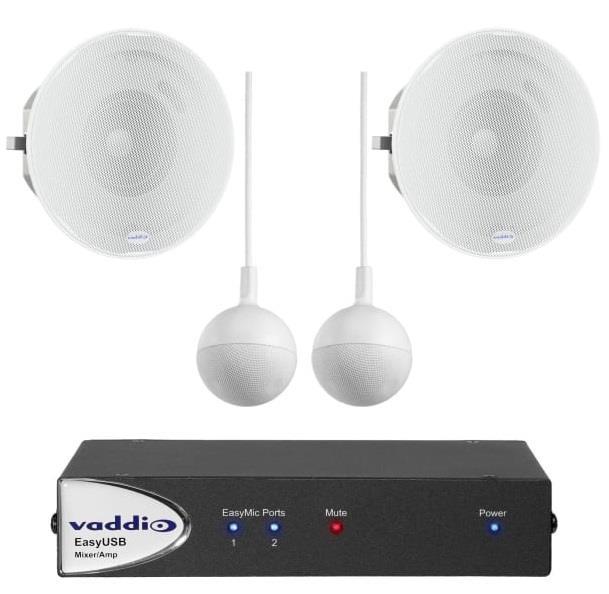

This Package Includes:
1x EasyUSB Mixer/Amp
2x CeilingMIC microphones (white)
2x Silicone split strain relief boots (white)
2x 0.9m Cat-5 cables (white)
2x Vaddio Ceiling Speakers
1x 18V, 2.75A power supply with AC cord set(s)
1x Quick-Start Guide
1x CeilingMIC Installation Guide
2x CeilingMIC interface boxes
2x Cable clamp grommets
4x Ceiling trim ring plates (black or white) with mounting screws
2x Ceiling tile braces for CeilingMIC interface box
2x Ceiling tile braces for speakers
2x Euro-style 4-pin audio connector
2x 68.6cm stainless steel safety cable with steel carabiner clips
4x Rubber feet for bottom of EasyUSB Mixer/Amp unit if not rack-mounted
1x 1.83m USB 2.0 cable, type A to B
1x EZ Camera RS-232 Control Adapter
General
- Applikasjon/Sertifisering
- USB BYOD
- Farge
- Hvit
Audio specification
- Systemtype
- Tak
- Microphone type
- Kondensator
- Audio pickup range
- 4,5 m Max
- Expansion mic
- Nei
- Innebygd høytaler
- Ja In-Ceiling, Resessed Speakers. Passive, 2x 20W

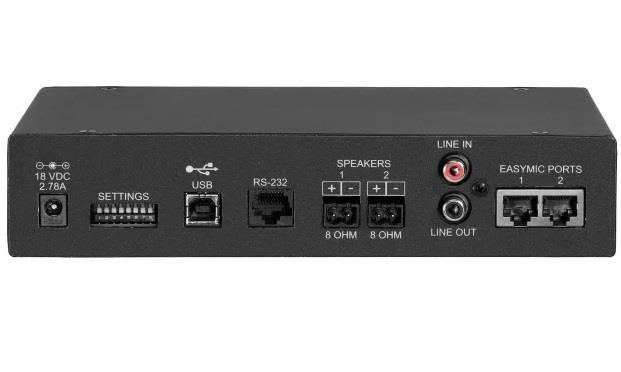

Connections
- Lydinnganger
- EasyMic Port (RJ-45) x2
- Lydinnganger
- RCA x1 Mono Unbalanced
- Lydinnganger
- USB-B USB 2.0 (In/Out)
- Lydutganger
- Euroblock spk. cable (L/R)
- Lydutganger
- RCA x1 Mono Unbalanced
- Lydutganger
- USB-B USB 2.0 (In/Out)
- Wireless
- Nei
- Ethernet
- Nei
- Wi-Fi
- No
- Styring
- RS-232
Energy
- Power Supply
- 18V DC External Power Supply
- Rechargeable
- Nei
Størrelse & Vekt
- Width
- 208 mm EasyUSB Mixer/Amp
- Dypde
- 208 mm EasyUSB Mixer/Amp
- Høyde
- 152 mm EasyUSB Mixer/Amp
- Net weight
- 2,31 kg EasyUSB Mixer/Amp
Additional information
- Included Accessories
- See product text above
- Warranty
- 3 år
Pakkeinformasjon
- Pakkestørrelse
- 710 x 690 x 330 mm
- Pakkevekt
- 18,20 kg
