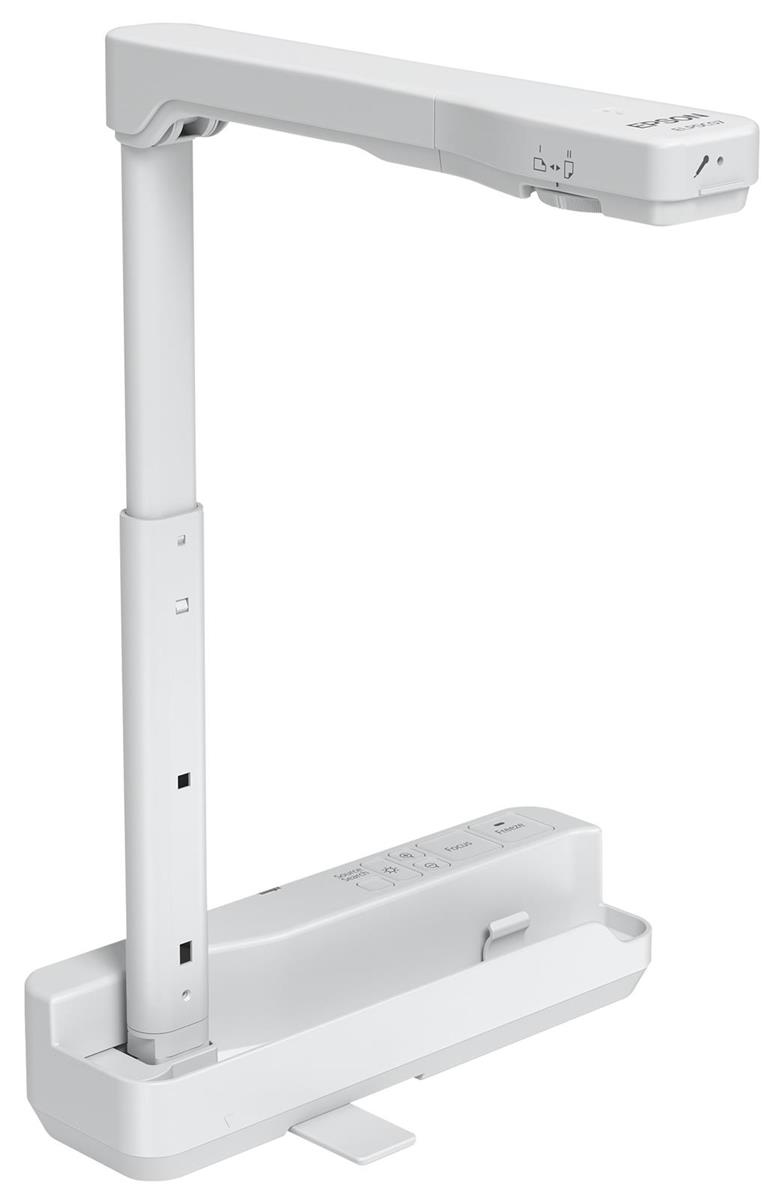

Portable visualiser
Quick to set-up visualiser for magnifying source material clearly and easily for the benefit of everyone in the classroom
Let a wide audience get up close to your source material with the Epson ELPDC07 visualiser. Delivering high-quality images, this portable and adaptable camera sets up quickly and can be connected directly to the latest Epson projectors.
Key Features
- Clear, smooth images: Full HD 1080p camera and 30-frames-per-second screen refresh rate
- Capture every detail: 8x digital zoom, one-touch auto focus and freeze function
- Simple to connect: Two-in-one USB cable connection, no need for a separate power supply
- Flexible for 2D visuals and 3D objects: Adjustable height, 90º head rotation and microscope attachment
- Lightweight and portable: Portable design weighs less than 1Kg and a soft carry case included
See in great detail
Share high-quality visuals including detailed diagrams and textbook pages with a Full HD 1080p output and 8x digital zoom. You can even adjust the height and rotate the camera 90º to accommodate 3D objects.
Effortless to use
Minimise preparation time with this high-tech, compact and affordable portable solution, that makes it quick and easy to enlarge source material. In just seconds, you can connect directly to the latest Epson projectors using the two in one USB cable connection which provides power and transmits the video signal. The Epson ELPDC07 visualiser is neat and compact, it features LED illumination, a built-in microphone and doesn’t need a separate power supply. It’s also light and easy to carry in the included carry case, with the arm folding neatly down into the base. Needing just 2.5W, you can be sure that its power consumption meets modern energy conservation requirements .
General
- Kameratype
- Document camera
- Farge
- Hvit
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 30 FPS
- Optical zoom
- 0 x
- Digital zoom
- 8 x
Functions
- Programmable presets
- Nei
- Takmontering/Flip bilde
- Nei
- Auto framing/tracking
- Nei
Audio specification
- Innebygd mikrofon
- Ja
- Ekstern mikrofon
- Nei
- Innebygd høytaler
- Nei
- Ekstern høytaler
- Nei
Connections
- Video out
- USB-B
- USB standard
- 2.0
Energy
- Power Supply
- USB
- Consumption Max
- 2,5 W
Størrelse & Vekt
- Width
- 260 mm
- Dypde
- 388 mm
- Høyde
- 76 mm
- Net weight
- 1 kg
Additional information
- Included Accessories
- Carrying Case, Information sheet, USB cable, Warranty document
- Warranty
- 3 år
Pakkeinformasjon
- Pakkestørrelse
- 118 x 330 x 195 mm
- Pakkevekt
- 1,69 kg
