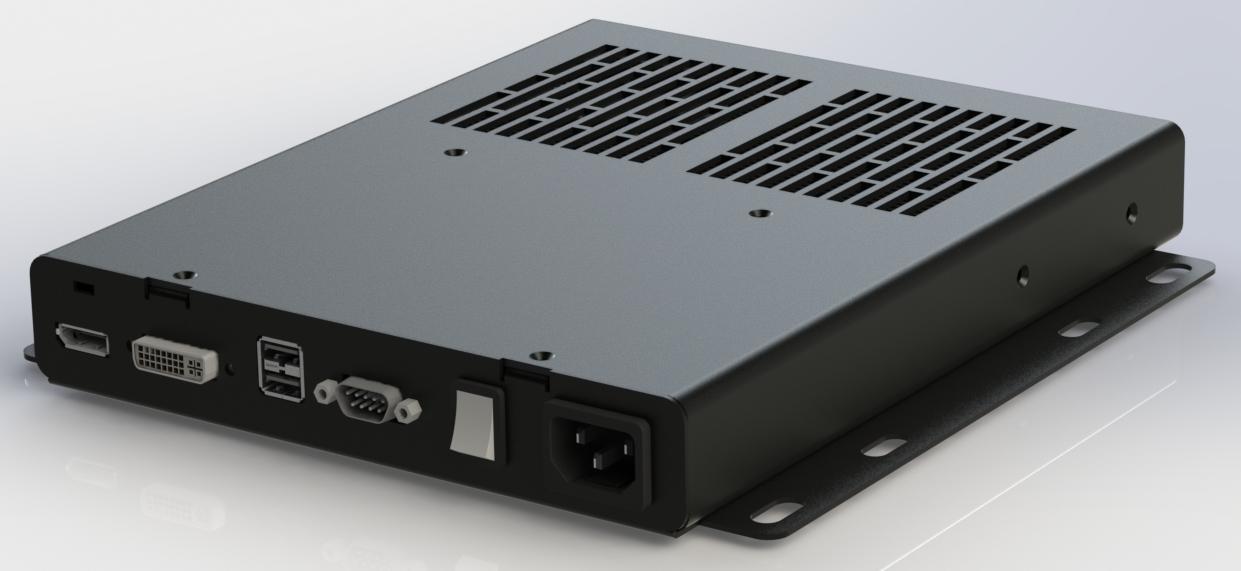

NEC Standalone adapter STV2
An external adapter which allows standalone operation of OPS slot-in computers and other OPS devices which operate externally from connected large format displays, projectors and even desktop monitors.
This makes configuration of all OPS based products simple and delivers 24/7 stand-alone PC performance for every display.
Key Features:
· One PC-System for all Displays involved even if an OPS-Slot for integrated operation is not available for all devices.
· Ideally suited for 24/7 operation.
· Power supply and full PC-functionality in combination with almost all displays or projectors. Only requiring a few clips for installation or removal.
· Comprehensive connectivity: 2 x USB, DVI, DisplayPort & RS232.
· High quality and wide range of use: Industrial grade components and construction
Compatible products:
NEC Slot-in produkter med STv2 / OPS gränssnitt. Se www.nec-display-solutions.com för mer info
Connects to PC via JAE 80-pin connector

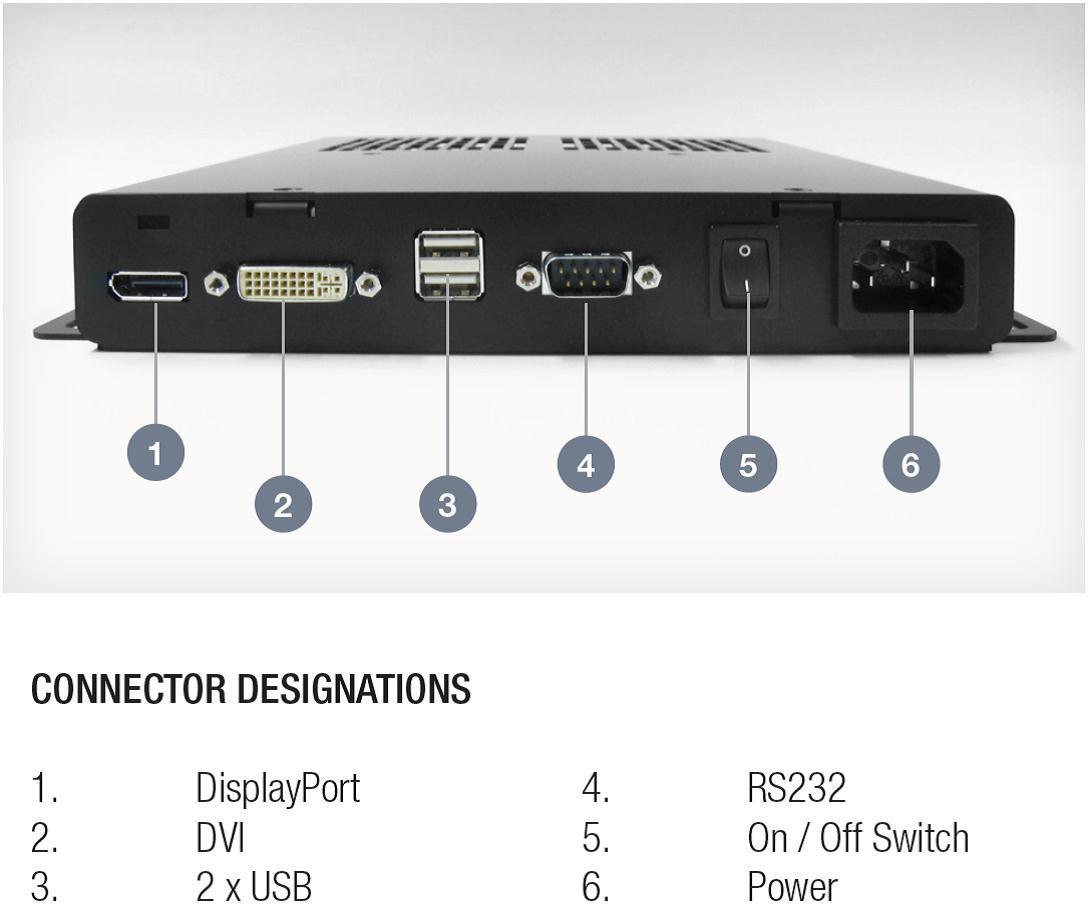

Connectors on adapter:
1 x DVI-D
1 x DisplayPort (only works if PC supports DP)
1 x RS232 (TX /RX only)
2 x USB 2.0
- Consumption Max
- 60 W depending on PC
Størrelse & Vekt
- Width
- 241 mm
- Dypde
- 252 mm
- Høyde
- 37 mm
- Net weight
- 0,9 kg
Ytterligere informasjon
- Included Accessories
- Power cable, QSG, 2x Screws for PC, 4x Rubber feet
- Warranty
- 3 år
Pakkeinformasjon
- Pakkestørrelse
- 342 x 75 x 295 mm
- Pakkevekt
- 1,60 kg
