Hardware Platform with 1 Instance of Kramer BRAINware

  • Fully customizable UI
  • Replaces physical Brains
  • Enables controlling almost any device
  • Scalable & flexible control
  • Simple configuration

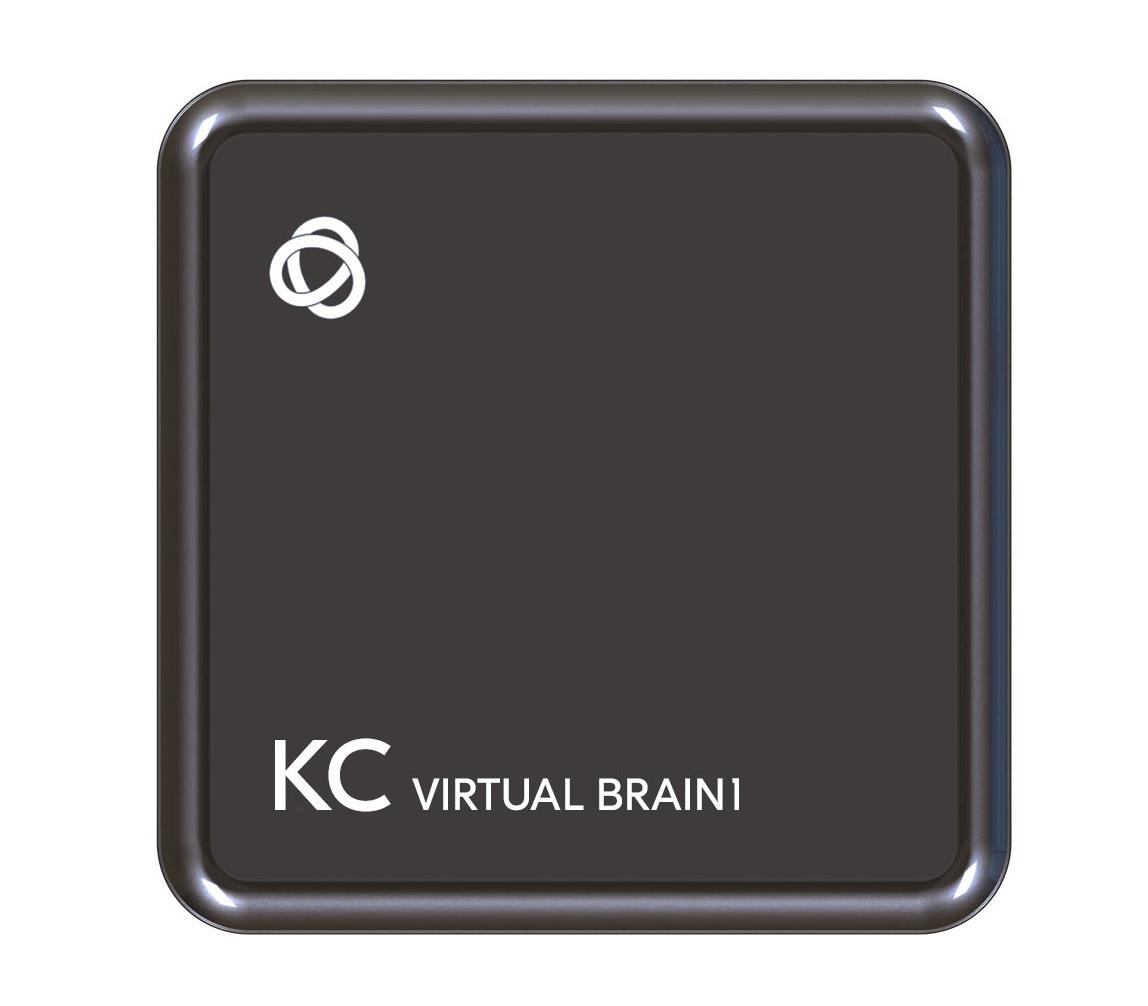

KC−Virtual Brain1 is a hardware platform with 1 instance of Kramer BRAINware software already installed on the device. KC−Virtual Brain1 is designed to maximize the features and benefits of Kramer BRAINware for controlling 1 standard space (e.g. a standard space could include a scaler, monitor, lighting system, touch panel and keypad).
Kramer BRAINware is an enterprise−class, revolutionary, user−friendly, software application that enables you to execute all your room control actions straight from a computer without installing a physical Brain between the user interface and the controlled devices. Using the power of Kramer Control cloud–based control & space management platform, Kramer BRAINware enables you to operate multiple devices over Ethernet such as scalers, video displays, audio amplifiers, Blu−ray players, sensors, screens, shades, door locks, and lights.
Designing a system was never easier, with Kramer Control's intuitive drag & drop Builder. Install, configure and modify your control system without any prior knowledge in programming.

  • Simplified AV Installation — Control a room without installing a physical Brain.
  • Format Conversion — Use Kramer FC family of control format converters to enable controlling almost any device.
  • Fully Customizable UI — Using Kramer Control, easily personalize your control interface any way you like.
  • Space Controller — Controls any AV device with its corresponding logic.
  • Simple Configuration — Install and start using the platform in minutes with easy configuration.

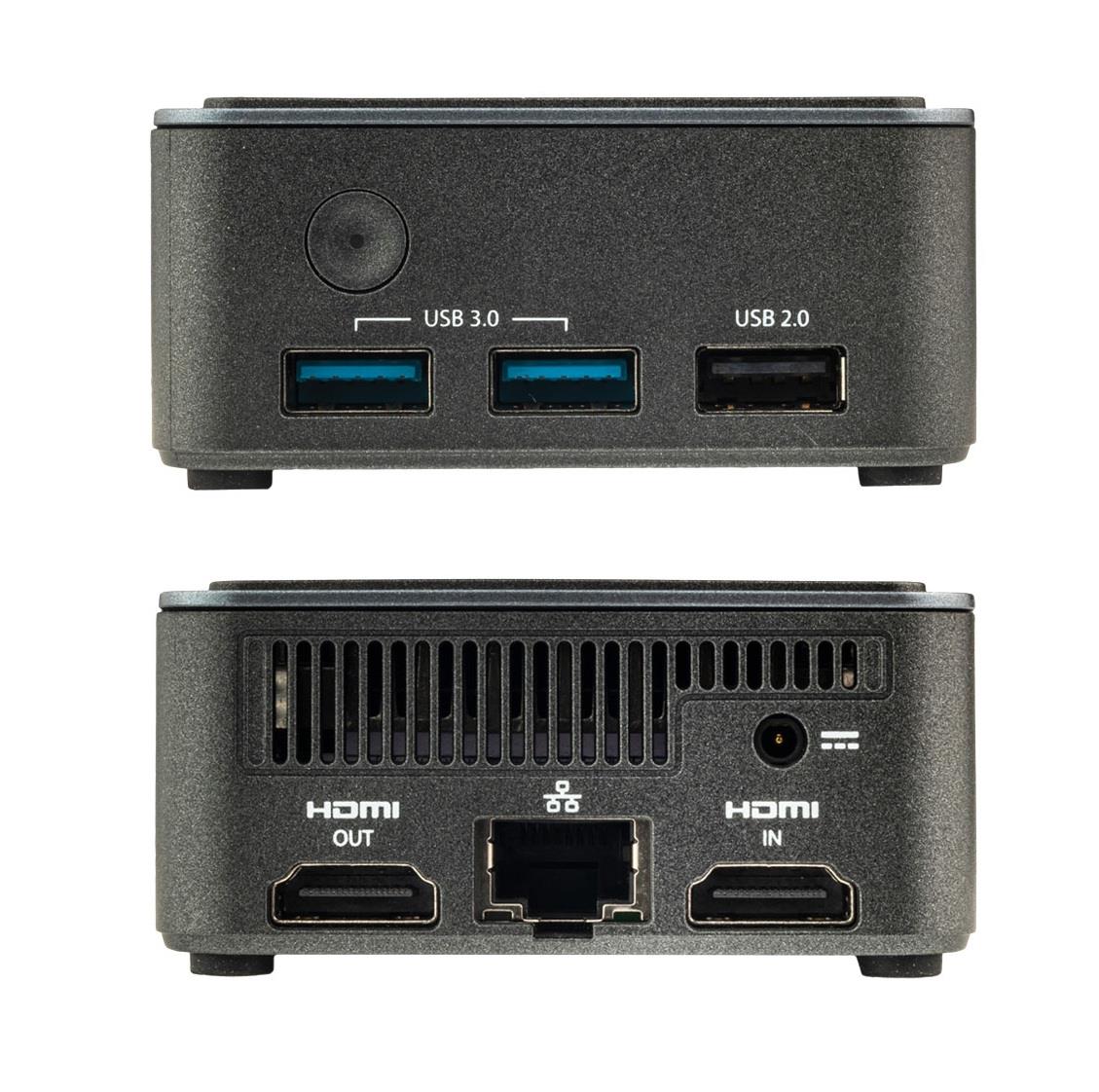

Connections

Control ports
Ethernet/IP (RJ-45)
Ethernet
Ja
Wi-Fi
Nei

Energy

Power Supply
12V DC Power adapter (included)

Størrelse & Vekt

Width
73 mm
Dypde
73 mm
Høyde
33,4 mm
Net weight
0,2 kg

Additional information

Included Accessories
Power adapter, Video Switching control cable, VESA mount

Pakkeinformasjon

Pakkestørrelse
167 x 124 x 119 mm
Pakkevekt
895 g
