Supporting static and dynamic content even up to UHD playback, powerful performance for signage content is perfectly balanced with cost-efficiency. The OPS concept is the first industry-wide digital signage standard, simplifying device installation, usage and maintenance, whilst providing a fully embedded yet upgradeable solution. Delivering performance and value for many different digital signage applications, this embedded PC solution is used to power Flight Information in Airports, Media Players for Retail Signage, Menu Board play-out systems for QSR, information displays in museums and enterprises and much more.
Key Features:
Performance plus value - The new Intel® Celeron Dual Core Processor (“Apollo Lake”) delivers reliable performance with up to 2.4 GHz in turbo clock speed
Ultra High Definition playback - Intel® HD500 graphics provides 4K/60Hz resolution with remarkable video
performance thanks to built-in HW decoding of H.265 (HEVC), H264, VP8, SVC und MVC
High usage flexibility - thanks to wide connectivity such as 3 x USB, Gigabit Ethernet, Audio and optional WiFi and
mobile web (4G/LTE)
Green and economical - super low power consumption saves your wallet and the environment
Fan-less design - ensuring silent operation and increased durability plus reliability even for 24/7 operation
Simply plug into the future - Compatibility with open OPS Standard for Option Slot Products ensures long life cycles
and safe investments

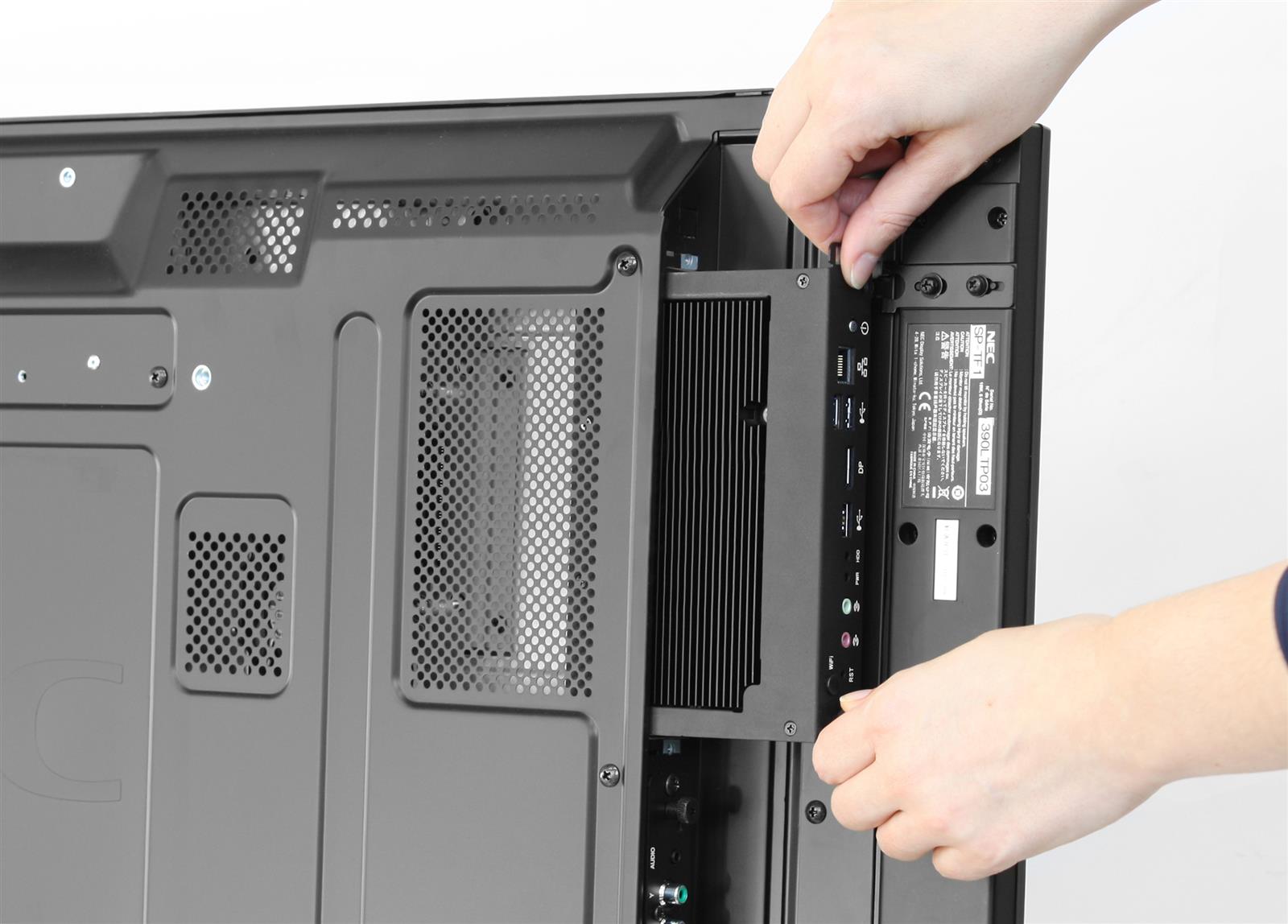

Seamless and fully embedded - - since all connectors are inside the display including power, video & audio signals and RS232, no external cables are required
A commitment to quality - tailored warranties available to best match long-term demands by extending standard
warranty up to 5 years
General
- Operating System
- Windows 10 IoT LTSB 64-Bit
Prosessor
- Processorhastighet
- 1,1 GHz 2,4GHz Boost
- Number of cores
- 2 pcs.
Memory
- Memory
- 4 GB
- Memory Type
- DDR3L-SDRAM
Graphics
- GPU Modell
- Intel® HD Graphics 500
Storage
- Storage type
- eMMC
- Storage size
- 32 GB
Communication
- Ethernet
- Ja
- WiFi
- Nei
- Bluetooth
- Ja
Energy
- Consumption Stand-by
- 3 W
Størrelse & Vekt
- Width
- 190 mm
- Dypde
- 120 mm
- Høyde
- 30 mm
- Net weight
- 0,8 kg
Pakkeinformasjon
- Pakkestørrelse
- 260 x 190 x 70 mm
- Pakkevekt
- 900 g
