Supporting static and dynamic content even up to UHD playback, powerful performance for signage content is perfectly balanced with cost-efficiency. The OPS concept is the first industry-wide digital signage standard, simplifying device installation, usage and maintenance, whilst providing a fully embedded yet upgradeable solution. Delivering performance and value for many different digital signage applications, this embedded PC solution is used to power Flight Information in Airports, Media Players for Retail Signage, Menu Board play-out systems for QSR, information displays in museums and enterprises and much more.
Key Features:
· Performance plus value - The new Intel® Celeron Dual Core Processor (“Apollo Lake”) delivers reliable performance with up to 2.4 GHz in turbo clock speed
· Ultra High Definition playback - Intel® HD500 graphics provides 4K/60Hz resolution with remarkable video performance thanks to built-in HW decoding of H.265 (HEVC), H264, VP8, SVC und MVC
· High usage flexibility - thanks to wide connectivity such as 3 x USB, Gigabit Ethernet, Audio and optional WiFi and mobile web (4G/LTE)
· Green and economical - super low power consumption saves your wallet and the environment
· Fan-less design - ensuring silent operation and increased durability plus reliability even for 24/7 operation
· Simply plug into the future - Compatibility with open OPS Standard for Option Slot Products ensures long life cycles and safe investments

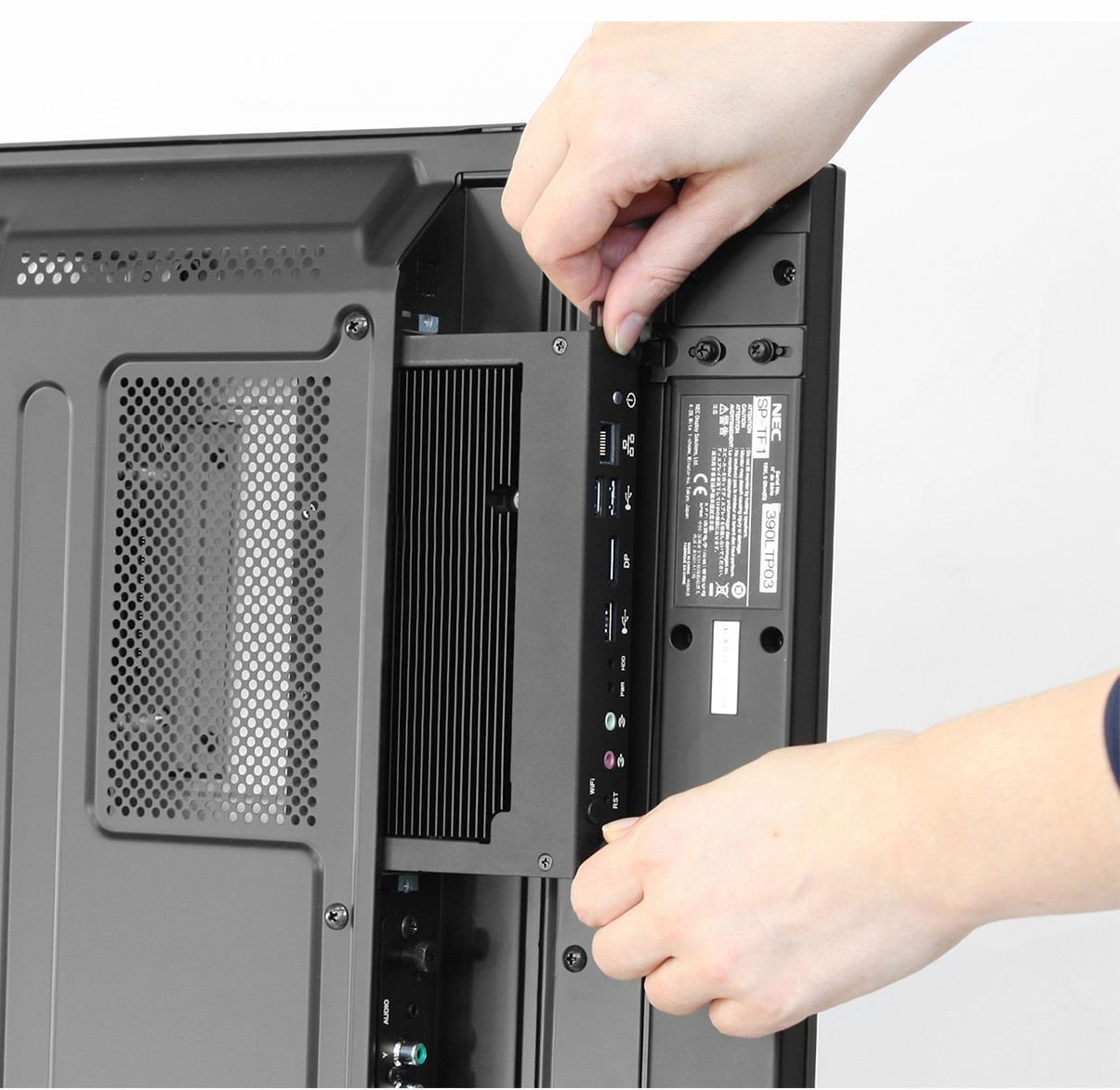

· Seamless and fully embedded - - since all connectors are inside the display including power, video & audio signals and RS232, no external cables are required
· A commitment to quality - tailored warranties available to best match long-term demands by extending standard warranty up to 5 years
Specs:
Processor: Intel Apollo Lake Celeron N3350 2x 1.1 GHz
Graphics: Integrated Gen9-LP Graphics controller
RAM: 4GB single channel
Storage: 32GB eMMC
OS: Windows 10 IoT Enterprise

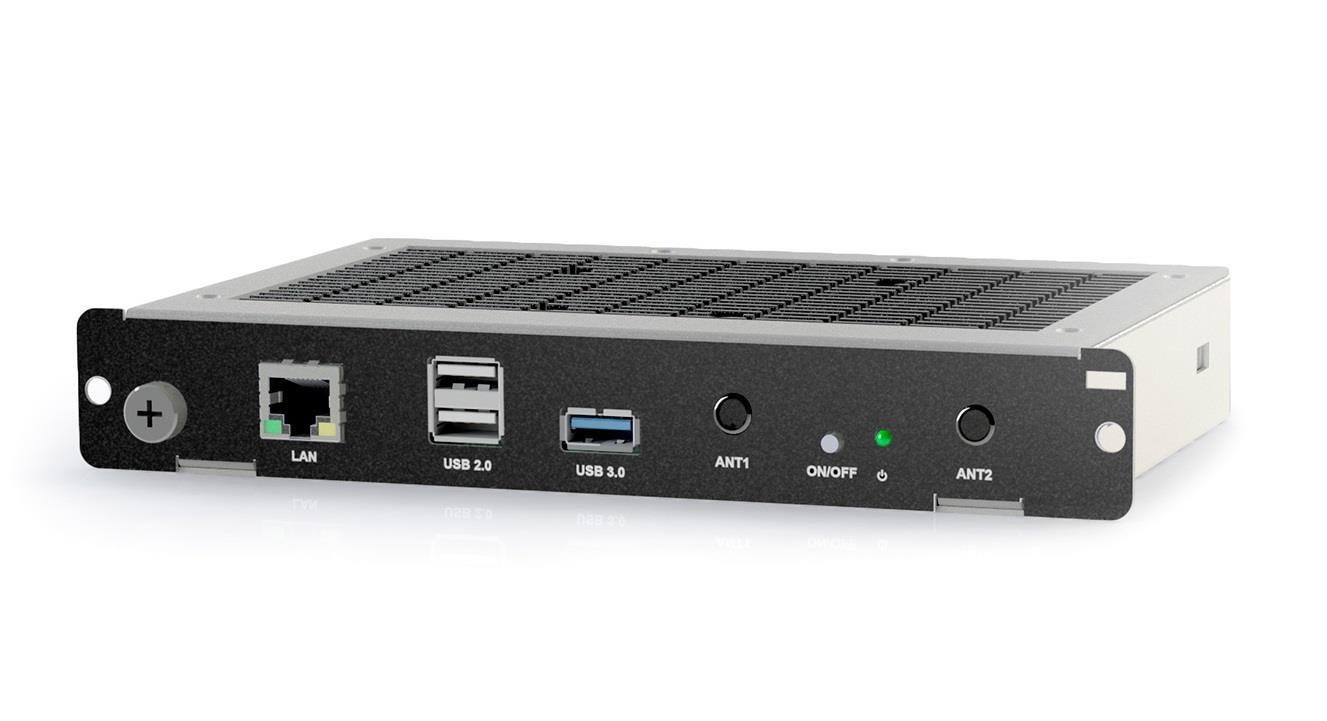

Interfaces: 2x USB 2.0, 1x USB 3.0, 1x Ethernet RJ45
Compatible with Standalone Adapter and Adapter 2.0.
General
- Operating System
- Windows 10 IoT Enterprise
Prosessor
- Processorhastighet
- 1,1 GHz
- Number of cores
- 2 pcs.
- Number of threads
- 2 pcs.
Memory
- Memory
- 4 GB
- Memory Type
- DDR3L-SDRAM
Graphics
- GPU Modell
- Intel® HD Graphics 500
- GPU hastighet
- 0,2 GHz
- Video memory
- 8 GB
- Display Connections
- 3 pcs.
Storage
- Storage type
- Flash
- Storage size
- 32 GB
Communication
- Ethernet
- Ja
- WiFi
- Nei
- Bluetooth
- Nei
Størrelse & Vekt
- Width
- 190 mm
- Dypde
- 120 mm
- Høyde
- 30 mm
- Net weight
- 0,8 kg
Additional Information
- Warranty
- 3 år
Pakkeinformasjon
- Pakkestørrelse
- 200 x 60 x 260 mm
- Pakkevekt
- 963 g
