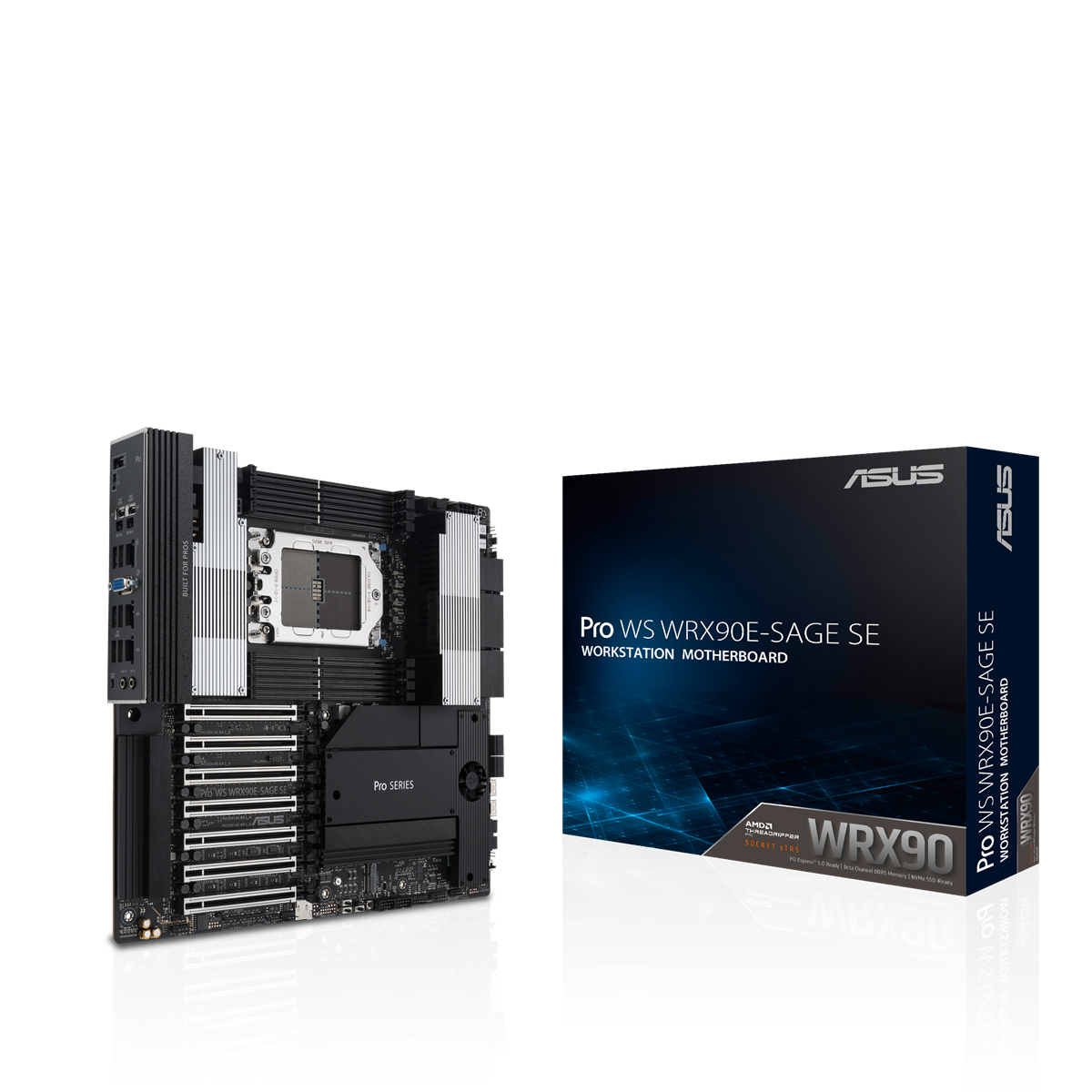

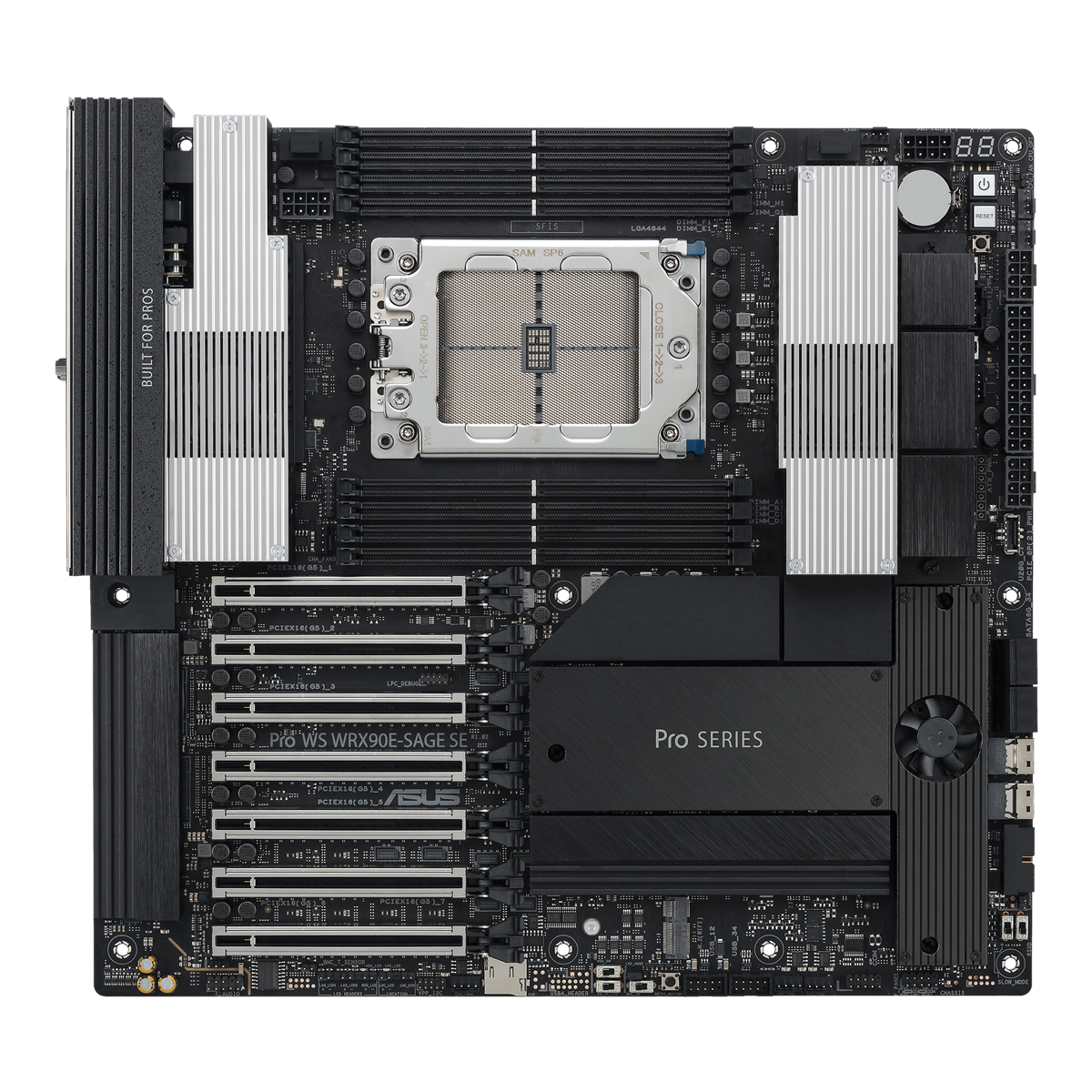

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim
- AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
- Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
- CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
- Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
- PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
- Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
General
- Chipset
- WRX90
- Formfaktor
- EEB
Memory
- Memory Type
- DDR5 ECC
- Kanaler støttet
- Quad Channel
- Memory slots
- 8 pcs.
Expansion Slots
- PCIe generation
- PCIe 5.0
- PCIe x16
- 7 pcs.
Storage Devices
- M.2 slots
- 4 pcs.
- SATA ports
- 4 pcs.
Communications
- LAN controller
- Intel® & Realtek
- LAN Speed
- Dual 10Gb Ethernet (Intel), 1Gb Ethernet (Realtek)
Internal I/O Connectors
- TPM
- Ja
- Viftekontakt (4-pin)
- 10 pcs.
Rear Panel Ports
- USB type-A
- Ja
- USB type-C
- Ja
- VGA
- Ja
- Ethernet
- Ja
Størrelse & Vekt
- Width
- 305 mm
- Length
- 330 mm
Pakkeinformasjon
- Pakkestørrelse
- 371 x 380 x 91 mm
- Pakkevekt
- 4,73 kg
Pakkeinformasjon (4 stk)
- Pakkestørrelse
- 350 x 400 x 420 mm
- Pakkevekt
- 20,00 kg
