Engage your classroom with 30W of sound using this set of active speakers.

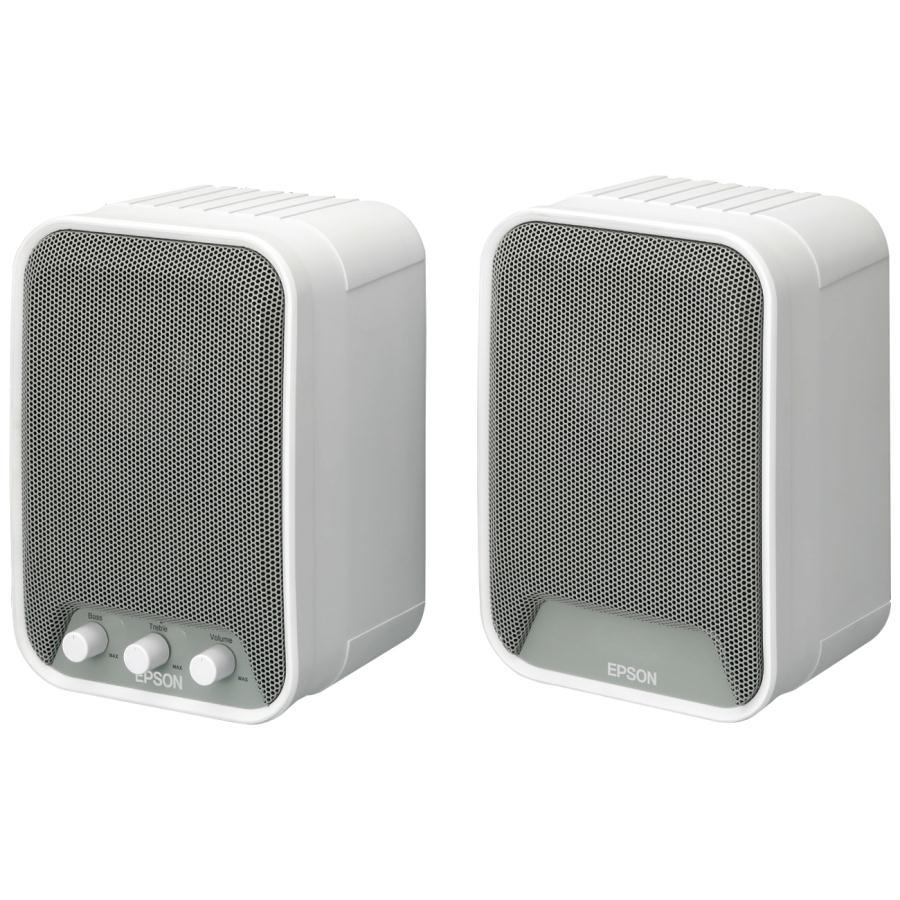

The ELPSP02 active speakers (with built-in amplifiers) enable all students in the room to clearly hear your lesson, enhancing the learning experience. The ELPSP02 speakers can be easily mounted on the wall and can be used with any Epson projector - with or without the ELPCB02 control box.

Key Features:
• Front controls for Volume, Bass and Treble level
• Left speaker active, Right speaker passive
• Wallbrackets included
• 3,5mm tele / RCA audio inputs



General

Application
Wall
Aktiv/Passiv
Active
Farge
Hvit

Audio specifications

Impedance
8 Ohm
Frekvensområde Min
80 Hz
Frekvensområde Maks
20 000 Hz
Power handeling
15 W x2
Forsterkereffekt
15 W x2
70/100V modus
Nei

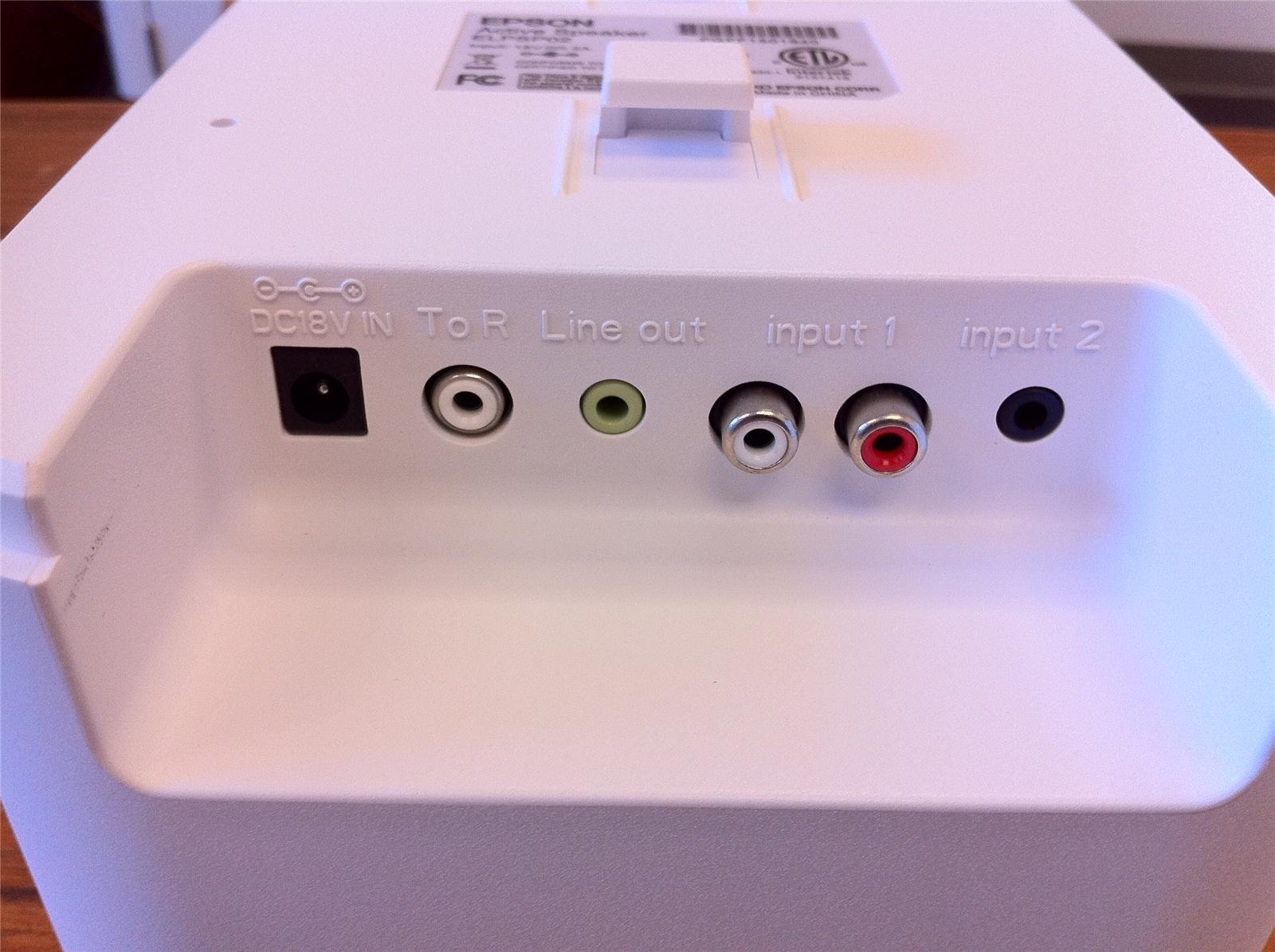

Connections

Lydinnganger
3,5mm tele
Lydinnganger
RCA Stereo pair
Lydutganger
RCA To passive speaker
Ethernet
Nei
Bluetooth
Nei
WiFi
Nei

Energy

Power Supply
100V - 240V AC, 50/60Hz External Power Supply

Størrelse & Vekt

Width
155 mm
Dypde
142 mm
Høyde
231 mm
Net weight
2,1 kg 1,9kg (passive speaker)

Additional information

Outdoor use
Nei
Included Accessories
Active Speaker (incl.amplifier), Bracket for wall mount, External AC power adapter with power cord, Passive Speaker, Speaker Cable 3m, User guide, Warranty card
Antall i leveranse
1 Pair

Pakkeinformasjon

Pakkestørrelse
350 x 200 x 300 mm
Pakkevekt
5,02 kg

Pakkeinformasjon (2 stk)

Pakkestørrelse
420 x 370 x 330 mm
Pakkevekt
10,00 kg
