Easy, ergonomic PTZ control of multiple remote cameras for live events production and contents creation

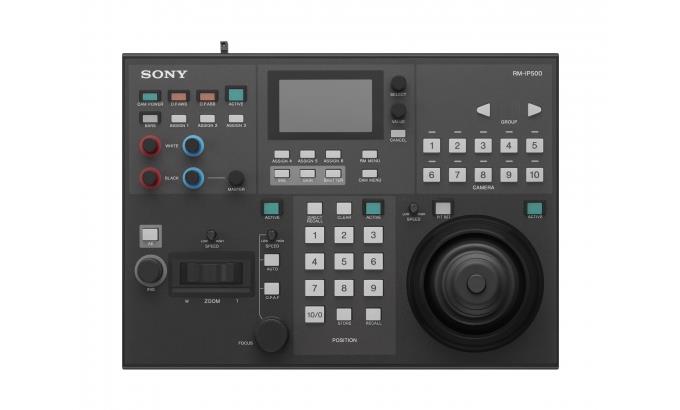

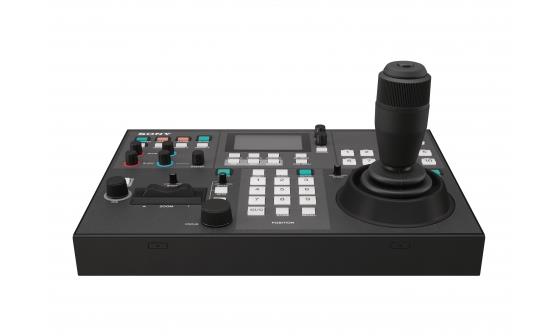

This compact remote controller features a high-quality joystick that allows effortless one-handed pan, tilt and zoom adjustments of compatible Sony PTZ remote cameras. Zoom can also be controlled via the joystick or a supplementary seesaw lever; dedicated knobs and control buttons simplify direct access to frequently-needed camera functions.

The RM-IP500 simplifies the building of cost-effective multi-camera content creation systems with a wide range of applications - from live events to conference halls, broadcast studios, education institutes and houses of worship.

PTZ speed can be adjusted from slow to fast for more polished, professional-looking results. Up to 100¹ combinations of camera angles and settings can be stored as presets. Trace Memory¹ allows a sequence of camera moves to be stored and recalled whenever required.

Up to 100 compatible Sony BRC/SRG Series and ILME-FR7 PTZ remote cameras can be controlled over a standard IP network. Set-up's simple: the controller automatically assigns IP addresses to connected Sony PTZ cameras on the network, also assigning a camera number to each.

Full compatibility is provided with these Sony PTZ remote camera models: BRC-X4003, SRG-X400 3, SRG-X1203, BRC-X4012,3, SRG-201M22,3, SRG-HD1M22,3, ILME-FR74, ILME-FR7K4, BRC-X1000, BRC-H900, BRC-H800, BRC-H7802, SRG-360SHE, SRG-280SHE2, SRG-300SE, SRG-300H, SRG-301H2, SRG-120DH, SRG-120DS, SRG-120DU, SRG-121DH2, SRG-HD12.

The RM-IP500 is an ideal partner for the Sony MCX-500 Multi-Camera Live Producer, creating a complete IP streaming and SD recording solution for a wide range of content production applications.

The RM-IP500/1 is a US/Canada model which is bundled with the AC-UES1230MT AC power supply and cord. In all other regions the AC power supply and cord are sold separately.

High-quality control of PTZ functions
It's easy to achieve professional looking productions, with joystick adjustment of pan and tilt, plus zoom control either via joystick or a separate seesaw lever. Adjustable speed control of PTZ allows smooth, acurate camera movements.

Pair with ILME-FR7
The RM-IP500 remote controller allows control of pan, tilt, zoom of the new ILME-FR7 full frame PTZ cinema line camera. It can also start and stop recording and set variable ND and focus area. The Panel Sheet for ILME-FR7 included in a carton allows optimum operating efficiency. The existent users can purchase a panel sheet as a service part and upgrade firmware to V2.20 or later to control ILME-FR7.

Control up to 100 BRC/SRG Series and ILME-FR7 cameras via IP
The remote controller allows control of pan, tilt, zoom and other functions of up to 100 Sony BRC/SRG Series and ILME-FR7 PTZ cameras over an IP network. Multiple models can be controlled.

Simple set-up
System set-up is quick and simple, with automatic IP address assignment of connected cameras and auto assignment of camera numbers. To change the group number, camera number, and IP address assigned to a camera or clear the camera registration auto assigned IP addresses manually from RM-IP500 without using PC will be also supported from Version 2.0.

Trace Memory
A sequence of camera moves can be stored for instant recall whenever required. Simple store trace memory function without using Camera Menu will be also available from Version 2.0 for BRC-X1000/BRC-H800 Version 2.0.

Store and recall camera presets
Up to 100 presets (camera angles and settings) can be stored recalled instantly via the numeric keypad, saving time in multiple camera set-ups.

Up to 5 controllers can operate on a single network
Up to 5 RM-IP500 control panels can be used on a single network, allowing shared control and simultaneous multi-operator control of large camera systems. In case both RM-IP500 and RM-IP10 are used on a single network, total number of units of RM-IP500 and RM-IP10 available to be controlled is up to 5.

Tally indicator
Includes Normal Tally/On-Air Tally/Contact Modes.

Adjust camera paint functions
Colour related settings - including black levels, white balance, flicker cancel, detail level, knee point, auto exposure level, iris, gain and shutter speed - can be adjusted directly without needing to use the camera menus.

Additional ability to use VISCA control
The RM-IP500 can also control up to seven compatible BRC or SRG Series cameras over a RS-422

Selectable ASSIGN items
With BRC/SRG series, backlight/flicker/status display/detail level/knee point/AE level/clear image zoom/Tele Convertor/mode switch of Trace-Preset (mode1/mode2) /ND filter/Picture Profile settings can be assigned. (The available function depends on camera specification.)
With ILME-FR7, backlight/display/detail level/knee point/AE level/audio level/ND filter and recalling assignable functions in the camera can be assigned.



General

Interface type
Joystick
Interface type
Keypad 6x ASSIGN button

Connections

Control ports
Ethernet/IP (RJ-45) 10BASE-T/100BASE-TX automatically detected
Control ports
RS-422
Ethernet
Yes
WiFi
No

Energy

Power Supply
JEITA type 4 (IN 12V, 10.8 to 13.2V DC)

Dimensions and weight

Width
306 mm
Depth
224.1 mm
Height
159.3 mm
Net weight
2.4 kg

Additional information

Color
Black
Included Accessories
Safety Regulations (1), Warranty (1) *2, Download Site Information (1), The Panel Sheet for ILME-FR7 (1) *3

Packaging info

Packaging size
400 x 320 x 260 mm
Packaging weight
4.40 kg
