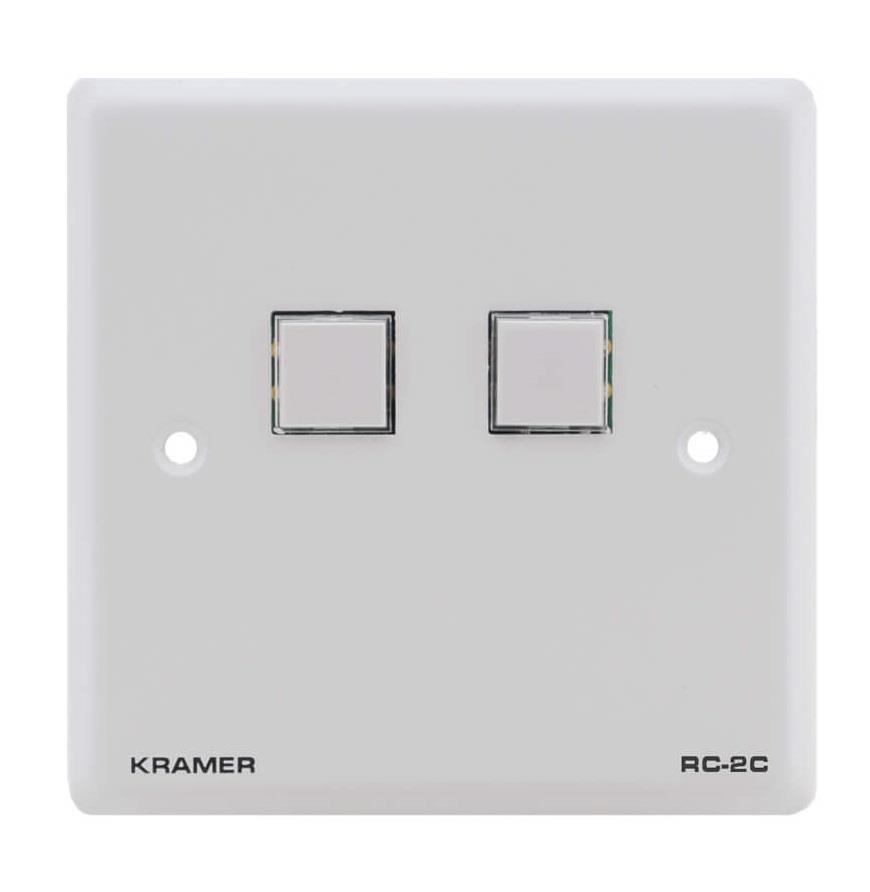

2 tri–color, backlit buttons Custom labeled, removable button caps 1 bidirectional RS–232 port 1 IR emit port Suitable Wallbox, OWB–1G/EU.
RC−2C is ideal for simple, convenient control of small spaces with serial and IR controlled devices such as projectors and displays.
Key Features:
• Back Lit & Label Capable Buttons - 2 tri-color, tactile feedback, backlit buttons.
• Custom Labeled, Removable Button Caps.
• RS-232 Control Port - Controls a device via serial control protocols.
• IR Control Port - Controls a device via IR control protocols.
• Program Control - Program configuration with Kramer K-Config software - supports up to 4 commands per macro and 4 toggling macros per button
• Keypad Lock-Out - Option for tampering prevention by locking and unlocking of the keypad buttons.
• Mounting - In-wall, in standard 1 gang US, EU or UK wall junction boxes.
General
- Buttons
- 2 pcs.
- Installation
- Wall
Connections
- Control ports
- IR cable connection x1
- Control ports
- RS-232 x1
- Ethernet
- No
- WiFi
- No
Energy
- Power Supply
- 12V DC external POS
Dimensions and weight
- Width
- 80 mm
- Depth
- 13 mm
- Height
- 80 mm
Additional information
- Color
- White
- Warranty
- 7 years
Packaging info
- Packaging size
- 244 x 100 x 137 mm
- Packaging weight
- 529 g
