All light on the projection screen, not into the speaker’s eyes.

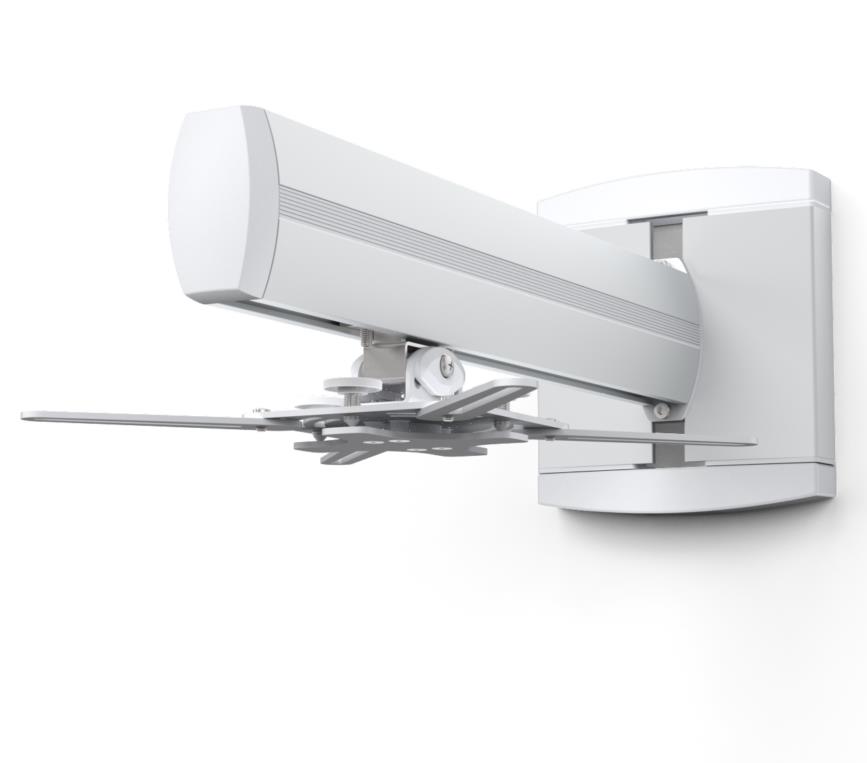

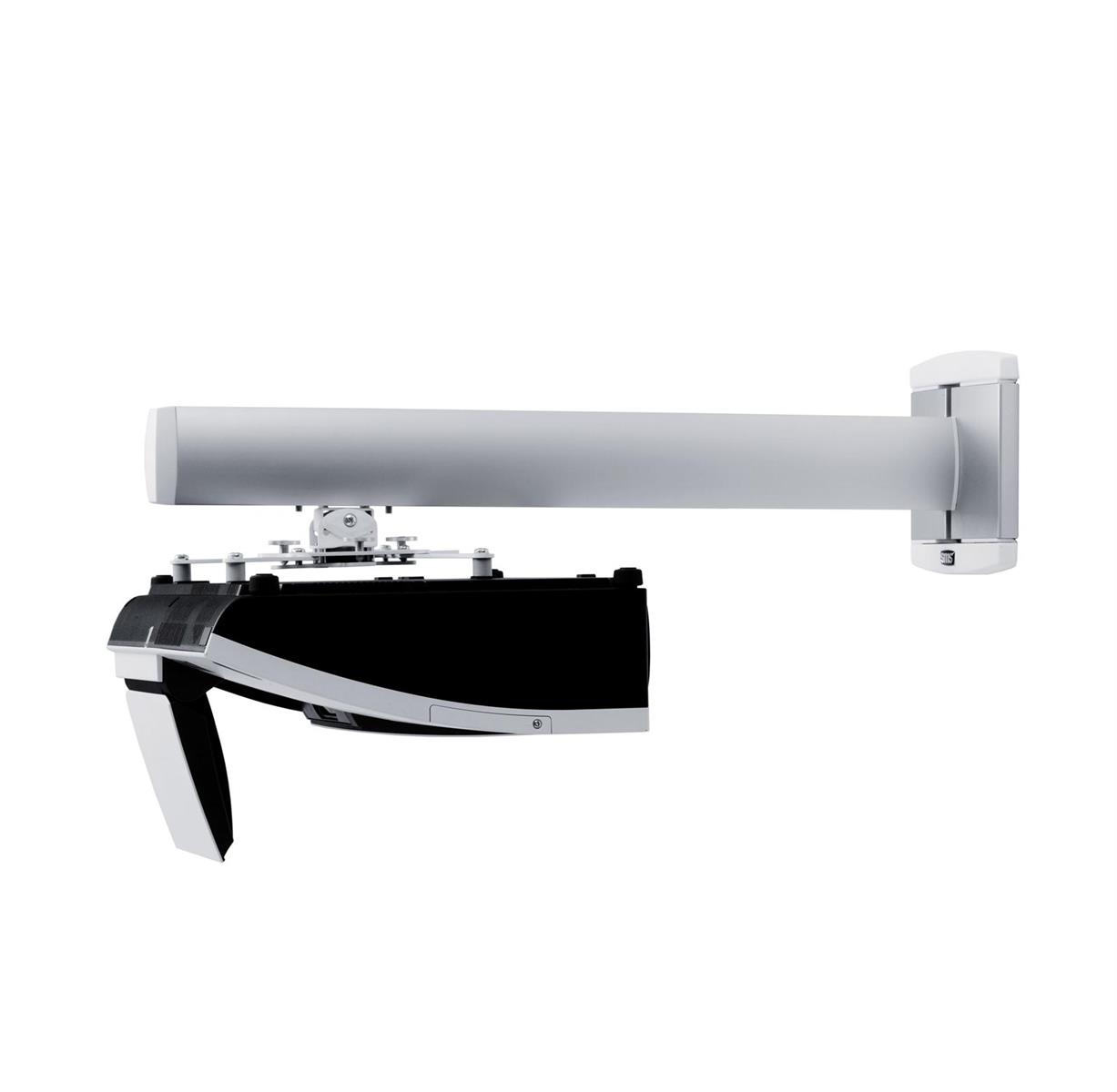

A wall bracket with generous adjustment facilities to obtain the best possible image quality at all positions. The projector can be suspended at any location along the pillar for depth adjustment. Furthermore, the wall plate can be adjusted both horizontally andvertically. Fine adjustment is very easy with the aid of adjustment knobs on the universal slide.

To get a complete product two articles are required:

  • One article including the wall bracket and Short Throw unislide
  • One article including the projector pillar (in proper length):
    • FS000450AW-P2 SMS Proj ShortThrow 450 A/W
    • FS000680AW-P2 SMS Proj ShortThrow 680 A/W
    • FS001202AW-P2 SMS Proj ShortThrow 1200 A/W
    • FS001450AW-P2 SMS Proj ShortThrow 1450 A/W
    • FS001600AW-P2 SMS Proj ShortThrow 1600 A/W


General

Application
Wall
Color
Silver, White

Functions

Column Type
Column not included
Tiltable
Yes +/-12°
Swing/Pan
Yes
Roll/Pivot
Yes +/-12°
Lockable
No

Dimensions and weight

Max weight capacity
12 kg
Width
188 mm
Height
211 mm
Depth
40 mm

Additional information

Included Accessories
Wallbracket, short-throw unislide
Warranty
5 years

Packaging info

Packaging size
252 x 200 x 86 mm
Packaging weight
2.24 kg
