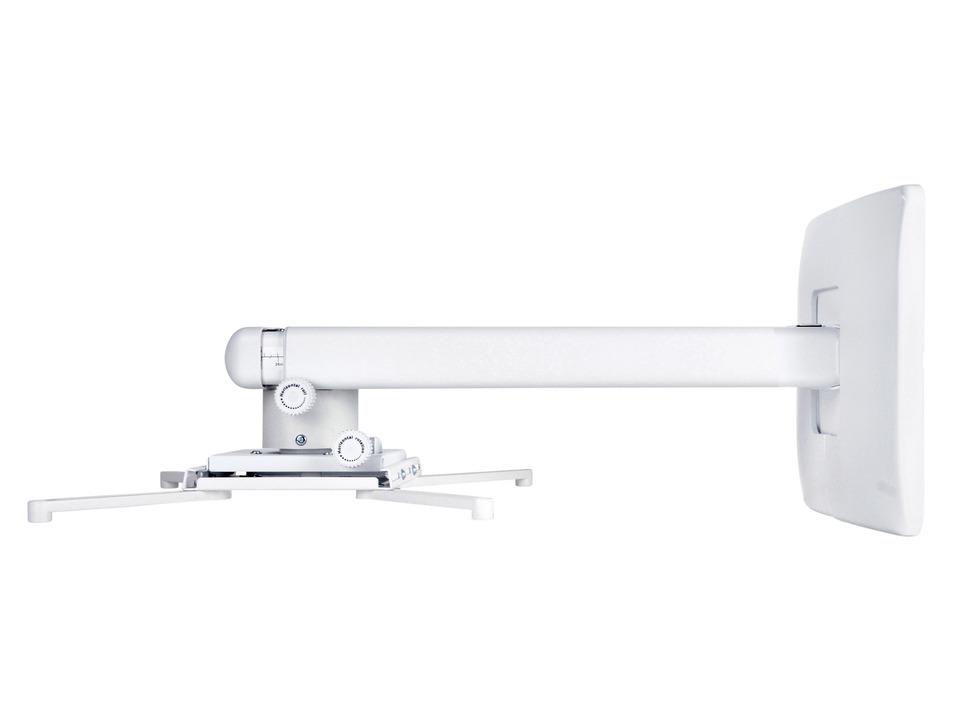

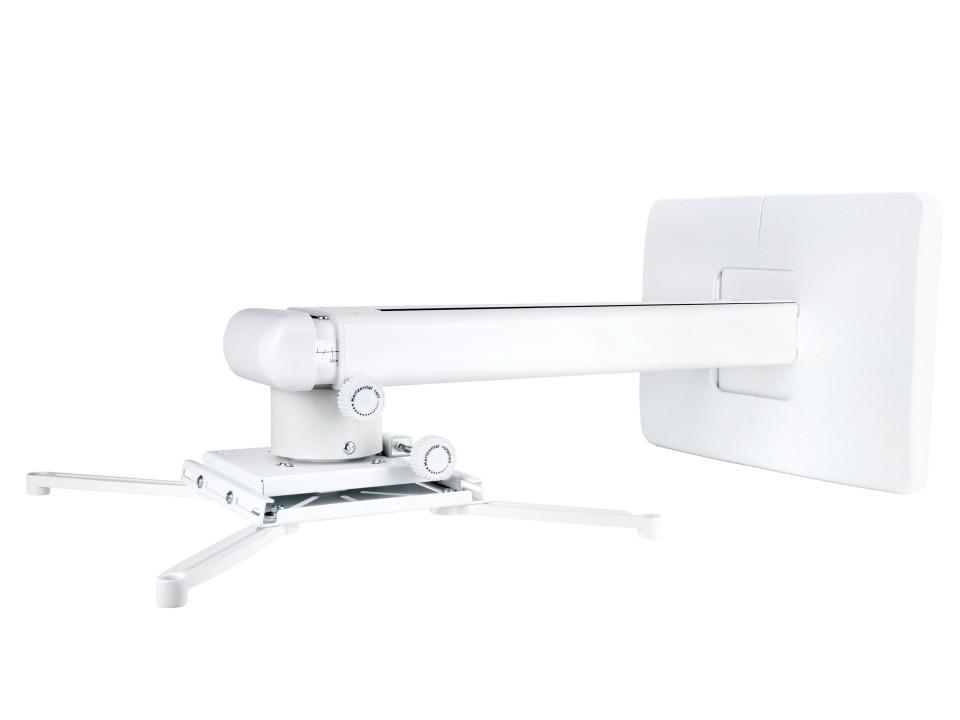

Multibrackets M Projector Mount Short Throw Deluxe - Wall mount for projector - max load 25kg - length adjustment 325-740 mm - size 448x210x325 mm - white
The all new M Universal Projector Mount Short Throw Deluxe is an ideal way to maximize the close up capabilities of your short throw projector while saving room space and locating the projector above the audience.
The M Universal Projectormount Short Throw Deluxe includes everything needed for a complete installation including wall plate and hardware for mounting the projector supporting a max load up 25 kg. The adjustment range allows you to locate the projector and included mount from a minimum of 325 mm from the wall with a +/-5 tilt adjustment. Distance between mounting plate (centered) and wall 325-740mm.
The included projector mount makes it possible to install almost all Short Throw projectors on the market. The projector mount is a clean designed compact projector mount with a small form factor which supports the trend towards sophisticated technology in a small package.
The built in Finetune Adjustment technology provides fingertip positioning capability which automatically adjusts to accommodate specific projector weights.
This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future.
Shipped fully assembled.
Highlights
- Fast installation with innovative design
- Projector position from the wall min 325 mm - max 740 mm (centered)
- Integrated lateral shift
- Telescopic slide extension
- Fine tune adjustment alignment with with 3-axle angle
- Integrated cable management system for concealing cables
- Includes short throw arm and projector mount
- Includes all hardware for a complete installation for nearly any wall construction
General
- Application
- Wall
- Color
- White
Functions
- Column Type
- Adjustable
- Tiltable
- Yes +/- 20°
- Swing/Pan
- Yes +/- 360°
- Roll/Pivot
- Yes +/- 20°
- Lockable
- No
Dimensions and weight
- Max weight capacity
- 25 kg
- Depth
- 740 mm
- Net weight
- 3 kg
- Column lenght min
- 325 mm
- Column lenght max
- 740 mm
Additional information
- Warranty
- 5 years
Packaging info
- Packaging size
- 490 x 203 x 262 mm
- Packaging weight
- 5.71 kg
Packaging info (2 pcs)
- Packaging size
- 500 x 415 x 280 mm
- Packaging weight
- 12.00 kg
