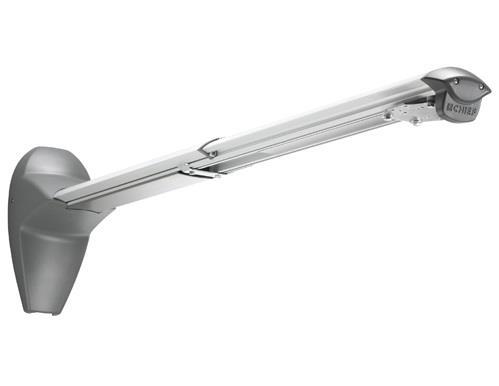

The WM130AUS projector short throw kit includes a single stud short throw extension arm and Universal Mini RPA Elite projector mount to provide unparalleled flexibility, precision and strength.

Also supports wall-mounted long-throw projectors.

Key Features:

  • Fast installation with innovative quick-connect system
  • Industry-first micro height and leveling adjustment
  • Extension from wall, 711-1334mm
  • Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
  • Integrated cable management system conceals and protects cables for a clean finish
  • Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)

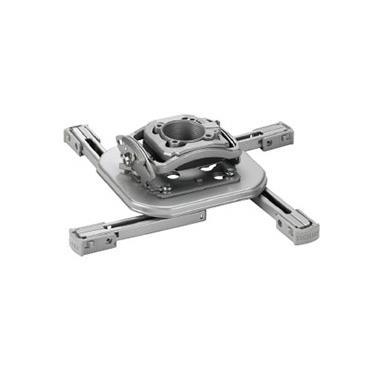

  • Includes short throw arm and RSMAUS Universal Mini RPA Elite projector mount
  • Now includes new universal interface to further reduce installation time
  • Includes hardware for wood stud, steel stud and concrete wall construction


General

Application
Wall
Color
Silver

Functions

Column Type
Adjustable
Tiltable
Yes +/-15°
Swing/Pan
Yes +/-360°
Roll/Pivot
Yes +/-3°
Lockable
Yes Key and lock system (4 key options), with all-points security hardware

Dimensions and weight

Max weight capacity
11.3 kg
Column lenght min
833 mm From wall
Column lenght max
1,479 mm From wall

Additional information

Included Accessories
RSMAUS - Universal Mini RPA Elite projector mount
Warranty
10 years

Packaging info

Packaging size
914 x 304 x 304 mm
Packaging weight
13.88 kg
