The VP−426 is a high−performance digital scaler for computer graphics/HDTV and HDMI signals. The unit up− or down−scales computer graphics and HDTV signals to resolutions of up to WUXGA and 1080p.
Key Features:
- Inputs — RGBHV, YPbPr or HDMI.
- Outputs — RGBHV and HDMI simultaneously.
- HDTV Compatible.
- HDCP Compliant.
- Input Auto–Scanning.
- EDID Capture — Copies and stores the EDID from a display device.
- Analog/Embedded Audio Support.
- Built–In ProcAmp — Color, hue, sharpness, contrast, and brightness controls.

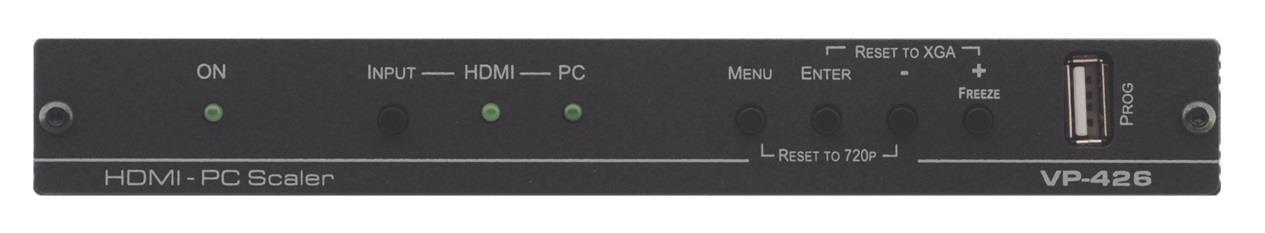

- Control — Front panel, OSD (on screen display), contact closure.
- Non–Volatile Memory — Saves final settings.
- Freeze Button.
- Contact Closure — For remote switching of sources.
- USB Port — For upgrading firmware.
Applications:
- Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging
- Home theater up–scaling
General
- Model
- VP-426 | HDMI/VGA+Audio
- Application
- Converter, Scaler
Image specification
- Resolution
- 1920x1080 progressive
- Refresh rate
- 60 Hz

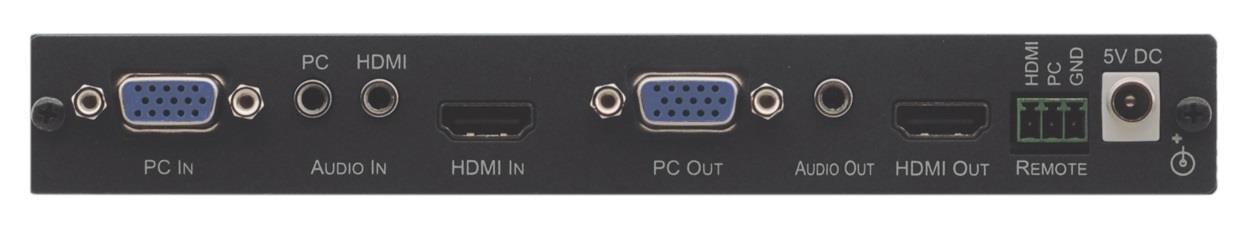

Connections
- Video inputs
- 2
- Video outputs
- 1 Mirrored outputs
- Video in
- HDMI, VGA
- Video out
- HDMI, VGA
- Audio inputs
- 3,5mm tele x2
- Audio outputs
- 3,5mm tele
Functions
- Scaler
- Yes
- USB passthrough
- No
- Control
- Contact closure, Front buttons, On-screen display
Energy
- Power Supply
- 5V DC, 1.1A external POS
Measurements and weight
- Width
- 187.5 mm
- Depth
- 115 mm
- Height
- 25.4 mm
- Net weight
- 0.5 kg
Various
- Mounting
- Freestanding/Shelf
- Included Accessories
- Power supply
- Warranty
- 7 years
Packaging info
- Packaging size
- 353 x 172 x 60 mm
- Packaging weight
- 904 g
