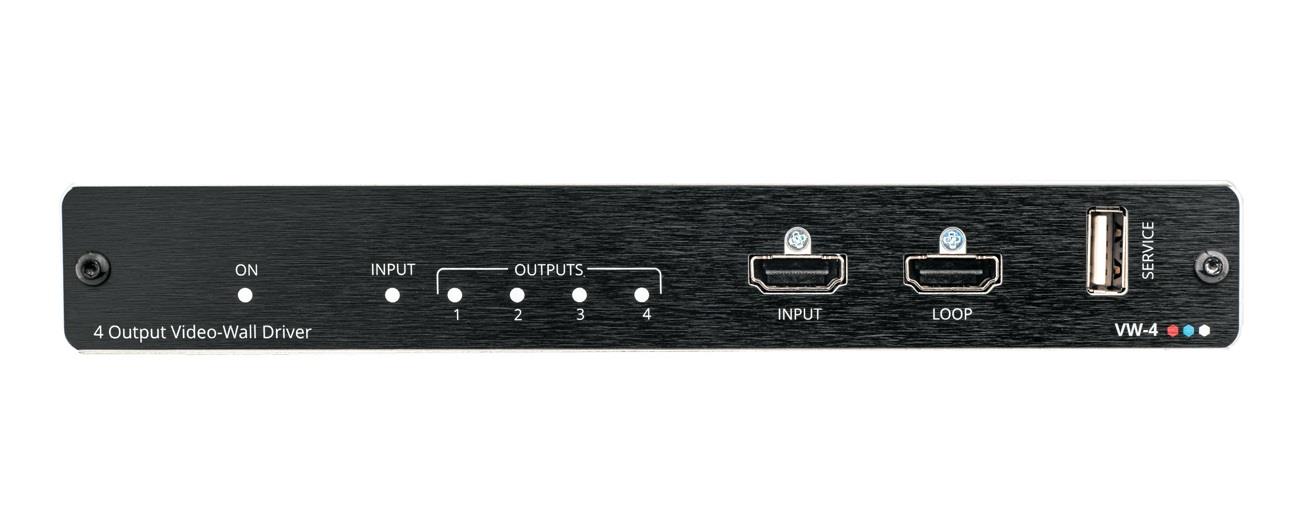

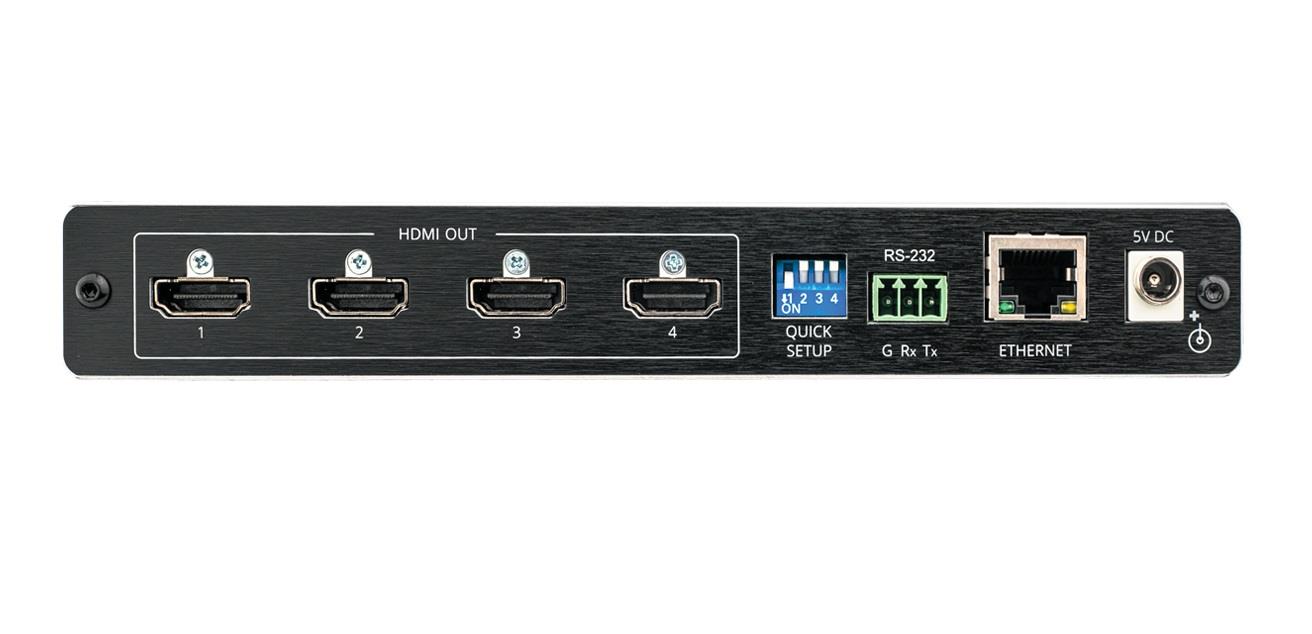

VW−4 is a 4−output video wall driver designed to quickly and easily configure and manage video walls. Use one VW−4 device to create any wall configuration with up to 4 displays, for example, a 2x2, 4x1, 1x4, 2x1, 3x1 video wall. Connect additional devices to create walls of any size and configuration of up to 64 displays. Configure a single or multiple device setup using the VW−4 app via Ethernet or RS−232, or quickly configure a basic setup using the local dip switches.
Key features:
- Scalable Video Walls — Create and manage a video wall of up to 4 displays or, by adding devices, create video walls of up to 64 displays.
- Quick, Basic, Local Setup — Use front panel DIP–switches for basic setup of video walls up to 16 displays.
- Full Feature Configuration — Use the VW–4 app via Ethernet or RS–232 to set up video walls of up to 8x8 displays. Also use the app for the following: bezel corrections, HDCP status, factory reset, upgrading firmware, viewing network settings and copying EDID.
- Content Protection — Supports HDCP 2.2 on the input and loop output and HDCP 1.4 on the main outputs. HDCP can be disabled on the input.
- EDID Support — Upload EDID files, copy any output EDID to the input, and select from several built–in EDID files.
- Reliable Video — Features constant output sync and auto–sync off option that stops or delays the 5V shutoff when no input is detected.
- Auto Display Powering — CEC capabilities turn ON or OFF the connected displays according to the status of the input video.
- Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
General
- Model
- VW-4 | HDMI, Videowall Driver
- Application
- Videoväggs processor
Image specification
- Resolution
- 3840x2160 Input signal. (4x 1920x1080 Output signal).
- Refresh rate
- 60 Hz
- Chroma subsampling
- 4:4:4
Connections
- Video inputs
- 1
- Video outputs
- 4
- Video in
- HDMI
- Video out
- HDMI
- Audio inputs
- HDMI
- Audio outputs
- HDMI
Functions
- Scaler
- No
- Video operation modes
- Videowall/Tileing
- USB passthrough
- No
- Control
- Ethernet/IP (RJ-45), Front buttons, PC software, RS-232
Energy
- Power Supply
- 5V DC external POS
Measurements and weight
- Width
- 190 mm
- Depth
- 195 mm
- Height
- 27 mm
- Net weight
- 0.9 kg
Various
- Mounting
- Freestanding/Shelf
- Included Accessories
- Power adapter, bracket set, rubber feet
- Warranty
- 7 years
Packaging info
- Packaging size
- 161 x 124 x 91 mm
- Packaging weight
- 1.40 kg
