Native Microsoft Teams Rooms system BaseKit - Without Camera/Audio

Engineer Your Teams Meeting with MCore Kit-MS
Design your own solution for Microsoft Teams Rooms with the MCore Pro mini-PC and MTouch Plus touch panel.
Users can choose camera and audio equipment. The bundle solution brings a premium and native Microsoft Teams Room meeting experience you need to interact, connect and collaborate with internal and external users seamlessly and intelligently.
Note! Add camera + audio equipment for a complete system.

Multi-mounting Options Simplified Connections
The MCore Pro mini-PC can be set up on the wall or on a conference table in Microsoft Teams room according to particular room layout. Also, in all Yealink MVC room systems, the MCore cable management solution integrates data and power supply into one CAT5e cable, simplifying the complicated connections and reducing the deployment time of video conference equipments.

MTouch Plus Touch Panel
Yealink MTouch Plus is the specific-designed Yealink third-generation touch panel with a unique appearance and all-in-one features. With an 11.6-inch anti-fingerprint and anti-glare IPS large screen, MTouch Plus provides you with a more comfortable control experience during the meeting. Yealink MTouch Plus supports controlling meetings by multiple touch panels simultaneously* and allowing multiple participants to control the meeting synchronously. It supports screen sharing via third-party* and wireless BYOD features*, and you can join the meeting with only one-time touch and share your screen anytime. With more deployed methods for MTouch Plus, you can mount it on the wall and lay it flat or fix it on the desktop according to your needs through a cleverly designed expansion bracket. Working with the RoomSensor, it can automatically detect participants entering the meeting room and automatically wake up the whole system, allowing you to experience different meeting room features.

Remote Management
Yealink MVC series video conference room solution supports the Yealink Device Management Platform/Cloud Service. You can manage, monitor, configure, update and diagnose all Yealink audio and video devices within the video conference kits and peripherals on this platform remotely.

MCore Pro (v2) Mini-PC

  • CPU: Intel 11th-gen Intel i5-1135G7
  • RAM: 8 GB Ram
  • Storage: 128 GB SSD
  • Metal dustproof heat sink
  • Support TPM 2.0
  • 3x HDMI out, support future upgrades for triple screen and 21:9 displays
  • Built-in CEC chip, compatible with TVs certified by the CEC Association
  • Built-in EDID module, configurable to the appropriate HDMI output resolution

MTouch Plus Touch panel

  • 11.6-inch IPS 1080P screen, more comfortable operation
  • Optional PD power supply to power the laptop when projecting (supported)
  • With CTP28, multi-session screen control can be realized (H2 support)
  • Support WPP30 wireless screen sharing+ wireless BYOD (Only in combination with UVC86)
  • Support RoomSensor, automatic wake-up covering a larger area and more accurate area. (Supported)
  • MTouch Plus supports both table-top fixed and wall-mounted deployments

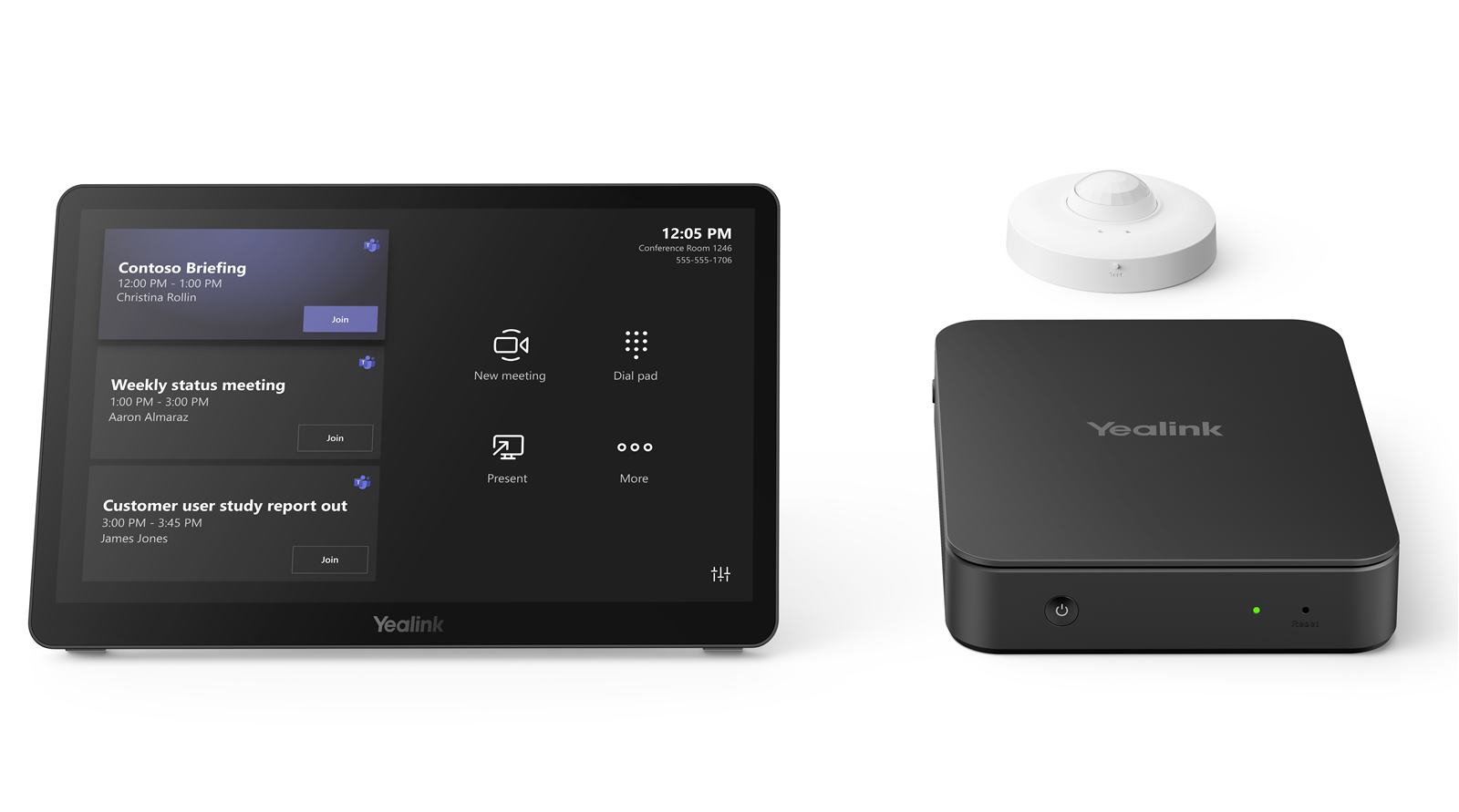

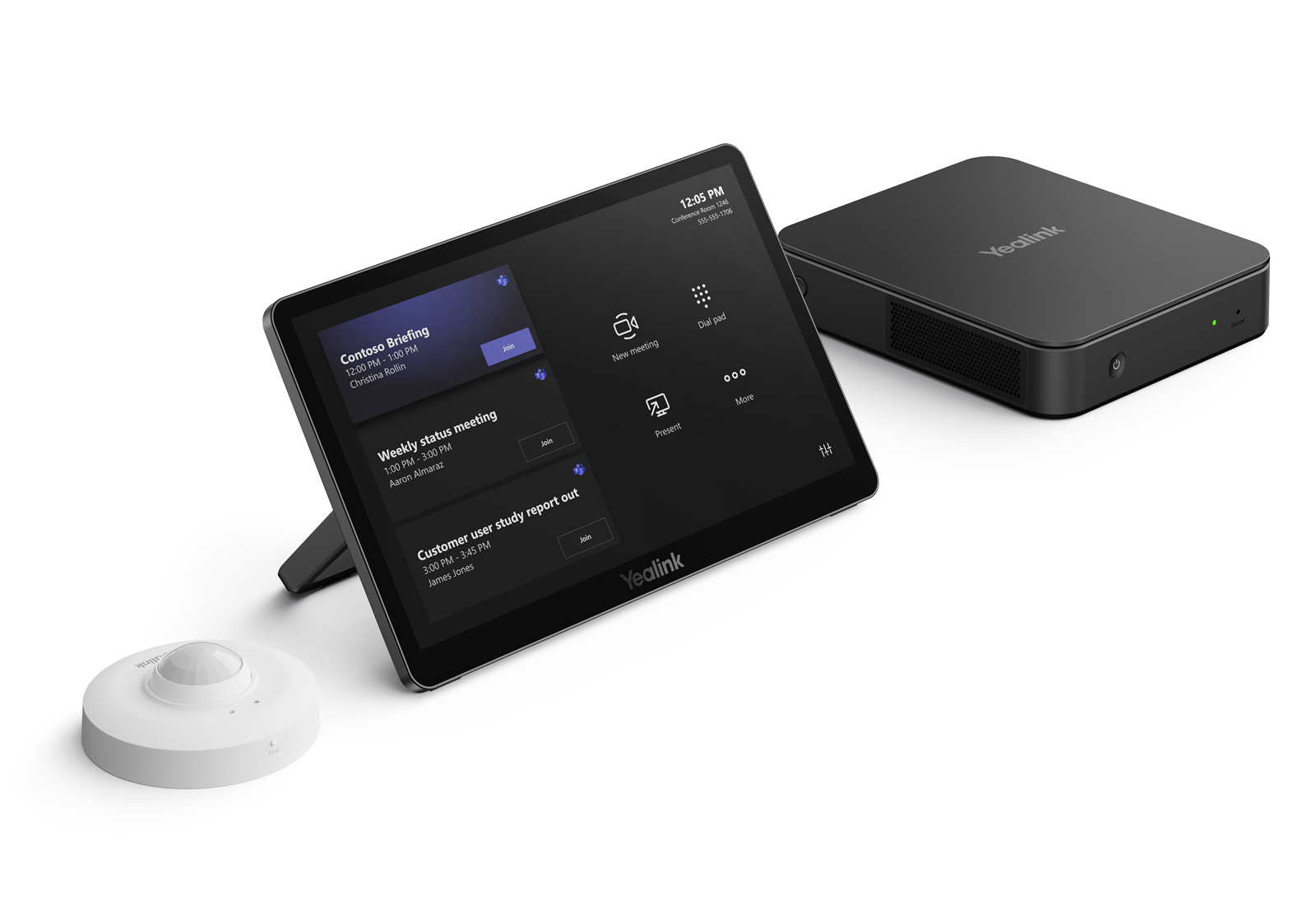

Included in the kit:

  • 1x Mini-PC with INTEL Coreā„¢ i5 quad-core CPU with Power Supply, Mount Bracket, 3x HDMI Cables.
  • 1x MTouch Plus 11.6 inches touch console
  • 1x RoomSensor
  • The mini-PC computer preloads Windows 10 IoT Enterprise OS and license, Microsoft Teams Rooms App, as well as Yealink Camera Control Plug-in
  • Including 3-year hardware warranty


General

Application/Certification
Microsoft Teams Room
Platform/OS
Windows

Camera

Camera type
No Camera

Audio specifications

External microphone
Yes Add optional external microphones like VCM34/VCM38/CPW90
External speaker
Yes Add optional speakers like MSpeakerII Soundbar

Communication

Ethernet
Yes 10/100/1000M Ethernet Port
Wi-Fi
Built-in Built-in to MCore Pro Mini-PC; IEEE 802.11 a/b/g/n/ac/ax, Built-in to MTouch Plus Touch Panel (for Yealink wireless presentation device only)
Content sharing
Yes, USB-C with HDMI adapter connected to MTouch Plus Touch Panel. Power delivery available via USB-C
Wireless image sharing
Yes, via optional WPP30 wireless share pod/dongle, Airplay, Miracast or GoogleCast to MTouch Plus Touch Panel
Wired BYOD
No
Wireless BYOD
Yes, via optional WPP30 wireless share pod/dongle, Only in combination with UVC86 camera.

Connections

Video in
USB-C With HDMI adapter to MTouch Plus Touch Panel
Video out
HDMI x3 with CEC support, with built-in EDID adapter. HDMI 1 supports 5K 21:9 resolution
USB connection
USB-A x4 on MCore Pro Mini-PC
USB standard
3.0

Energy

Power Supply
Mini-PC: Input: 19V, 4.74A

Dimensions and weight

Width
168 mm Mini-PC
Depth
197 mm Mini-PC
Height
39 mm Mini-PC
Net weight
0.69 kg Mini-PC

Additional information

Color
Black
Included Accessories
See product text above
Warranty
3 years

Packaging info

Packaging size
364 x 279 x 258 mm
Packaging weight
4.38 kg
