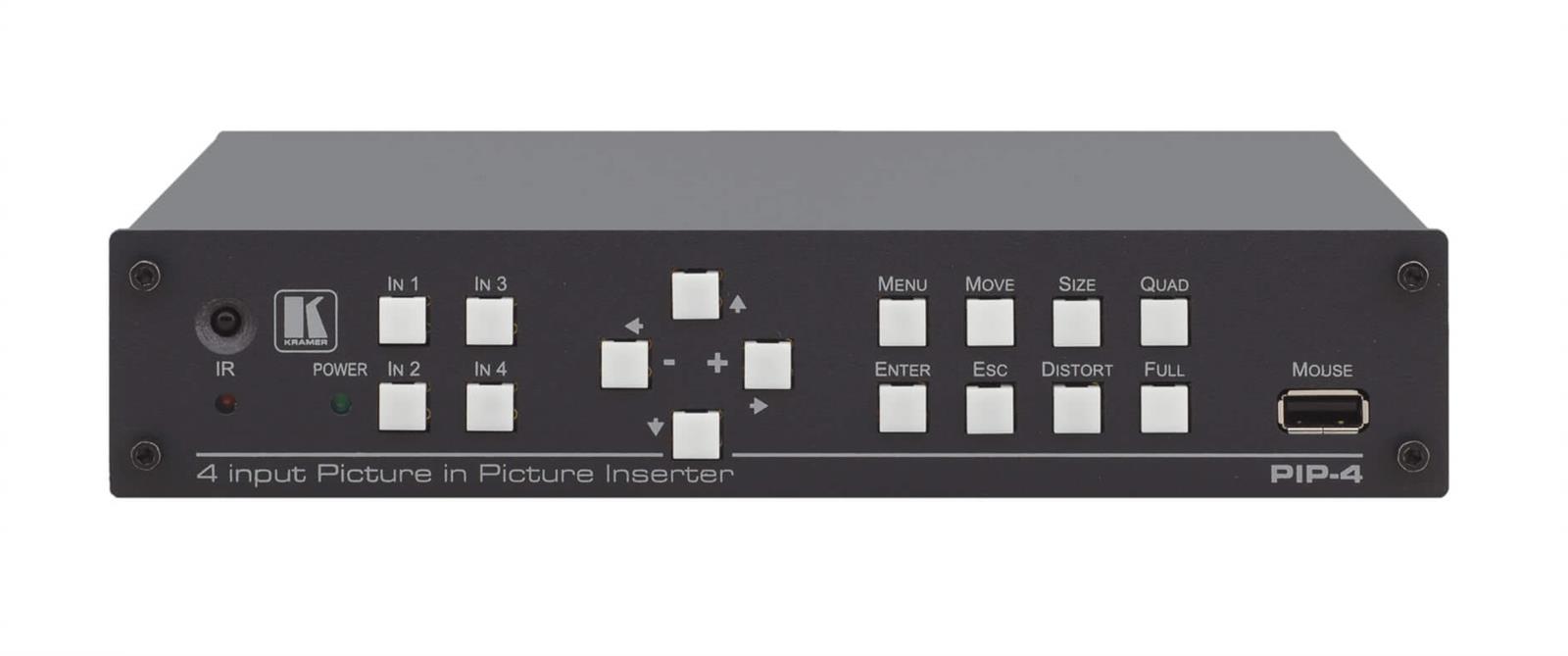

The PIP−4 is a high−performance picture−in−picture inserter for composite video signals. The PIP output can display up to four images simultaneously, each of which can be sized and positioned individually.
- Picture–In–Picture Options — All inputs can be displayed simultaneously with variable window sizing and positioning and freeze frame capability. Quad button displays 4 equal–sized images.
- Multi–Format Operation — s–Video and composite video outputs.
- Multi–Standard Operation — PAL & NTSC compatible inputs & outputs (no format conversion).
- USB Mouse Connector — For convenient navigation and control, including the OSD.
- Built–In ProcAmp — Brightness, contrast, and saturation for each input.
- Flexible Control Options — Front panel, IR remote, mouse (with OSD), RS–232 & Ethernet.
APPLICATIONS
- Video production studios for source monitoring.
- Teleconferencing using one screen.
- Home theater multi–channel monitoring.
- Security applications.
General
- Model
- PIP-4
- Utök. text för namn
- 4 Composite Video Picture–in–Picture Inserter
- Application
- Image processor

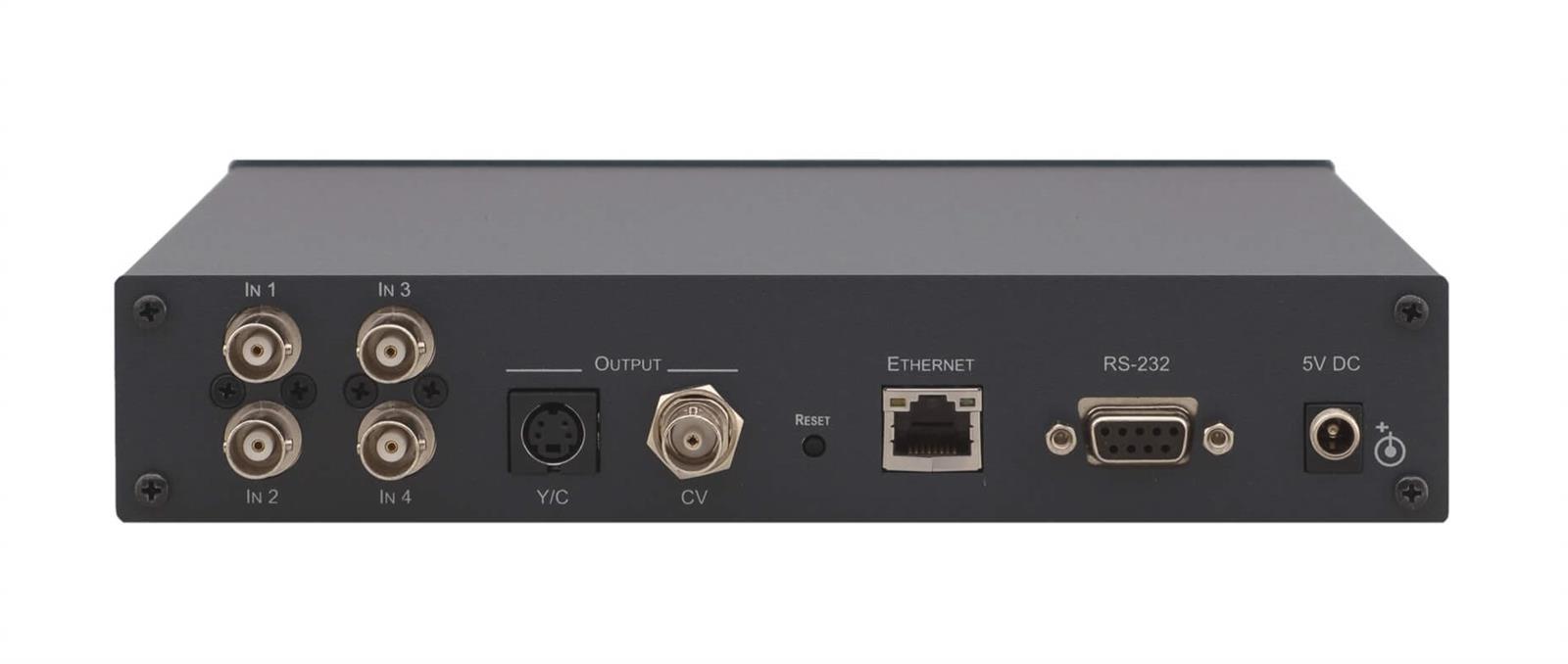

Connections
- Video inputs
- 4
- Video outputs
- 1
- Video in
- Composite video
- Video out
- Composite video mirrored
- Video out
- S-Video mirrored
Functions
- Scaler
- No
- Video operation modes
- PiP - Picture in Picture
- USB passthrough
- No
- Control
- Ethernet/IP (RJ-45), Front buttons, IR-Remote, On-screen display, RS-232
- Control
- USB-A USB Mouse (with OSD)
Energy
- Power Supply
- 5V DC, 560mA
Measurements and weight
- Width
- 214.6 mm
- Depth
- 163 mm
- Height
- 43.6 mm
- Net weight
- 0.9 kg
Various
- Mounting
- Freestanding/Shelf
- Included Accessories
- Power supply, RC–IR3 Infrared Remote Control
- Warranty
- 7 years
Packaging info
- Packaging size
- 340 x 67 x 206 mm
- Packaging weight
- 1.48 kg
