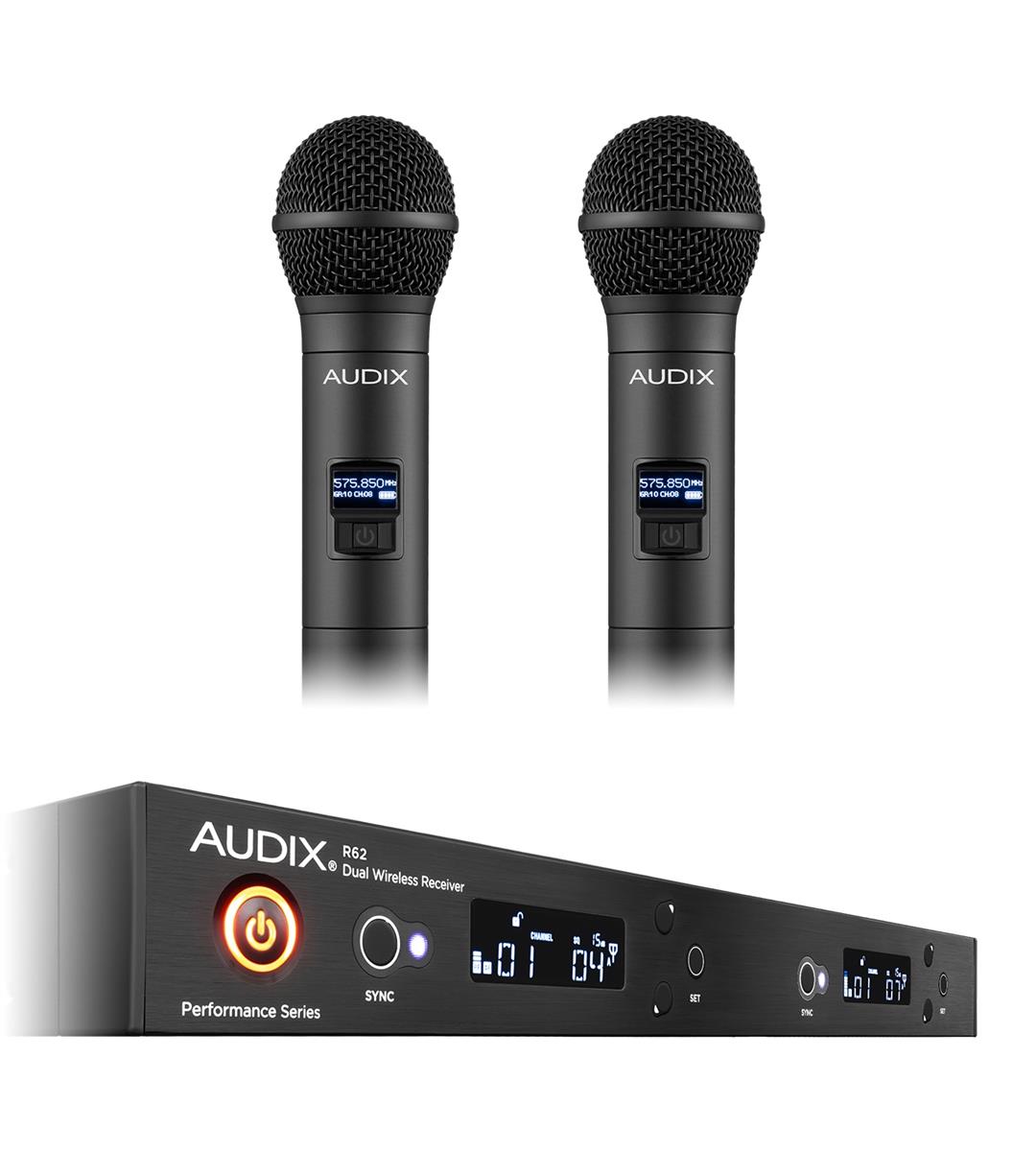

WIRELESS MICROPHONE SYSTEM – R62 TWO CHANNEL TRUE DIVERSITY RECEIVER WITH TWO H60/OM2 HANDHELD TRANSMITTERS
A professional true diversity handheld wireless system featuring the Audix OM2.
The OM2, our best-selling vocal microphone, has slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.
A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and an antenna distribution system for up to four systems (8 channels).
FREQUENCY RANGE
522 MHz – 586 MHz
FEATURES
R62 Two-Channel True Diversity Receiver
- 64 MHz Wide spectrum tuning receiver
- 2560 Tunable frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam

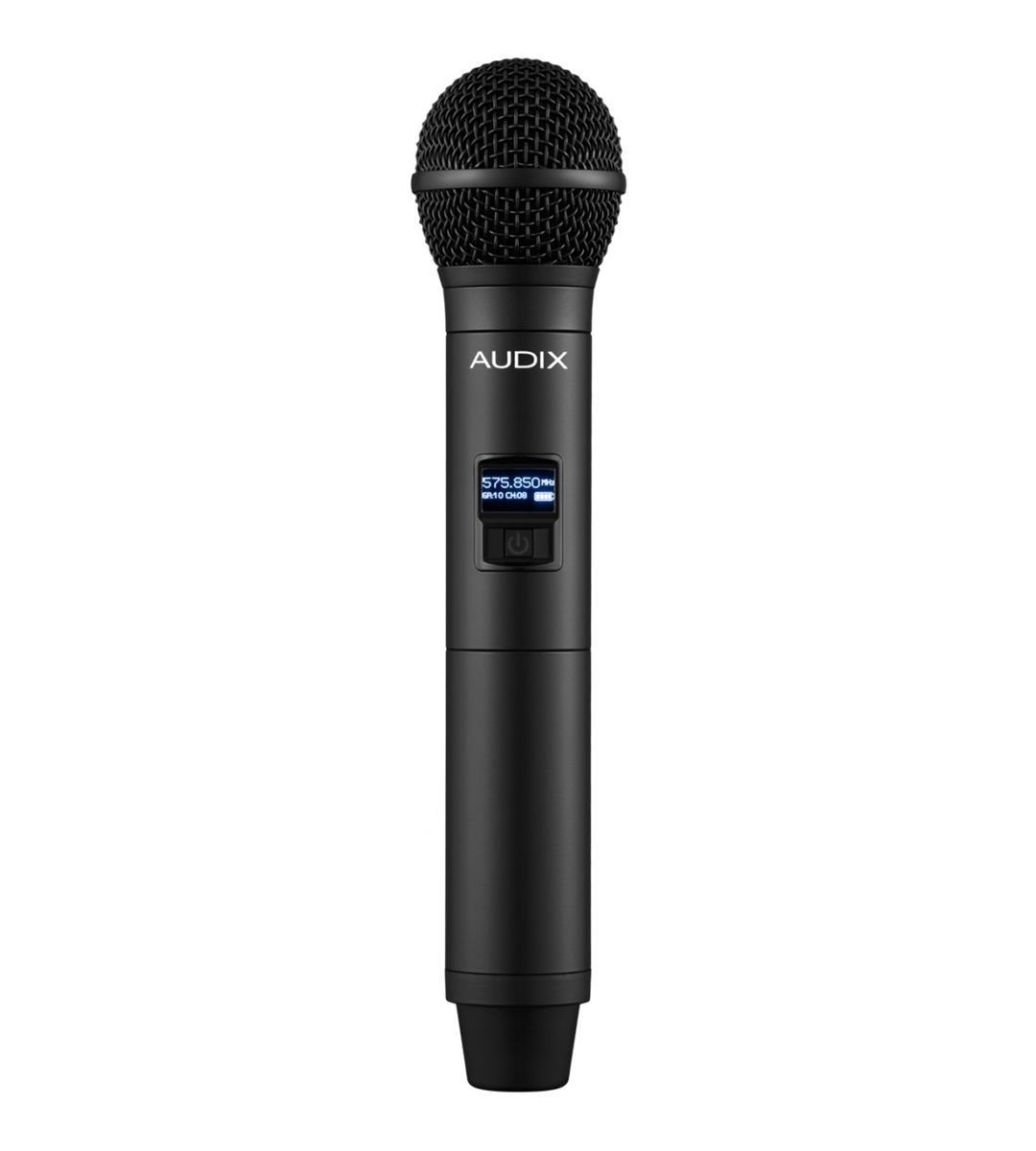

H60 OM2 Handheld Transmitter
- 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
- Durable metal housing
- 14 Hour run time – AA batteries
General
- Microphone application
- Hand held
Connections
- Audio outputs
- 6,3mm tele x2 (Unbalanced)
- Audio outputs
- XLR x2 (Balanced)
Wireless specification
- Radio frequency
- 522 MHz - 554 MHz
- Number of channels
- 2 pcs.
- Simultaneous channels
- 12 pcs.
- Wireless range
- 91 m
Energy
- Power Supply
- 100 - 240V / 50 - 60 Hz, 12V DC, 1A
- Battery
- 2x AA, 1,5V
- Battery life
- 14 h
Dimensions and weight
- Width
- 205 mm Reciever
- Depth
- 206 mm Reciever
- Height
- 44 mm Reciever
- Net weight
- 0.87 kg Reciever
Additional information
- Included Accessories
- R62 64 MHz 2-Channel True Diversity Receiver, 2x H60 Handheld Transmitters with OM2 Capsule Modules, 2x Antennas, Audio Cable, 2x Clips, 2x Pouches, 4x AA Batteries, Power Supply, User Guide, Rackmount Hardware, 2x BNC Cables
- Warranty
- 3 years
Packaging info
- Packaging size
- 472 x 284 x 164 mm
- Packaging weight
- 4.84 kg
