InstaShow® VS20 Wireless Presentation System to Sync Up Hybrid Meetings Seamlessly
Integrate Meetings Wirelessly with Optimal Voice Pickup Quality
- Plug and play to present and speak in every meeting
- The exclusive Expandable Wireless Microphone System picks up voice all around for medium to large-size rooms in the video conference
- Seamless audiovisual devices integration wirelessly via InstaShow® VS Assist app
- Native 4K transmission displays every detail clearly and smoothly
- WPA2, AES 128-bit and router-level internal channel isolation secure your information
Bring Your Own Meeting Seamlessly
VS20 integrates with button microphone, 4K transmission, and InstaShow®’s router-level chipset for effective collaboration and absolute information security. Ideal for medium to large-size rooms, VS20 facilitates hybrid meetings with affordable efficiency.
Audiovisual Plug-and-Play
Simply plug and play to present and speak freely via InstaShow® in every hybrid meeting.
Smooth Stability
VS20 effortlessly delivers high-quality 4K transmission band-width with smooth and stable audiovisual quality.
Wireless Integration
Integrate camera, microphone, and screen sharing via one app into a cable-free hybrid video conferencing room.
Information Security
WPA2, AES 128-bit and router-level internal channel isolation provide transmission and data security.
Instant Mirroring and Collaboration
InstaShow® has zero learning curve, so you can use it in your daily routine and start sharing immediately with your own mobile devices.
No Barrier to Efficient Collaboration
Multi-Device Compatibility
Conveniently connects with laptops, smartphones and tablets running Windows or iOS.
4-Way
Split Screen
Up to 4 presenters can share content smoothly on one screen.
Touchback
Control
Presenters may utilize interactive display touchscreens without switching back to the laptop.
Switchable Interface
InstaShow® VS20 Button transmitter offers both HDMI and USB-C connectivity for different devices.
*Please use the Phillips #0 screwdriver to loosen, remove and replace the cable.
Reliable Image & Reception Performance
InstaShow® VS20 provides industry-leading image and reception performance, seamlessly
integrated into an efficient and affordable solution.
Have You Covered with Clear Voice
Empower your meetings with InstaShow® Button Microphone and eliminate poor audio quality and miscommunication. Even when participants are spread out, VS20 provides optimal sound quality.
Omnidirectional Microphones
Each InstaShow® Button’s wireless microphone has a four-way voice reception design that picks up all voices clearly up to 1.5m radius.
Plug-and-Play Microphones Reception
Simply plug and play presentation materials and speak freely via InstaShow® Button Microphones during video conferences.
Mute Key on InstaShow® Button
Each wireless microphone can be individually muted at the touch of a button for efficient and engaging meetings.
Have You Impressed with Clear Video
4K Screen Mirroring
VS20’s native 4K transmission video frame rate displays highly detailed slides, infographics and videos clearly and smoothly.
Smooth and Stable Transmission
VS20 employs Clear Channel Assessment (CCA) to automatically detect and select the best channel for reliably perfect Wi-Fi performance
Seamless Audiovisual Integration
IT-Friendly for Video Conferencing System Integration

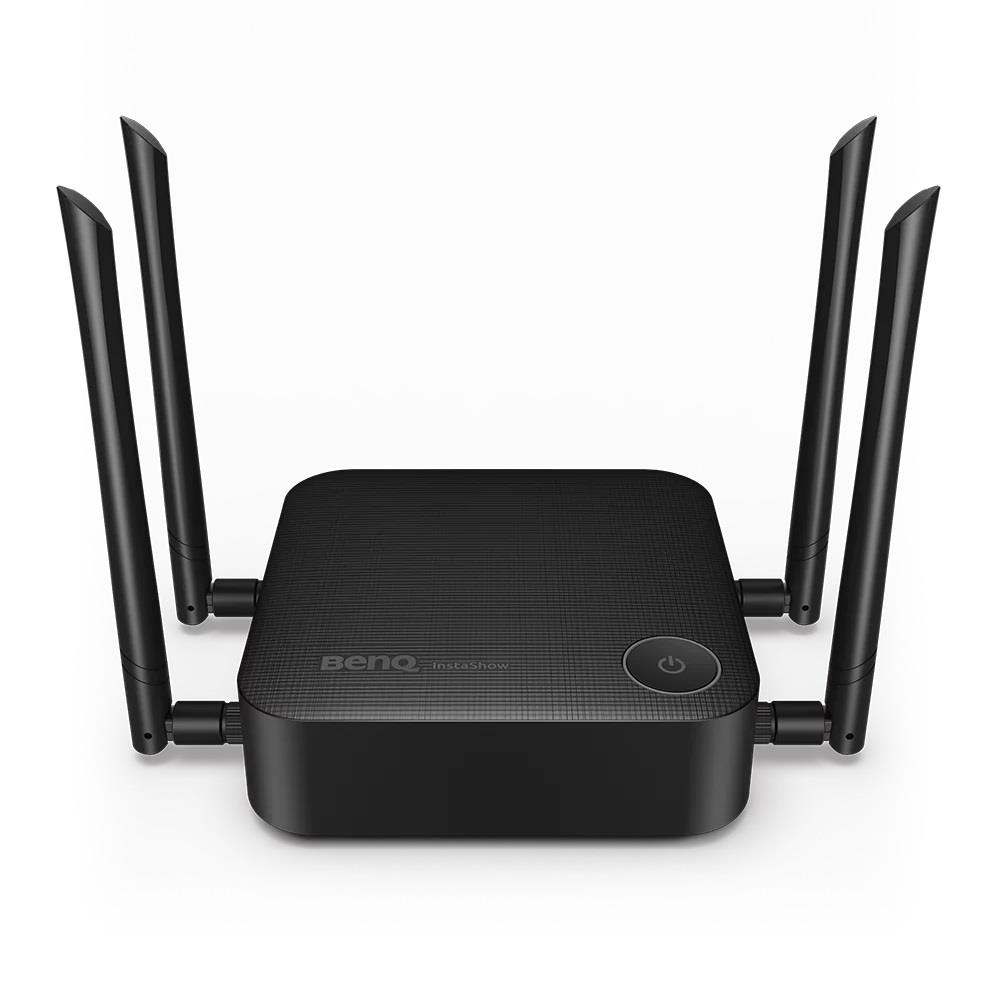

Just connect your display and video bar to your InstaShow® Host (Rx) to integrate all your video conferencing systems easily.
Camera & Screen Sharing via One App
InstaShow® VS Assist app combines the meeting room video bar, camera, and screen sharing under the same network to all video conferencing assets for both local attendees and remote participants.
Streamline Your Meetings and Elevate Your Boardroom
Expandable Wireless Microphone System
InstaShow® Button Microphone can pick up each participant’s voice all around for clear collaboration regardless where they sit in the meeting room.
- Wireless Integration of Hybrid Meeting
- Wireless Cascade Microphone
- Algorithms for Voice Mixing
- Up to 20m Distance
For Hybrid Meeting from Medium to Large Conference Room
InstaShow® VS20 offers multipoint voice pickup and clear transmission up to 20m for medium to large conference rooms. Exclusive wireless expandable microphone technology supports up to 32 paired microphones with each optimizing sound quality within a 1.5m range.
- Mid-sized Room
- Large-sized Room
General
- Application
- Wireless Conferencing With InstaShow® VS Assist app (Windows only). Integrate camera, microphone, and screen sharing via one app into a cable-free hybrid video conferencing room.
- Application
- Wireless Presentation
Functions
- Max connected users
- 32 pcs.
- Users on screen
- 4
- Extended desktop
- Yes
Video specifications
- Max output resolution
- 4096x2160
- Max Framerate
- 60 FPS
compatibility
- Compatibility PC
- Yes InstaShow Button - Presentation/BYOM
- Compatibility Mac
- Yes InstaShow Button - Presentation
- Compatibility iOS
- Yes Airplay
- Compatibility Android
- Yes
- Compatibility Chromebook
- Yes
Connections
- Wireless sharing
- AirPlay
- Wireless sharing
- Hardware dongle With USB-C, Interchangeble to HDMI+USB-A (one cable included)
- Wireless sharing
- Miracast
- Donble included
- Yes 2x InstaShow Buttons
- Cable source
- HDMI x1
- Video out
- HDMI x1 HDMI 2.0 Up to 4K 60Hz, with HDCP.
Interactivity
- Touch support
- Yes HID Touchback suport, for control of connected PC from interactive display
- White/Blackboard function
- No
- Moderator function
- No
Communication
- WiFi
- Yes 5GHz/2.4GHz, 2T2R
- WiFi Standard
- IEEE 802.11ac, IEEE 802.11n
- Wireless range
- 20 m InstaShow Button
- Dual/guest network
- No
- Network integration
- No
- Managed
- No
- Security
- WPA2 AES 128bit / WPA2 enterprise 256bit
Energy
- Power Supply
- External Pos. DC 12V±10%, 3A
- Consumption Stand-by
- 0.5 W
- Consumption Typical
- 11 W Receiver
- Consumption Max
- 36 W Receiver
Dimensions and weight
- Width
- 145 mm
- Depth
- 145 mm
- Height
- 46 mm
- Net weight
- 0.33 kg
Additional information
- Included Accessories
- 1x InstaShow BaseUnit, 2x InstaShow Button, 1x Cradle, 1x HDMI Cable, 4x Antenna, 1x Tx Spare HDMI Cable, 1x Velcro Strap, 1x Quick Start Guide, 1x Safety Statement, 1x Power Adapter, Screws.
- Warranty
- 3 years
Packaging info
- Packaging size
- 410 x 213 x 157 mm
- Packaging weight
- 2.47 kg
