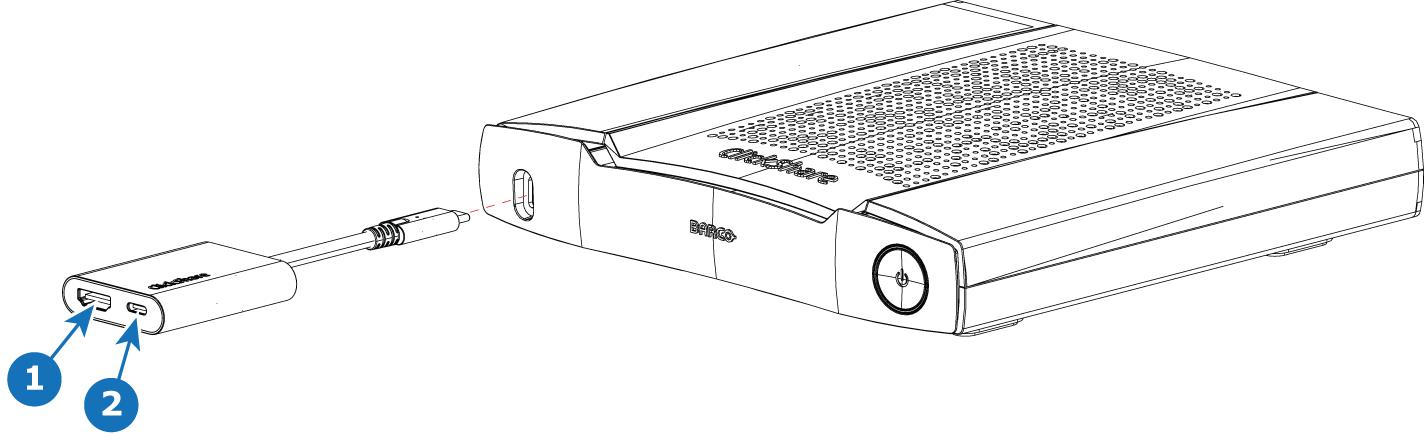

The front USB Type-CTM port used in combination with the HDMI-in to USB-C converter can be used as HDMI input. This port supports the wired room dock functionality where the camera will be displayed on the PC screen.
- To connect HDMI sources to the Base Unit this converter kit must be used. It enables to connect an HDMI source to the Base Unit and a USB Type-CTM port remains available.
- To use the converter kit as a HDMI input, you need to enable this in the Base Unit Configurator (Display & Audio → Inputs). For more info see the installation manual.
- With wired roomdock, the user can share high resolution and frame rate content and connect to the room audio and video over a wired connection.
This product is an option for the following products:
ClickShare Bar Pro
ClickShare CX-50 2nd generation
ClickShare Hub Pro
ClickShare Hub Pro + Sennheiser TeamConnect Bar M room system
ClickShare Hub Pro and Control Panel Kit
General
- Cable type
- Adaptor
- Conductor/Technology
- Copper (active)
Video
- Connection from
- HDMI HDMI 2.0
- Connection from
- USB-C USB 3.2 Gen1 (5Gbps)
- Connection to
- USB-C USB-C DisplayPort™ 1.2
Additional information
- Color
- Black
Packaging info
- Packaging size
- 183 x 58 x 27 mm
- Packaging weight
- 90 g
