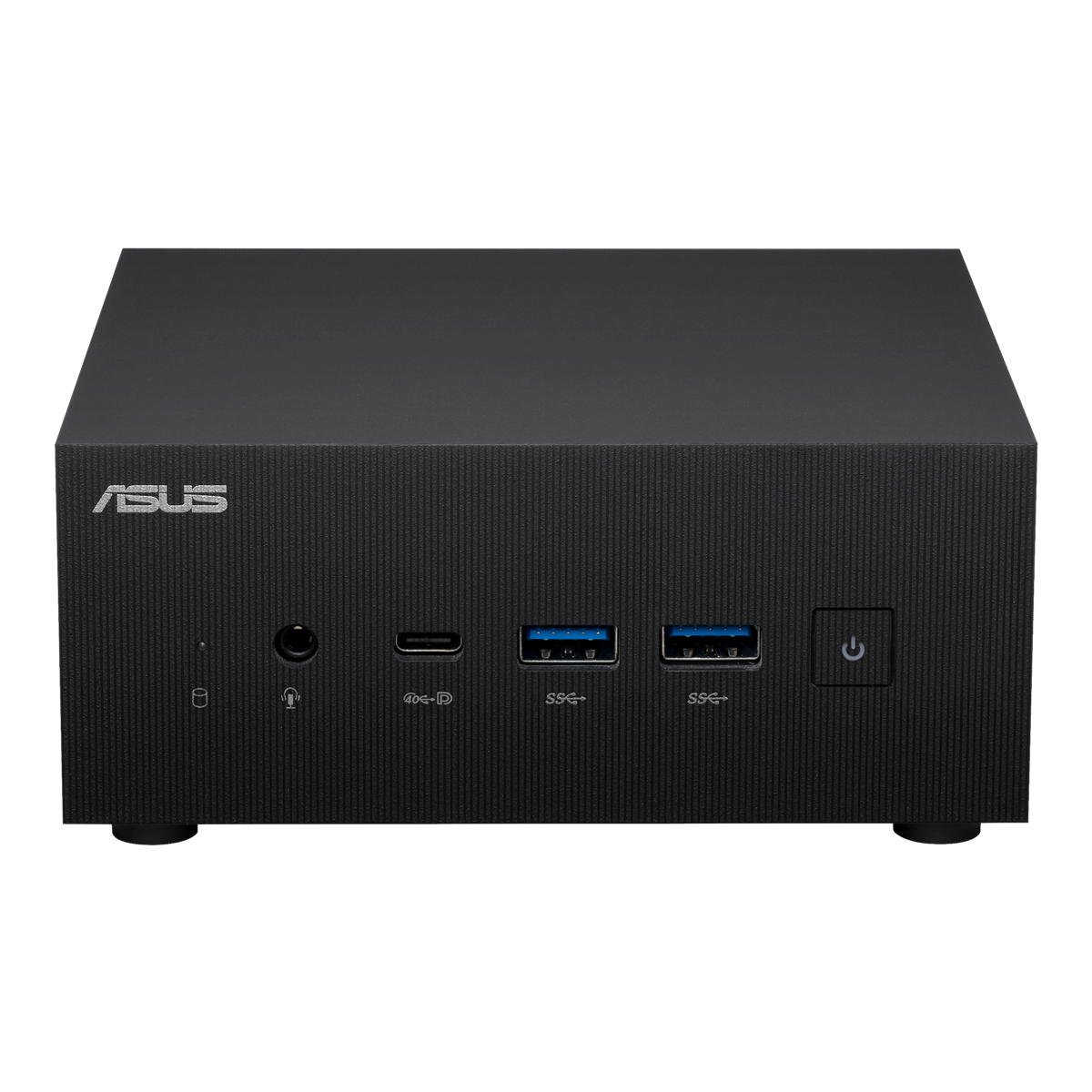

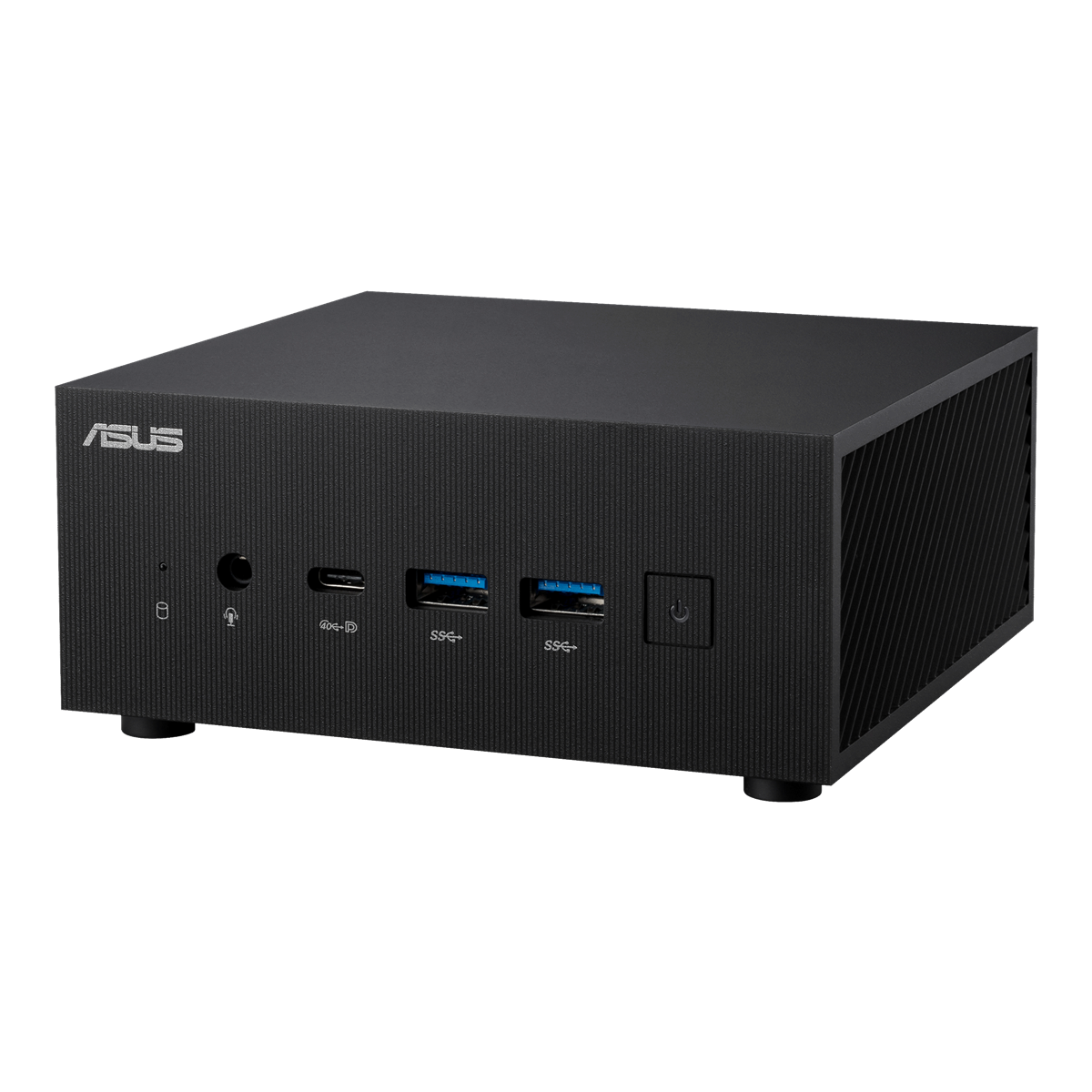

Ultra-compact mini PC with AMD Ryzen™ 7000 H series processors and AMD Radeon ™ Graphics, supports Quad-4K displays and 8K resolution, 2x PCIe® Gen4x4 M.2 NVMe® SSD, 2.5 Gb LAN, WiFi 6E
- Powered by the latest AMD Ryzen™ 7000 Series Processor with Radeon™ graphics
- Quad-4K displays support and 8K UHD support
- Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
- Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
- Configurable Ports support DP1.4/VGA/COM/HDMI options
- 24/7 reliability — Extensively tested to ensure long-term dependability
Ultra-compact Mini PC provides flexible, comprehensive solutions
ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 7000 Series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe®Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.
System & CPU Performance
PN53 delivers a system performance uplift of up to 10% better performance in daily multitask computing, comparing to previous generation - providing powerful computing capacity and enabling easy multitasking and smooth operation.
Graphics Performance
ExpertCenter PN53 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 55% in 3DMark Fire Strike and increasing 49% 3DMark Night Raid performance benchmarks.
Faster and Better DDR5 RAM
ASUS ExpertCenter PN53 is powered by the new AMD 7000 Series CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN53 provides excellent performance for daily computing tasks.
4K Resolution & Quad Display Support
Integrated AMD Radeon 600M series graphics enable ExpertCenter PN53 to display stunning 4K UHD videos and imagery. With HDMI, USB-C DisplayPort and a configurable port that can be specified for video signal output, PN53 lets you extend your workspace across up to four displays.
Exceptional Connection Experience – Wi-Fi 6 & Wi-Fi 6E
The built-in WiFi 6 module allows ExpertCenter PN53 to deliver smooth high-resolution video streams, fewer dropped connections, and faster performance farther away from the router, even in dense environments. WiFi 6E is an expanded version of WiFi 6 to support high-speed 160 MHz channels.
Superfast 2.5 Gbps Networking
2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.
Power Delivery (PD) – Input & Output
PD input lets the monitor* provide power to ExpertCenter PN53 via a single USB-C cable, allowing for a neater workstation. ExpertCenter PN53 is able to receive power and deliver a DisplayPort signal via this connection, and also supply power to charge mobile devices.
- CPU Brand
- AMD
CPU
- CPU Model
- Ryzen 5 7535H
- CPU Speed
- 3.3 GHz
- Number of cores
- 6 pcs.
- Number of threads
- 12 pcs.
Memory
- Memory
- 0 GB
- Memory Type
- SO-DIMM DDR5
- Memory slots
- 2 pcs.
Graphics
- Brand
- AMD
- GPU Model
- Radeon™ Graphics
- Speed
- 1.9 GHz
Storage
- Device Type
- 2 x M.2 2280 PCIe Gen4x4 slot, 1 x SATA 6Gb/s connector for 2.5” 7mm HDD
- Capacity
- 0 GB
Ports
- HDMI
- Yes
- DisplayPort
- Yes
- USB type-A
- Yes
- USB type-C
- Yes
Communications
- Ethernet
- Yes
- WiFi Standard
- Wi-Fi 6E
- Bluetooth standard
- Bluetooth 5.2
Dimensions and weight
- Width
- 120 mm
- Height
- 58 mm
- Depth
- 130 mm
- Weight
- 0.9 kg
Additional Information
- Color
- Black
- Warranty
- 1 years
Packaging info
- Packaging size
- 295 x 180 x 73 mm
- Packaging weight
- 1.72 kg
Packaging info (5 pcs)
- Packaging size
- 363 x 309 x 211 mm
- Packaging weight
- 9.24 kg
