Wireless Lavalier Microphone System with ADX10, A-band: 522 MHz — 554 MHz

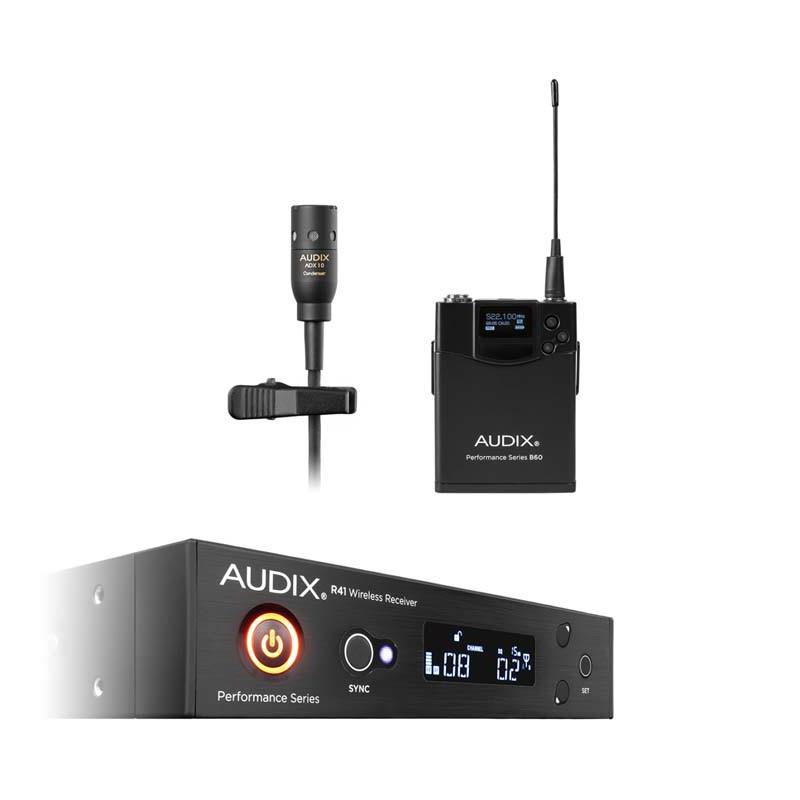

WIRELESS MICROPHONE SYSTEM – R41 DIVERSITY RECEIVER, B60 BODYPACK TRANSMITTER WITH ADX10 LAVALIER MICROPHONE
A value-packed bodypack diversity wireless system featuring the ADX10 cardioid miniature condenser microphone.
The ADX10 is a lightweight, low-profile mic designed for lavalier applications such as speech, presentation, and theatrical production. With the ability to accurately capture and reproduce vocals from a comfortable distance of 4-8 inches, the ADX10 has a natural sound with an exceptional response that is resistant to feedback and easy to use.
AVAILABLE FREQUENCY BANDS
A = 522 MHz – 554 MHz
B = 554 MHz – 586 MHz

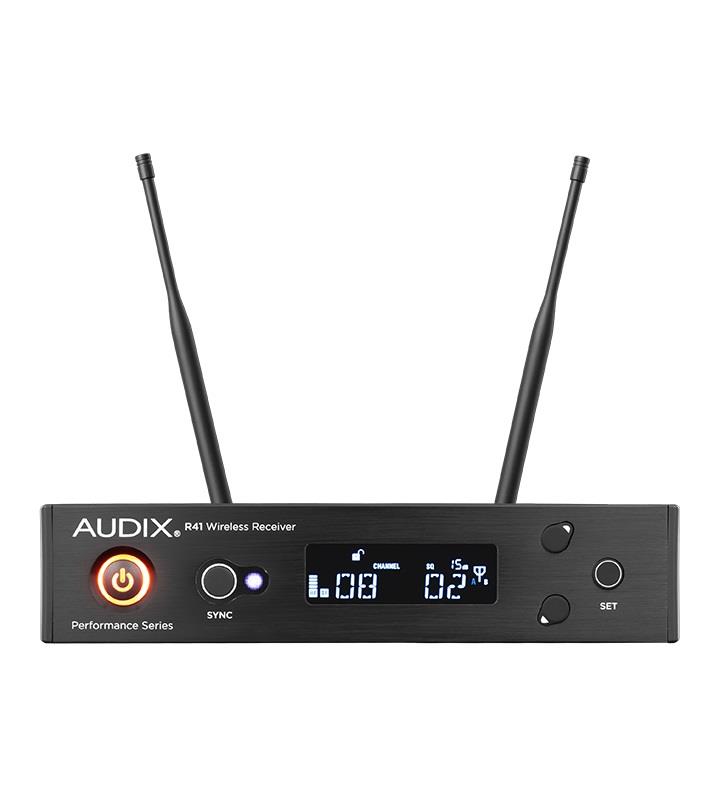

R41 Diversity Receiver
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies for quick, easy, and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam
B60 L10 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter with ADX10 lavalier
- Durable metal housing
- 14 Hour run time – AA batteries
General
- Microphone application
- Lavalier
Audio specification
- Microphone type
- Condensor Pre-polarized Condenser Vocal Microphone
- Directivity
- Cardioid
- Audio pickup range
- 20 cm 15-20cm
- Frequency range Min
- 50 Hz
- Frequency range Max
- 18,000 Hz
- Signal-to-noise ratio
- 65 dB
Connections
- Audio outputs
- 6,3mm tele Unbalanced
- Audio outputs
- XLR Balanced
Wireless specification
- Radio frequency
- 522 MHz - 554 MHz
- Number of channels
- 1 pcs.
- Simultaneous channels
- 16 pcs.
- Wireless range
- 91 m
Energy
- Power Supply
- 100 - 240V / 50 - 60 Hz, 12V DC, 1A
- Battery
- 2x AA, 1,5V
- Battery life
- 14 h
Dimensions and weight
- Width
- 205 mm Reciever
- Depth
- 206 mm Reciever
- Height
- 44 mm Reciever
- Net weight
- 0.87 kg Reciever
Additional information
- Included Accessories
- R41 Reciever, Rackmount Hardware, 2x Antennas, Audio Cable, Carrying Case, Power Supply, User Guide, B60 L10 Bodypack Transmitter, 2x AA 1.5 V batteries, ADX10 Lavalier Microphone
- Warranty
- 3 years
Packaging info
- Packaging size
- 395 x 304 x 76 mm
- Packaging weight
- 2.71 kg
