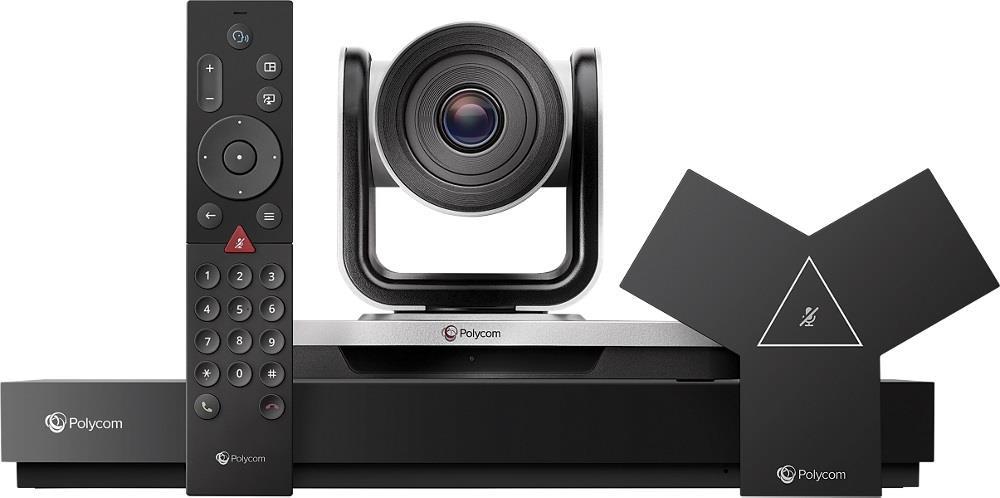

Help teams share ideas and express themselves clearly—in Ultra HD 4K. No ideas get left behind, because anyone can share wirelessly, annotate and capture content for later use. With detailed visuals and rich audio, people feel like they’re together in the same room. With noise cancellation built-in, audio distractions like background noise and side conversations are a thing of the past. G7500 is deployment friendly too, with an intuitive user interface and flexible set-up that increases adoption and utilization. The G7500 runs cloud service applications natively or the Poly Video app for standards-based calling and connection into
any provider or video system.

  • Premium audio quality and voice clarity.
  • Share content wirelessly from any device.
  • Content annotation and digital whiteboarding.
  • Customization and security for room control using REST APIs.

Benefits

  • Simplify the user experience by combining video conferencing and content sharing in one solution.
  • Make people feel like they are together in the same room with Ultra HD 4K for amazing richness and clarity when sharing content.
  • Minimize background noise from disrupting meetings with advanced audio technology including NoiseBlockAI.
  • Native support for cloud video platforms like like Zoom, Microsoft Teams, Ring Central, StarLeaf and GoToRoom means no room PC or Mac is required.

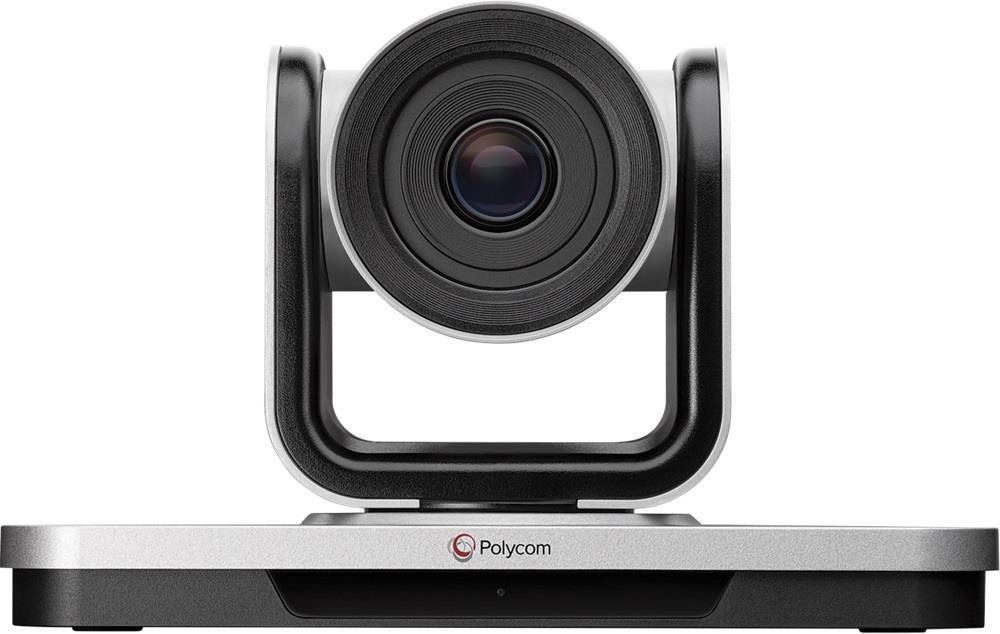

EagleEye IV 12x Camera
Polycom® EagleEye™ cameras provide the ultimate experience to optimize video collaboration. EagleEye™ IV and EagleEye™ Acoustic cameras are designed to meet your varying environments and applications in conjunction with Polycom® RealPresence® Group Series video systems. From huddle rooms, to desktops, classrooms to customized board rooms, Polycom EagleEye cameras deliver best in class video quality to all participants.

Camera Features

  • 1920 x 1080 sensor
  • 12x Optical zoom
  • High definition video transmission
  • Clear, crisp natural colors from precisely tuned optics
  • Pan/Tilt with quick, fluid movements with sharp focus
  • Camera power supplied by Polycom RealPresence Group Series video system eliminating the need for a power supply

IP Microphones
You can use a combination of IP-based Polycom table and ceiling microphones with your G7500 system (1x IP Table microphone included).
These microphones also support Polycom Acoustic Fence technology.
You can connect up to three of the following microphones directly to your system:

  • Up to 3x IP Table/Ceiling microphone arrays with up to 6m pickup range each (Se accessories)
  • Up to 4x Clink2 microphones or Soundstructure (using Poly Microphone IP Adapter)


Supported videoresolution
Up to 4K, 30 fps (TX and RX) from 2048 Kbps
Videostandards & protocolls
H.264 AVC, H.264 High Profile, H.265
Content resolution
Up to UHD 3840x2160

General

Application/Certification
H.323 up to 6 Mbps
Application/Certification
Microsoft Teams, Microsoft Teams Room
Application/Certification
SIP up to 6 Mbps
Application/Certification
USB BYOD USB Device mode
Application/Certification
Zoom
Platform/OS
Android
Room Size
Large room 8p+, Medium room 4-8p

Camera

Camera type
PTZ camera
Resolution
1920x1080
Framerate
30 FPS
Optical zoom
10 x
Digital zoom
2 x
Field of view (horizontal)
65 ° 85° with wide angle adaptor (option)
Pan movement +/-
100 °
Tilt movement down
20 °
Tilt movement up
30 °
Programmable presets
Yes Custom home
Auto framing/tracking
No

Audio specifications

Built-in microphone
No
External microphone
Yes Up to 3x IP microphone arrays connected (1x included)
Audio pickup range
6 m
Built-in speaker
No
External speaker
Yes Connects via 3,5mm audio output

Communication

Ethernet
Yes x1 10/100/1G Ethernet
Wi-Fi
Built-in 802.11a/b/g/n/ac (MIMO) Multichannel Concurrency
Content sharing
Content App support, AirPlay, Miracast, HDMI input, (Depending on platform)

Connections

Video in
HDCI camera in For Poly EagleEye Cameras etc.
Video in
HDMI For PC Content/Presentation
Video out
HDMI x2 For dual display support
Audio inputs
3,5mm tele
Audio inputs
Bluetooth 5.0
Audio inputs
Mic port (RJ-45) x3 For IP Microphones
Audio outputs
3,5mm tele
USB connection
USB-A x3 For touchscreen / 2:nd USB cameras or USB audio device (support for for Shure, Extron and QSC audio DSPs)
USB connection
USB-C x1 For USB BYOD, Device mode (PC)
USB standard
3.0 Camera connection

Energy

Power Supply
100 to 240 VAC, 50/60 Hz Auto sensing ext. power supply. Camera: 12V @ <1.2A power via Video conference system codec

Dimensions and weight

Width
349.2 mm Codec
Depth
139.7 mm Codec
Height
38.1 mm Codec
Net weight
0.95 kg Codec

Additional information

Color
Black
Included Accessories
Codec, Eagle Eye IV-12x cam, Poly IP Mic, BT Remote, 2x HDMI 1.8m, 1x CAT 5E 3.6m, 1x CAT 5E SHLD 7
Warranty
1 years 1 year return to factory parts and labor. Extendable with 1 or 3 years (option), Requires Maintenance Contract

Packaging info

Packaging size
415 x 250 x 330 mm
Packaging weight
5.43 kg
