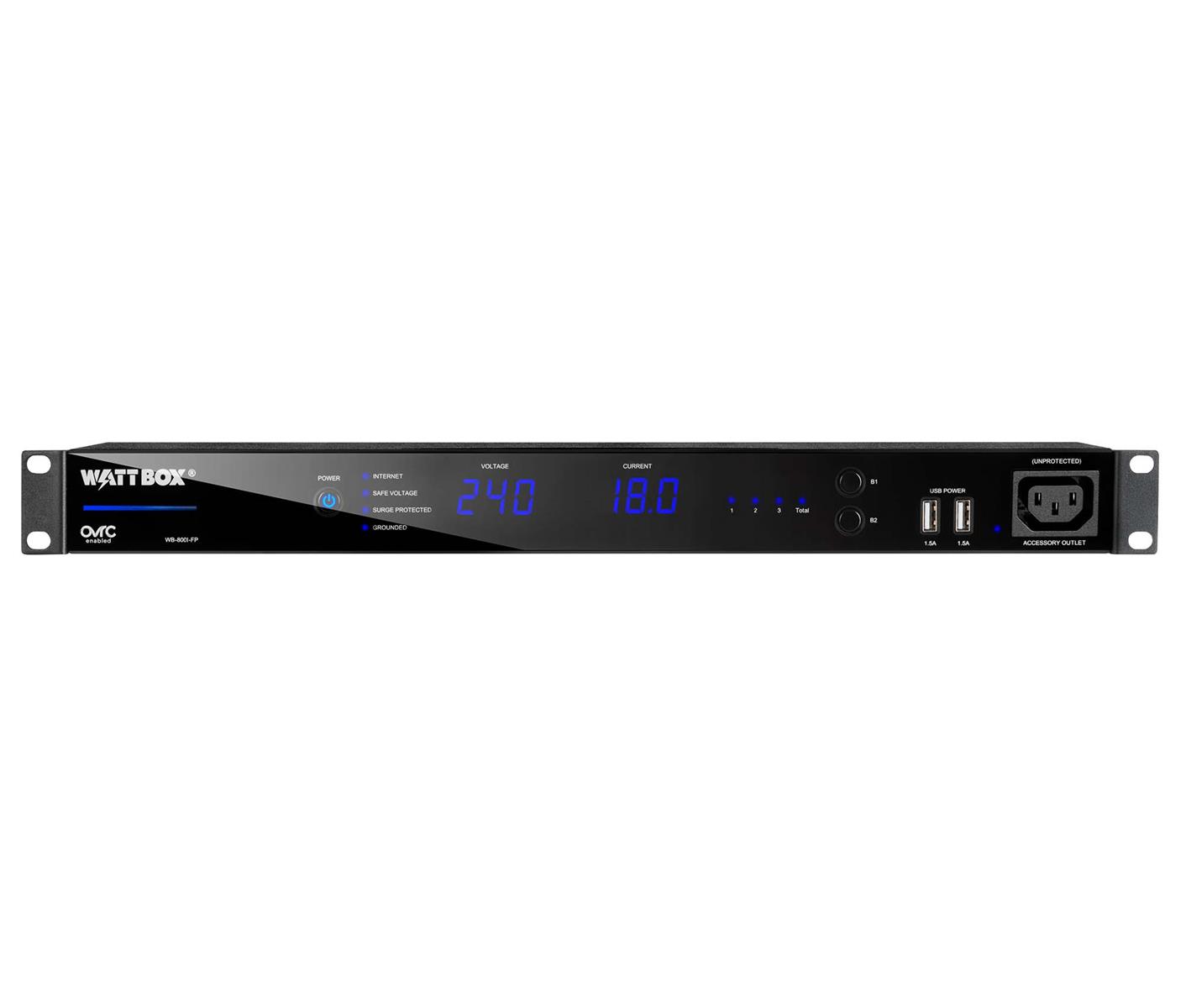

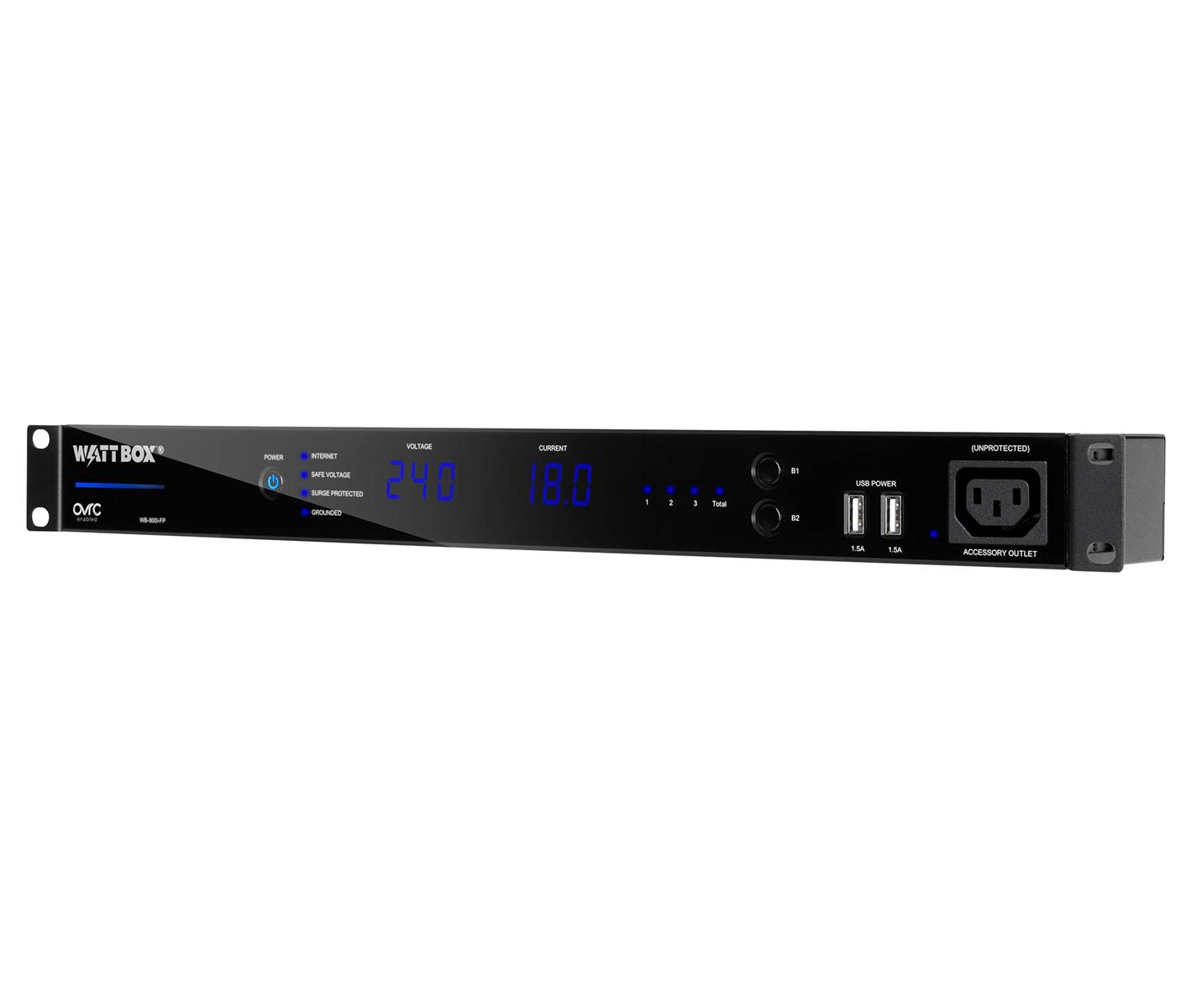

WattBox® 800I Series Faceplate
All of the information you need is at your fingertips with the WattBox 800 Series Faceplate. The LED display show the voltage and current (individual and global) and the LED status indicators show Internet connectivity, safe voltage status, surge protection status, and if the unit is grounded. Two buttons (B1/B2) give you the option for local reset of each individual PDU or all PDUs attached, and an AC power button allows you to toggle the connected PDUs on or off. Connect up to three Power Distribution Units for control and monitoring and utilize OvrC to view which PDUs are connected to the faceplate. On the front of the faceplate, an individual outlet and two USB charging ports are conveniently accessible for charging tools or as a quick power resource for customers. On the back of the faceplate, two additional USB charging ports are available.

Important Note: WB-800I-FP is only compatible with 800I Series IP WattBox Products, but it is not compatible with the WB-800ICH1U-IPVM-8.

• Detachable IEC Power Cord
• Volt/ Amp FacePlate
• Remote Firmware Upgrades
• Remote Management
• Mobile End-User App
• Local Control API

CONNECT UP TO THREE PDUS
The WattBox 800I Series Faceplate brings control to not just one, but up to three WattBox 800I Series PDUs for ultimate control and flexibility. Use the B1/B2 buttons on the faceplate to cycle through individual PDUs and reset locally.

1U RACK MOUNTABLE
The WattBox 800I Series Faceplate has a slim 1U rack-mountable form factor allowing it to easily be incorporated into nearly any job.

INTEGRATED FACEPLATE
LED status indicators on the left side of your WattBox show the status of internet connectivity, safe voltage, surge protection, and if the unit is properly grounded. Additionally, there are LED displays that show the AC voltage and current of the entire PDU or the aggregate of all PDUs attached. Two buttons (B1/B2) give you the option for local reset of each individual PDU or all PDUs connected, and an AC power button allows you to toggle connected PDUs on or off.

ULTIMATE IN TROUBLESHOOTING & CONTROL
The WattBox 800I Series goes above and beyond, letting you monitor total PDU wattage, amperage, and voltage monitoring and read-outs in real-time at each PDU for more advanced troubleshooting. With individual PDU metering, you can solve simple issues remotely, saving you time and money.

INCREASED FUNCTIONALITY
On the front of the faceplate, an individual outlet and two USB charging ports are conveniently accessible for charging tools or as a quick power resource for customers. On the back of the faceplate, two additional USB charging ports are available.
