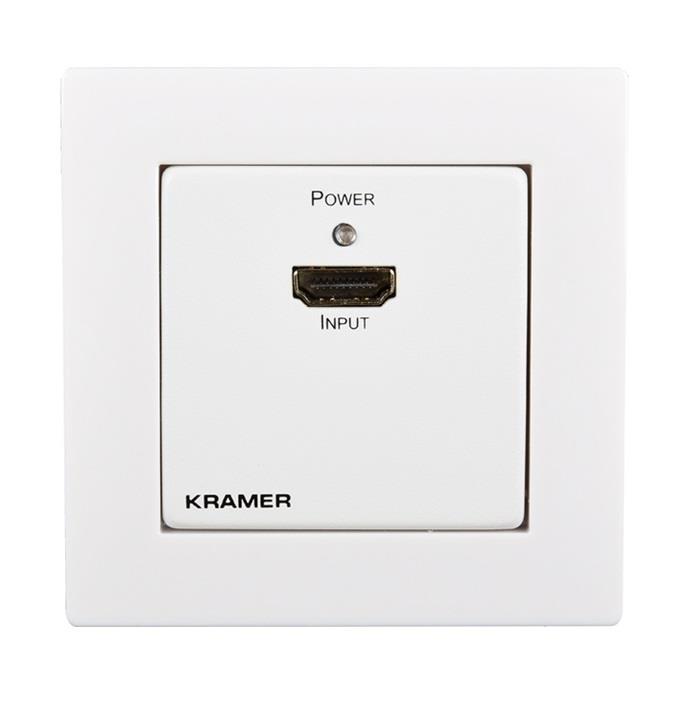

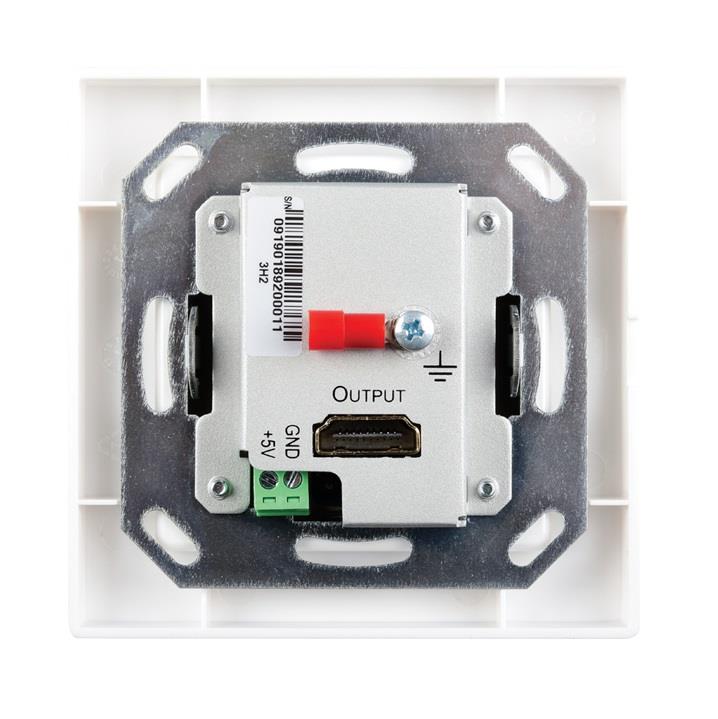

WP−3H2 is a 4K HDR HDMI wall−plate extender that extends the HDMI cable distance between the HDMI player and the HDMI display by reclocking and equalizing the HDMI signal. Placing WP−3H2 in the transmission path, removes dropout and digital noise (sparkles) in your picture that may result from using long HDMI cables.
- Extends HDMI Transmission Distance — Extends 4K@60Hz (4:4:4) signals up to 20m from the source (10m from the source to the HDMI Extender, and 10m from the HDMI extender to the display).
- Supports the DDWG standard for HDMI compliant displays.
- HDMI Support — Supports HDR10, ARC, CEC, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, Dolby atmos DTS–HD, 2K, 4K, and 3D Dolby Vision as specified in HDMI 2.0.
- Supports the DDWG standard for HDMI compliant displays.
- Kramer reKlocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
- Content Protection — HDCP 1.4 and HDCP 2.2 compliant.
General
- Application
- Connection module
Connections
- HDMI
- Yes
- DisplayPort
- No
- USB type-C
- No
- USB type-A
- No
- VGA
- No
- DVI
- No
- Audio 3.5mm
- No
- Balanced audio
- No
- Ethernet
- No
- Cable pass-through
- No
- 230V Connector
- 0 pcs.
Dimensions and weight
- Length
- 70 mm
- Width
- 70 mm
- Depth
- 24 mm
- Net weight
- 0.1 kg
Additional information
- Color
- White
- Included Accessories
- Power supply, 1 EU white frame, 1 UK white frame, 1 EU/UK white faceplate
- Warranty
- 7 years
Packaging info
- Packaging size
- 50 x 100 x 100 mm
- Packaging weight
- 614 g
