Table Mount Modular Multi–Connection Solution — Manually Retracting Lid
- Rectangular
- Retractable Lid
- Modular Design

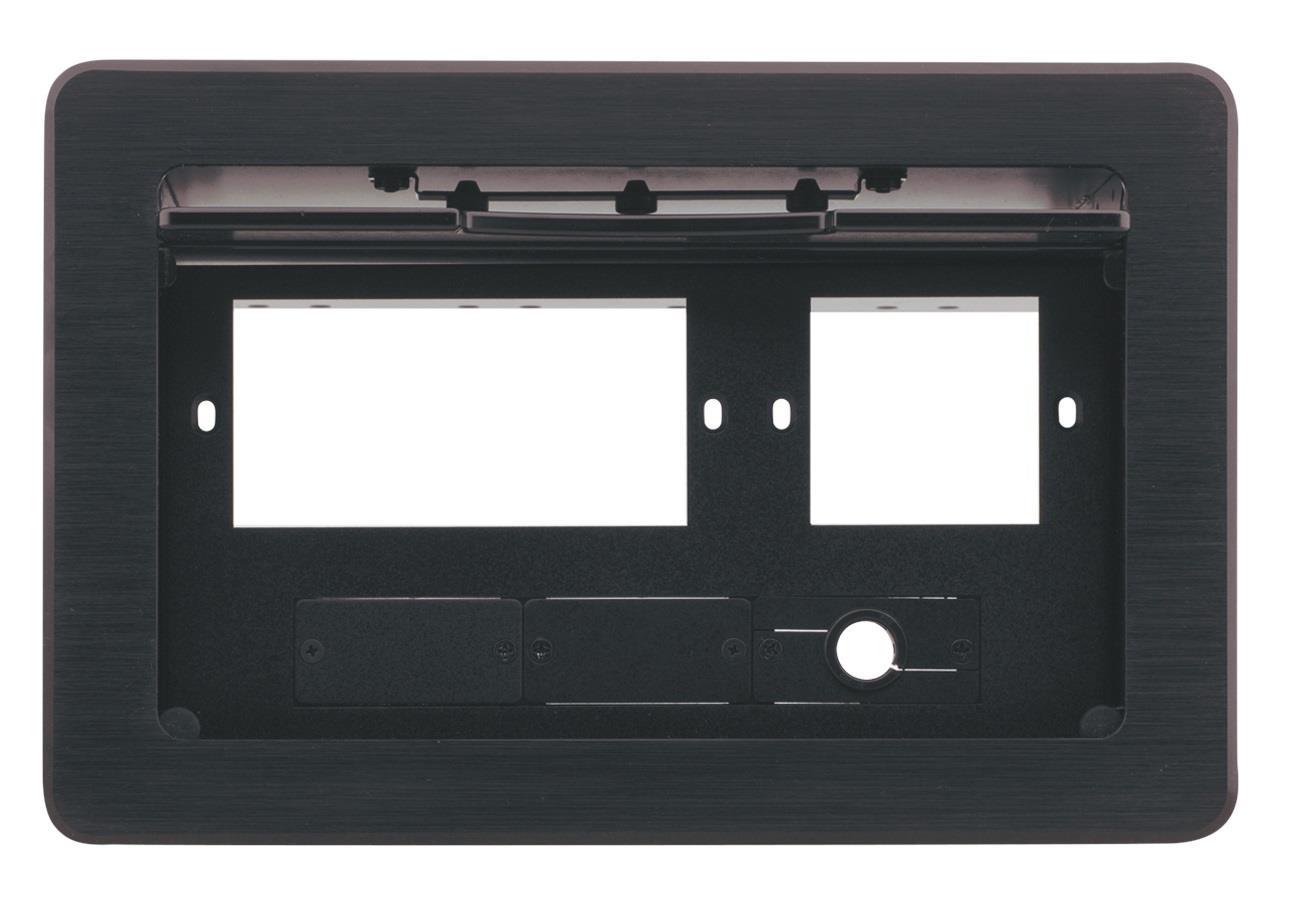

The TBUS−10xl is the enclosure of a new modular system with a manually retracting lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.
NOTE: The TBUS enclosure, inner frame, power socket(s), power cord & inserts are purchased separately.

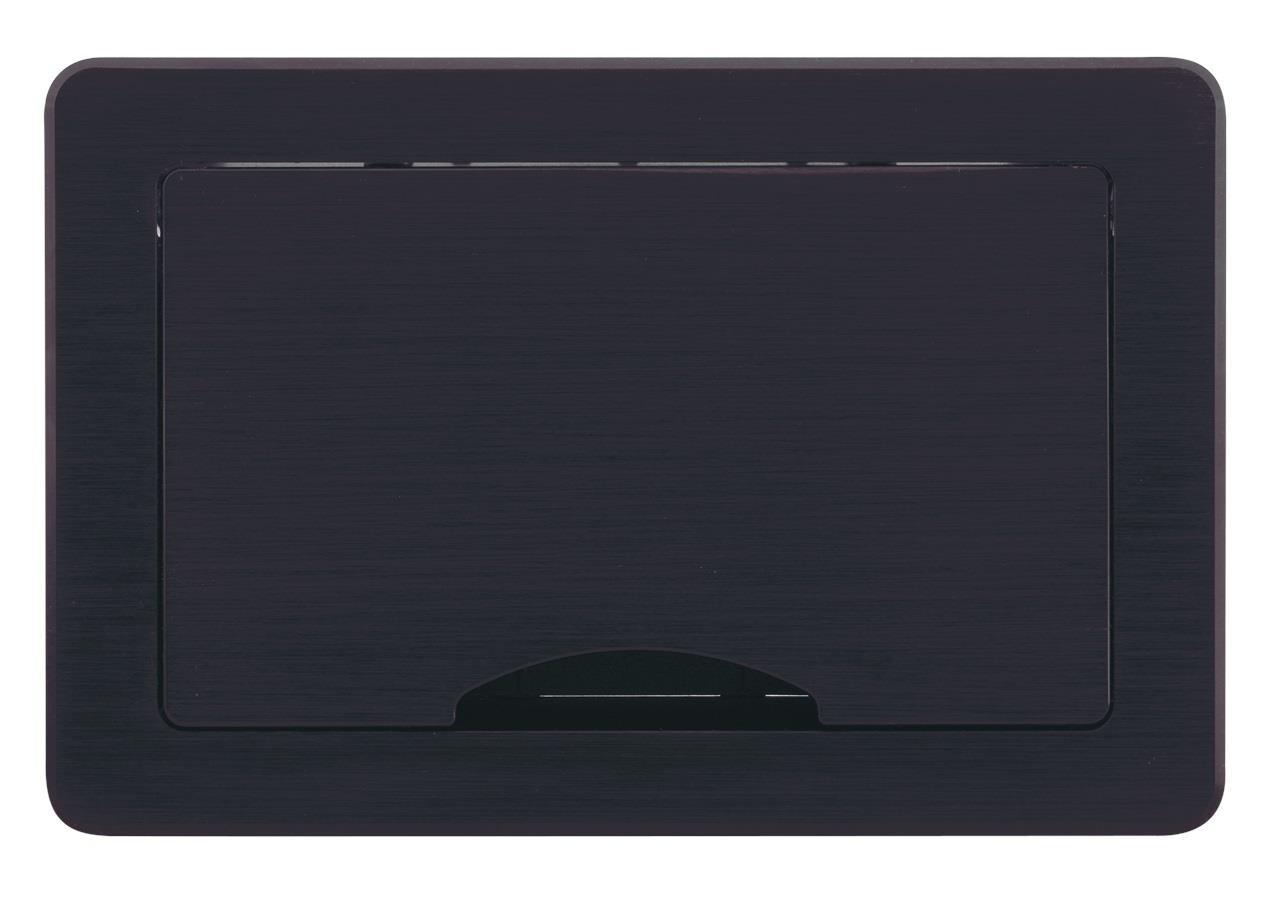

- Cover — Manually opens & closes.
- Inner Frames — T10F–22M can accommodate a combination of up to 2 power sockets, 2 inserts, 1 opening for a Kramer MegaTOOL SID–X1N; T10F–33 contains 3 power sockets and 3 inserts.
- Power Sockets — 11 different "TS" single and 10 dual power socket options are available to accommodate the power requirements worldwide.
- Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket. UL and CE qualified.
- Connector Depth — Adjustable.
- Installation Requirement — Table cutout of 245mm x 154mm (9.65" x 6.07").
- Dimensions — Top plate: 171.6mm x 261mm (6.8" x 10.3") W, D.
- Weight — TBUS–10xl: 1.35kg (2.8lbs) approx.; table clamps: 0.25kg (0.6lbs) approx.
- Accessories — TBUS clamps (part of the TBUS enclosure), cut–out template, template screws, self–locking ties.
- Options — Inner frames, passive wall plates and interfaces, power socket kits, power cord, T–2INSERT kit, T–RC–8IR kit, T–RC–76 kit, T–RC–78 kit, Kramer K–Able Box (furniture–mounted cable extension).
General
- Application
- Table, lid 1-way
- Modular
- Yes
Connections
- HDMI
- No
- DisplayPort
- No
- USB type-C
- No
- USB type-A
- No
- VGA
- No
- DVI
- No
- Audio 3.5mm
- No
- Balanced audio
- No
- Ethernet
- No
- Cable pass-through
- No
- 230V Connector
- 0 pcs. Sold separately
Dimensions and weight
- Length
- 260 mm
- Width
- 172 mm
- Depth
- 136 mm
- Lenght cutout hole
- 245 mm
- Witdh cutout hole
- 154 mm
- Net weight
- 2 kg
Additional information
- Color
- Silver
- Warranty
- 7 years
Packaging info
- Packaging size
- 300 x 150 x 100 mm
- Packaging weight
- 1,000 g
