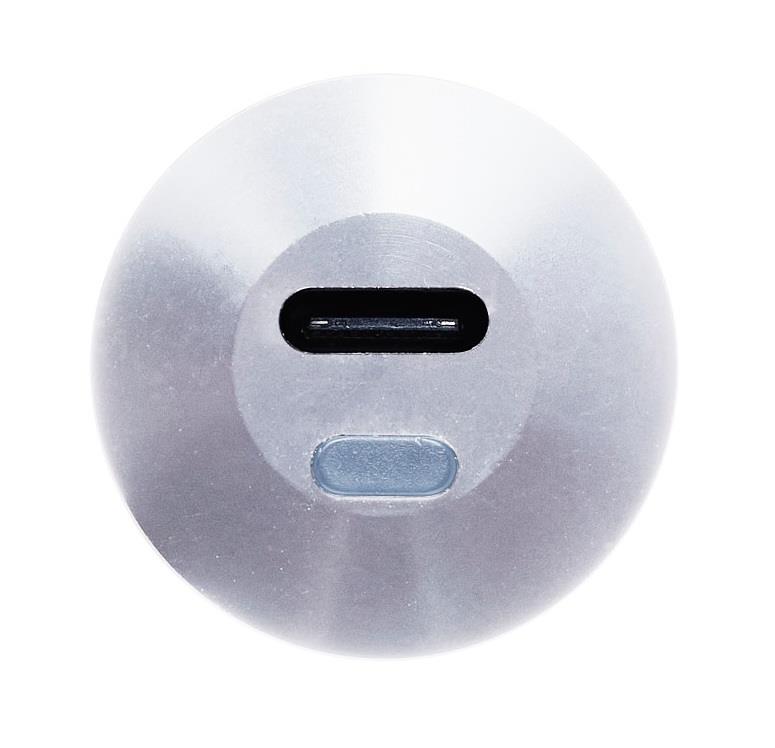

The elegantly designed USB-C table socket enables hiding the technology under the table and minimize cables. The four different surface finish in scratch free hard anodized aluminum offers optimal design combinations when selecting material for the tables.

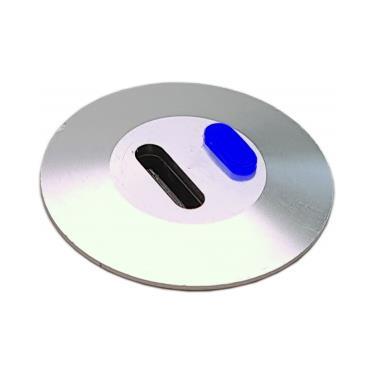

An integrated LED-button is used to steer and indicate which port is active for showing image and videoconferencing. Colour and function on the button can be configured via Ochno Management Console.
Ochno Socket LED support charging up to 5A/100W, USB 3.1 communication and video (alt-mode DisplayPort) together with Ochno Power Conference.
Functional description
Docking: 5A/100W charging, USB 3.1 communication, Alt-mode DisplayPort 1.2-1.4 video when used together with Ochno main units and cables. No guaranteed functionality when used with third party docking stations. Docking station with DisplayLink is supported. Docking via Thunderbolt is not supported. Only charging is supported for third party products.
Lighting: Programmable RGBW (Red, Green, Blue, White) LED. Any colour and brightness can be selected via Ochno Management Console.
Lighting scheme: Off, steady light, pulsating glow.
Button: Short and distinct press of button.
Operating modes: All operating modes can be programmed for unique colour and lighting scheme:
• No cable connected in port, port not chosen
• No cable connected in port, port chosen as active
• Cable connected, port not chosen
• Cable connected, port chosen as active
• Cable connected, MTR mode is chosen
• Cable connected, BYOD mode chosen
Connection: LED-button function is connected with Ochno Power Conference separately via the adapter O-SBC-200-1 that can drive up to 4 of the Ochno Socket LED.
Installed easily through a 18 mm hole.
General
- Application
- Table, flush installed
- Modular
- No
Connections
- USB type-C
- Yes
- 230V Connector
- 0 pcs.
Dimensions and weight
- Max tabletop thickness
- 33 mm
- Lenght cutout hole
- 18 mm Diameter
- Witdh cutout hole
- 18 mm Diameter
- Net weight
- 0.09 kg
- Cable lenght
- 1 m
Additional information
- Color
- Aluminum
- Included Accessories
- Outlet with nut for fixation to table, 1m attached USB-C cable with locking screw
- Warranty
- 1 years
Packaging info
- Packaging size
- 108 x 103 x 37 mm
- Packaging weight
- 104 g
