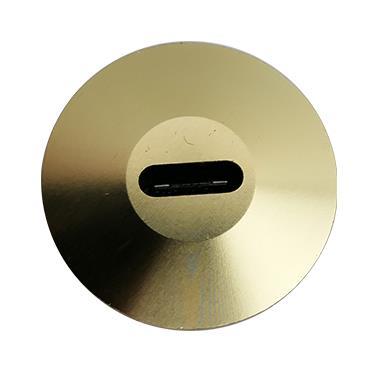

The elegantly designed USB-C table socket enables hiding the technology under the table and minimize cables. The four different surface finish in scratch free hard anodized aluminum offers optimal design combinations when selecting material for the tables.

Ochno Socket support charging up to 5A/100 USB 3.1 communication and video (alt-mode DisplayPort) together with Ochno Power Conference and Ochno Power Desktop. Possible to use with third party USB-C chargers as well. Not guaranteed to work with third party docking stations.

Functional description:
Full docking: 5A/100W charging, USB 3.1 communication, Alt-mode DisplayPort 1.2-1.4 video when used together with Ochno main units and cables. No guaranteed functionality when used with third party docking stations. Docking station with DisplayLink is supported. Docking via Thunderbolt is not supported. Only charging is supported for third party products.

Also available with 2 to 3 m for only charging.

Installed easily through a 18 mm hole.



General

Application
Table, flush installed

Connections

USB type-C
Yes
230V Connector
0 pcs.

Dimensions and weight

Max tabletop thickness
32 mm
Lenght cutout hole
18 mm Diameter
Witdh cutout hole
18 mm Diameter
Net weight
0.09 kg
Cable lenght
1 m

Additional information

Color
Brass
Included Accessories

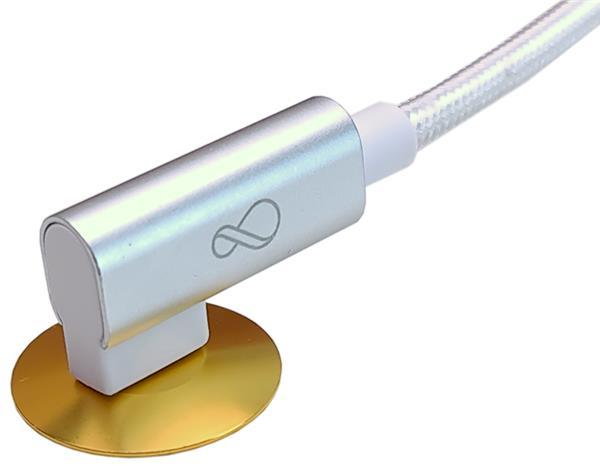

Outlet with nut for fixation to table, 1m attached USB-C cable with locking screw
Warranty
1 years

Packaging info

Packaging size
109 x 106 x 37 mm
Packaging weight
98 g
