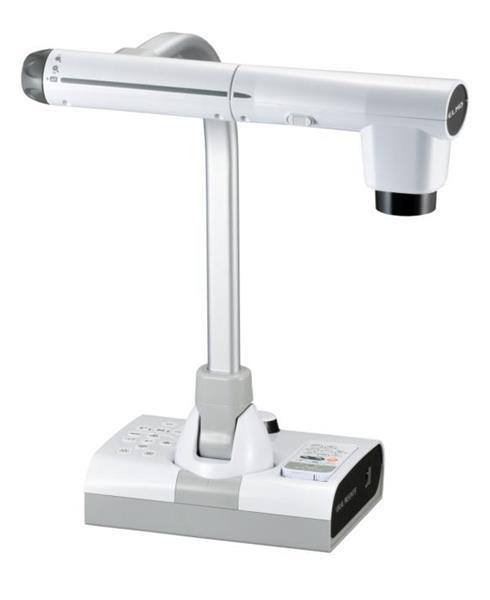

ELMO L-12 series is one of the best selling visualiser in the world. At school, university or online class, it assists teachers to visually explain any contents and enhances students comprehention.

Key Features:

  • Native 4K Output

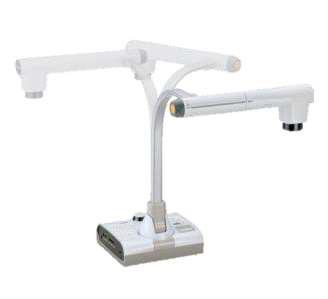

  • Adjustable Arm & Camera Head
  • Zoom x 192 (Optical x 12 + Digital x 16 )
  • Pass-Through HDMI IN/OUT, RGB IN / OUT
  • Combination with Interactive Flat Panel
  • Built-In Mic for Lecture Capturing and Online Classroom
  • Wireless image transmission is possible via Miracast to display system with ELMO Cast dongle (option)


General

Camera type
Document camera
Color
White

Image specification

Max Resolution (Out)
3840x2160
Framerate
60 FPS
Optical zoom
12 x
Digital zoom
16 x
Min. working distance
50 mm

Functions

Programmable presets
No
Ceiling installation/Flip image
No
Auto framing/tracking
No

Audio specification

Built-in microphone
Yes Only for stand-alone recordig to SD/USB memory device
External microphone
No
Built-in speaker
No
External speaker
No

Connections

Video out
HDMI, USB-A, USB-C, VGA
USB standard
2.0

Energy

Power Supply
100-240V AC, 12V DC out
Consumption Max
21.6 W

Dimensions and weight

Width
349 mm
Depth
377 mm
Height
435 mm
Net weight
3 kg

Additional information

Included Accessories
AC Adapter, Remote, Manual, USB 2.0 cable (Type-C)
Warranty
5 years

Packaging info

Packaging size
377 x 349 x 432 mm
Packaging weight
5.20 kg
