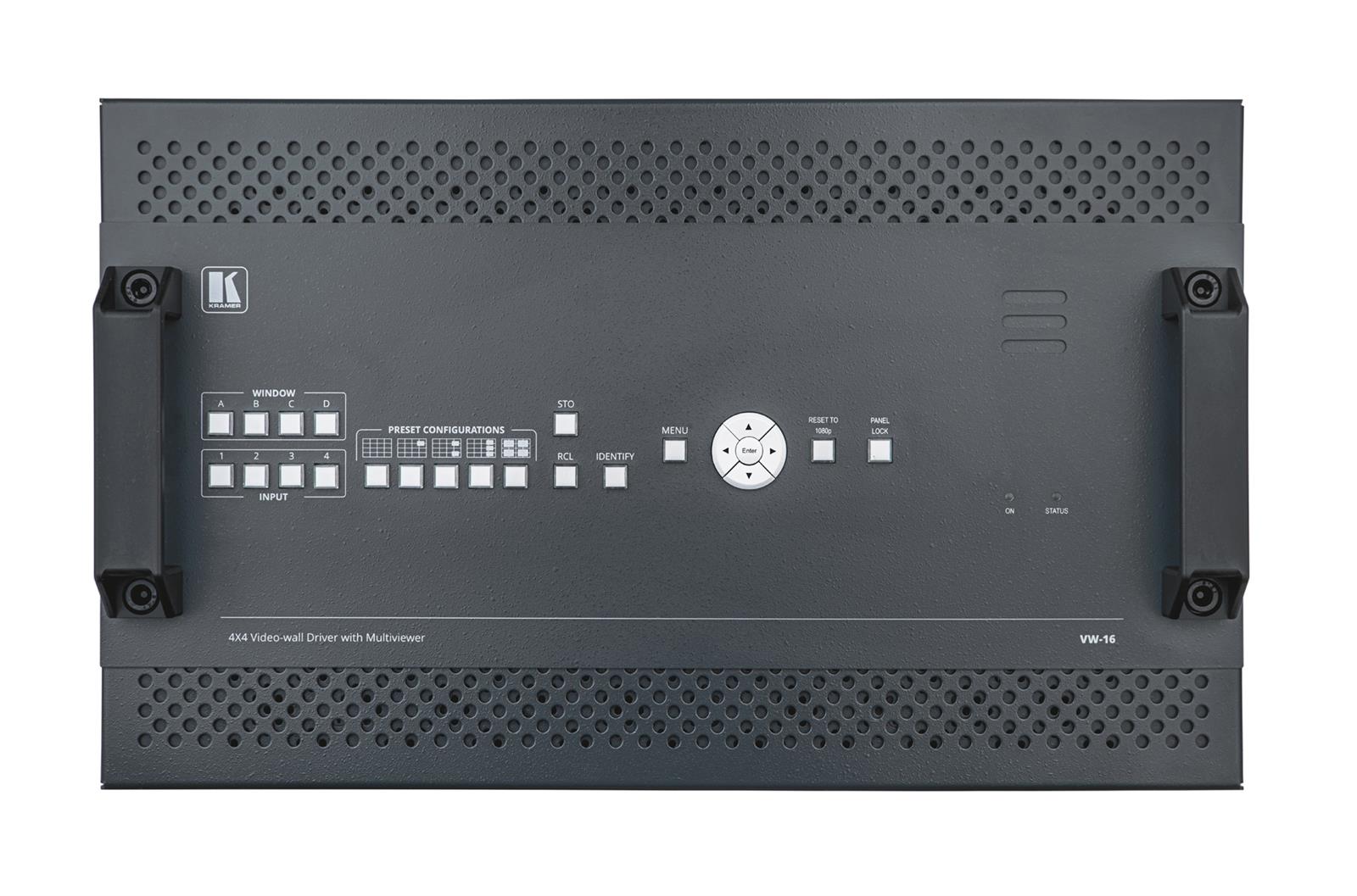

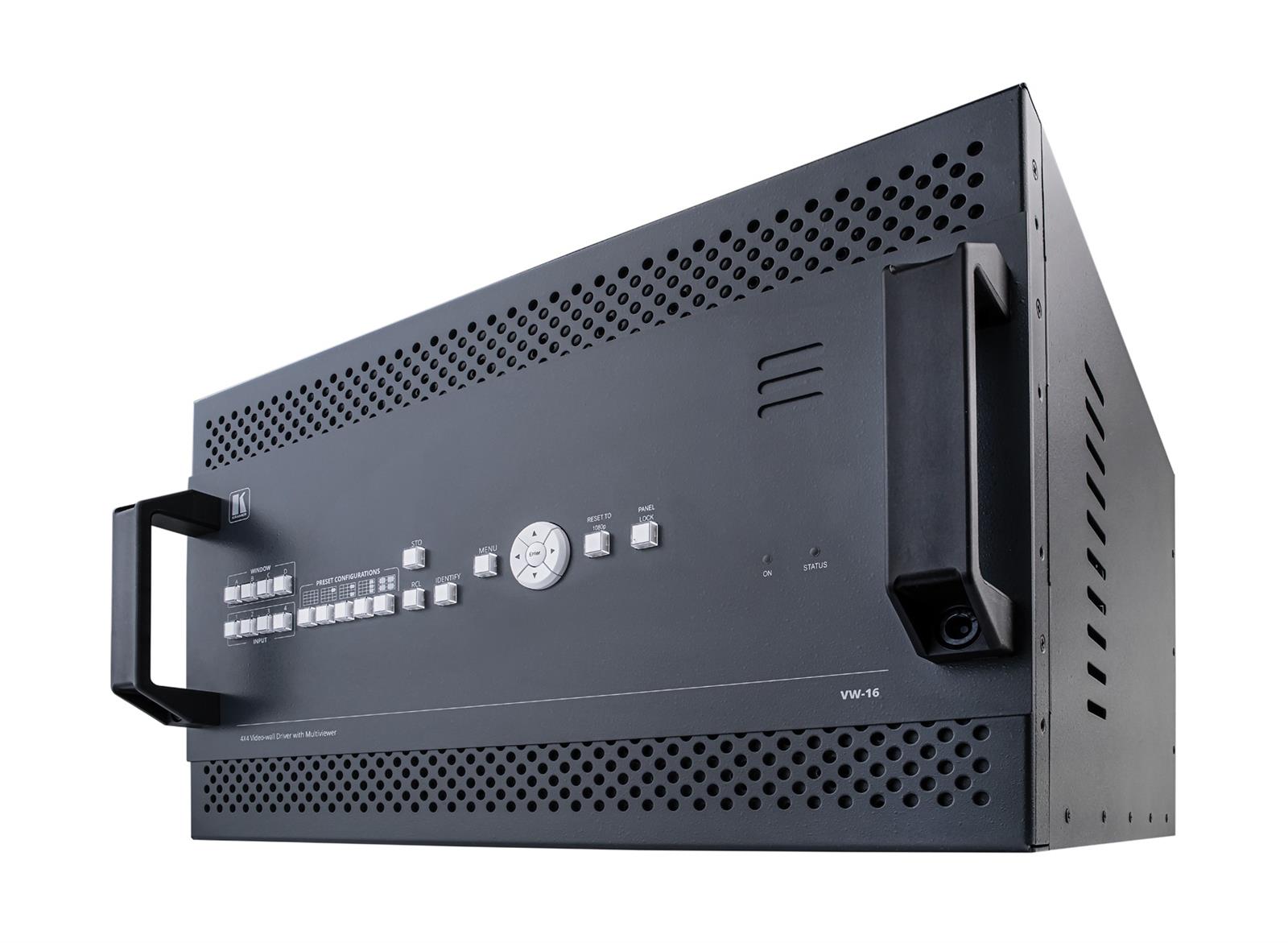

Kramer's VW−16 HDMI 2.0 Multiview Video Wall Processor is an advanced 4−input and 16−output video processor, offering a videowall driver with multiviewer features, scaling, customized screen layouts, and fast, clean video switching between inputs.
The unit also features audio switching and incorporates an analog audio output in addition to the embedded HDMI audio.
It offers a user−friendly web UI, RS−232, RS−485, RS−422 control options, and includes bezel correction, picture adjustment options, and HDCP and EDID configuration.
- Fast switching between input channels and combined multiple source images on video wall
- Suitable for any wall configuration with up to 16 displays — 4X4, 2x8, 8x2, 5x3, etc.
- Handles HDMI 2.0 signals with Deep Color and HDCP 2.2 sources
- Input and output resolution up to 4K @60Hz, 4:4:4 color sampling
- Scales up and down to any resolution — up to 4K @60Hz, 4:4:4 color sampling
- PiP, PoP, quad–view, and multiple customized screen layout configurations on the videowall
- Rotation (90°and 270°) in full screen layout
- Bezel correction
- Stereo audio output
- Control by web UI, RS232, RS485, RS422 and telnet
- Firmware upgrade via USB port
- Dual built–in power supply
Applications:
- Signage in hotel lobbies, hospitals, and government offices
- Conference room presentations
- Advertising in shopping malls, supermarket, and restaurants
- Airports, buses, and train stations
- Rental and staging events
- Monitoring in control rooms, banks, and stock markets
- Security and surveillance systems
General
- Model
- VW-16
- Utök. text för namn sist
- Multiview Video Wall Processor
- Application
- Videoväggs processor
Image specification
- Resolution
- 4096x2160
- Refresh rate
- 60 Hz
- Chroma subsampling
- 4:4:4
Connections
- Video inputs
- 4
- Video outputs
- 16
- Video in
- HDMI 2.0 with HDCP 1.4 And HDCP 2.2 compliance
- Video out
- HDMI 2.0 with HDCP 1.4 And HDCP 2.2 compliance
- Audio inputs
- HDMI Embedded audio
- Audio outputs
- Euroblock line 3-pin unbalanced stereo
- Audio outputs
- HDMI Embedded audio
Functions
- Scaler
- Yes
- Video operation modes
- Multiviewer, P&P - Split screen, PiP - Picture in Picture, POP - picture over picture, Quad view - 4 split, Videowall/Tileing
- USB passthrough
- No
- Control
- Ethernet/IP (RJ-45), Front buttons, On-screen display, RS-232, RS-422, RS-485, Web interface
Energy
- Power Supply
- Dual (Redundant) Built-in PSUs: 100–240 VAC / 50/60 Hz, Consumption: 300W
Measurements and weight
- Width
- 440 mm
- Depth
- 380 mm
- Height
- 265 mm
- Net weight
- 16.3 kg
Various
- Mounting
- 19" Rack, 5U With supplied rack kit
- Mounting
- Table
- Included Accessories
- Rack mounting kit, 2x Power Cords, Quick Start Guide
- Warranty
- 7 years
