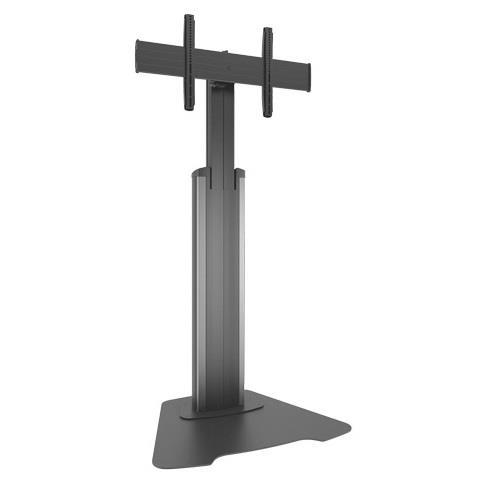

This floor AV stand incorporates rounded edges and sleek features to give a softer, professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via hand or 1/2" hex bit on a power drill.

Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

Key Features

  • Sleek look suitable for multiple environments
  • Turn knob allows single user to easily adjust the screen height by hand or 1/2" hex drill bit to height
  • Flexible cable covers allow lay in access anywhere along column
  • Centris Technology provides tilt and roll with use of knobs


General

Number of displays
1 pcs.
Display orientation
Landscape
Application
Floor
Color
Silver
Videowall
No

Functions

Column Type
Adjustable Manual
Height adjustable
Yes
Tiltable
Yes +/-5°
Roll/Pivot
Yes Micro adjust
Mobile
No
Motorized
No
Lockable
No

Dimensions and weight

VESA mount interface (mm)
200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x300, 500x400, 600x100, 600x200, 600x400, 700x200, 700x300, 700x400, 800x200, 800x300, 800x400
Column lenght min
1,131 mm Floor-center of display
Column lenght max
1,639 mm Floor-center of display
Weight capacity (per screen)
90.7 kg

Additional information

Warranty
10 years

Packaging info

Packaging size
1,231 x 660 x 254 mm
Packaging weight
61.23 kg
