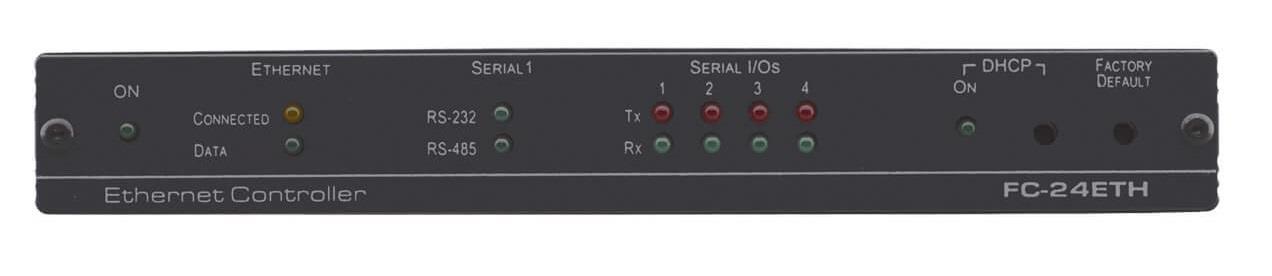

The FC−24ETH is an Ethernet control gateway, capable of plug and play deployment over a customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 or RS−485 serial control connections. Multiple control clients can be IP−connected to the FC−24ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.
Key Features:
- 1 RS-485 or RS-232 Selectable Bidirectional Control Port - Controls a device via bidirectional serial control protocols.
- 3 RS-232 Bidirectional Control Ports - Control devices via bidirectional RS−232 serial control protocols.
- 1 Ethernet Control Port - Remote protocol−based control port.
- Built-in Web Pages - Remote browser−based control and support.
- Simultaneous IP Control Communication - With up to 40 IP control clients.
- Mini USB Port - For firmware upgrades and local technical services.
- Easy Installation - Plug & play IP auto−setup deployment for simple and cost−reducing installation.

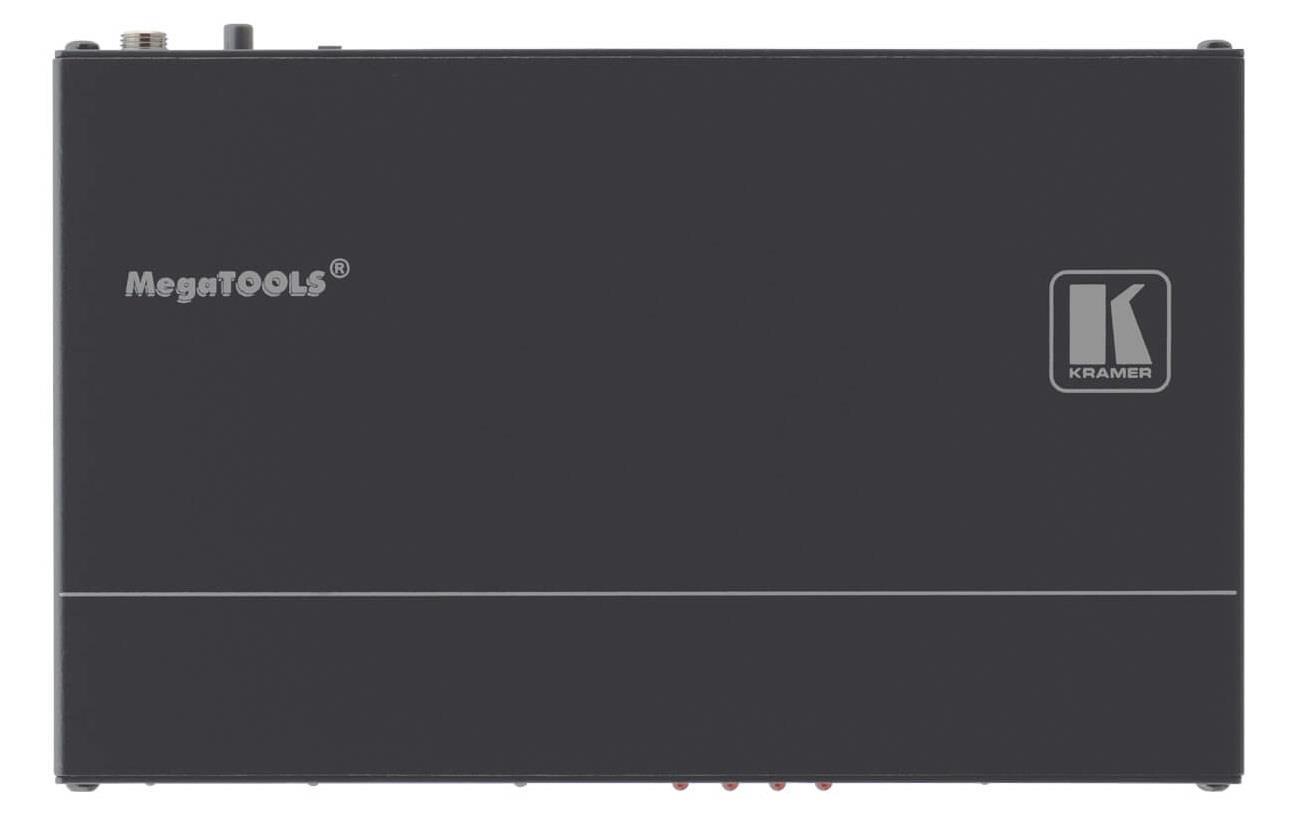

- Size - MegaTOOLS® - Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
Connections
- Control ports
- Ethernet/IP (RJ-45)
- Control ports
- RS-232 x4
- Ethernet
- Yes
- WiFi
- No
Energy
- Power Supply
- 5V DC, 200mA
Dimensions and weight
- Width
- 190 mm
- Depth
- 115 mm
- Height
- 27 mm
- Net weight
- 0.4 kg
Additional information
- Color
- Black
- Warranty
- 7 years
Packaging info
- Packaging size
- 345 x 165 x 52 mm
- Packaging weight
- 921 g
