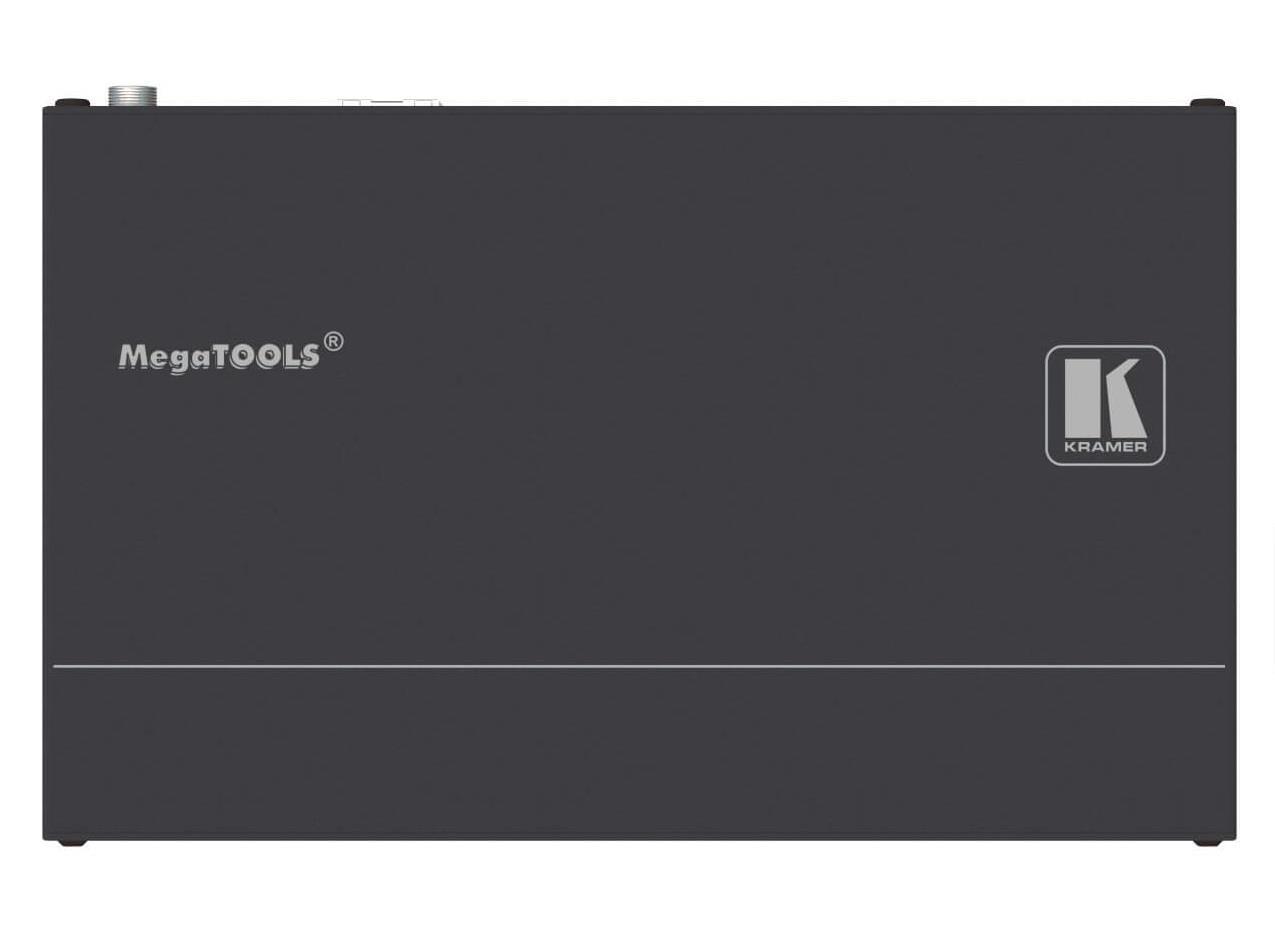

The FC−28 is a PoE−powered control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232, IR, GPI/O and relay control connections. Multiple control clients can be IP−connected to the FC−28 control gateway for concurrent control of two RS−232,four IR controllable devices, such as AV scalers, video displays, audio amplifiers, DVD players, sensors, screens, shades, door locks, and lighting.
Key Features:
- 2 RS-232 Bi-directional Control Ports - Control a device via bi-directional serial control protocols.
- 4 IR Emitter Control Ports - Control a device via IR control protocols.
- 2 GPI/O Control Ports - Controls a device via general purpose I/O ports, program-configured as digital input, digital output or analog input interface for controlling sensors, door-locks, audio volume and light dim level, or lighting control devices.
- 2 Relay Control Ports - Control a device via relay contact closure, such as scrolling up and down screens, drapes, shades, and blinds.
- Simultaneous IP Control Communication - With up to 40 IP control clients.
- IR Sensor Port - Learns commands from IR remotes.
- Mini USB Port - For firmware upgrades and local technical services.
- 1 Ethernet Control Port - Remote protocol-based control port.
- PoE Support - Per IEEE 802.3af standard.
- Built-in Web Pages - Remote browser-based control and support.

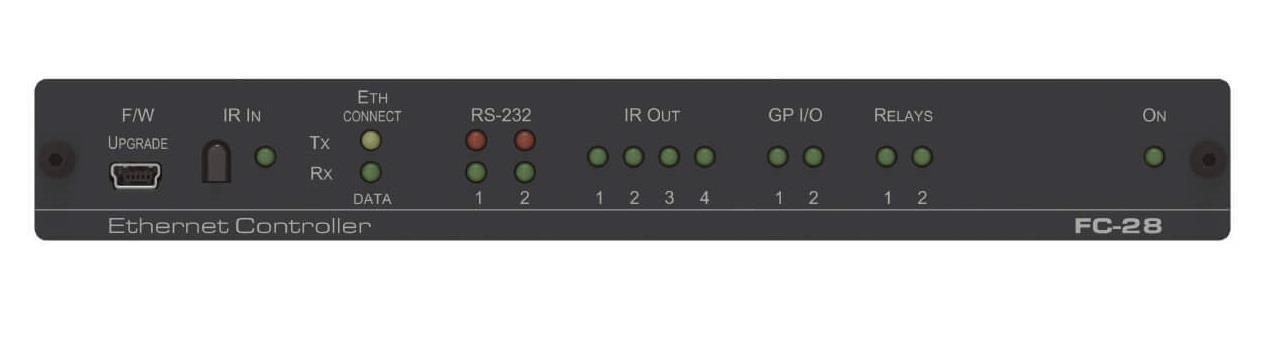

Connections
- Control ports
- Ethernet/IP (RJ-45)
- Control ports
- GPI/O x2
- Control ports
- IR cable connection x4
- Control ports
- Relay x2
- Control ports
- RS-232 x2
- Ethernet
- Yes
- WiFi
- No
Energy
- Power Supply
- 5V DC, 230mA
Dimensions and weight
- Width
- 190 mm
- Depth
- 115 mm
- Height
- 27 mm
- Net weight
- 0.5 kg
Additional information
- Color
- Black
- Included Accessories
- Power adapter, IR Cable C–A35M/IRE–10
- Warranty
- 7 years
Packaging info
- Packaging size
- 345 x 165 x 52 mm
- Packaging weight
- 1,000 g
