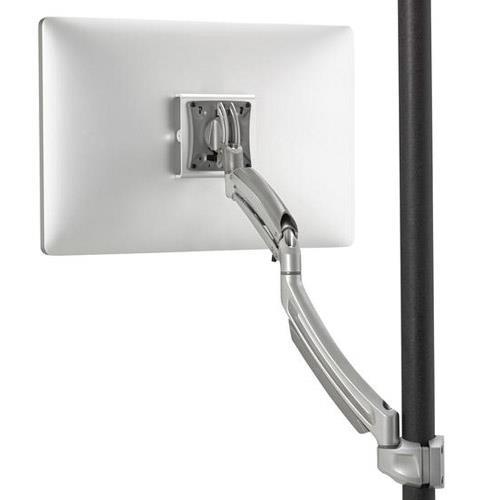

The enhanced Kontour™ K1P Dynamic Height-Adjustable Pole Mounts are the perfect monitor mount solutions for the office, public spaces, healthcare facilities, or home; with the Pole Mount offering extended manual height adjustment using Chief KTA pole accessories. Best-in-class weight capacity range makes specification simple!
Key enhancements have been made to Chief's patented Centris™ Extreme Tilt technology for the ultimate in effortless fingertip monitor positioning. Kontour™ monitor mounts float your displays in the optimal ergonomic position to create a more productive and comfortable work space.
Note: Pole not included; see KTA Pole Accessories on Accessories tab

Key Features:

  • Best-in-class weight capacity range of 5 to 25 lbs. makes specification simple
  • No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One!
  • Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes
  • Enhanced patented Centris™ Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
  • 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
  • Infinite manual height adjustment on the Pole for optimizing screen position
  • Easily clamps to poles ranging from 1.50" - 1.90" diameter, including Chief's KTA pole accessories
  • Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance
  • Tool-free cable management covers for a clean, professional look
  • With high levels of recycled content & a highly-recyclable design, Chief Kontour™ monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits!
  • See our LEED Flyer for more details
  • Most Kontour™ K1 products are TAA-compliant - see respective product pages for details


General

Number of displays
1 pcs.
Application
Clamp/Truss
Color
Silver
Display orientation
Landscape, Portrait

Functions

Gas-spring damping
Yes
Height adjustable
Yes
Side adjustment
Yes
Depth adjustment
Yes
Tiltable
Yes +75°/-10°
Swing/Pan
Yes
Roll/Pivot
Yes +/-90°
Lockable
No

Dimensions and weight

VESA mount interface (mm)
100x100, 75x75
Min weight (per display)
2.3 kg
Max weight (per display)
11.3 kg
Net weight
4.72 kg

Additional information

Warranty
10 years

Packaging info

Packaging size
933 x 387 x 152 mm
Packaging weight
4.72 kg
