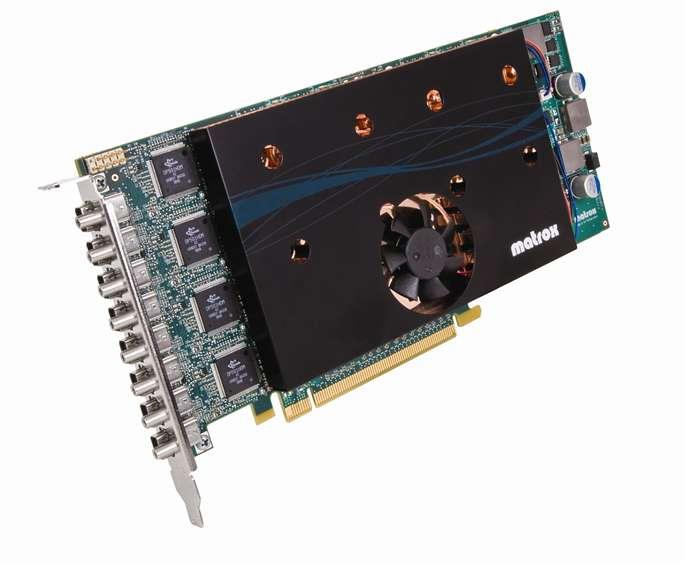

The Matrox M9188 PCIe x16 multi-display Octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.

Hardware Included

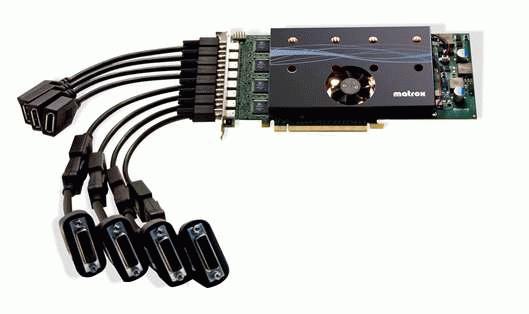

8x DisplayPort to DVI adapters
8x Mini DisplayPort to DisplayPort adapters

Main Software Features

Independent Desktop Mode

Stretched Desktop Mode

Clone Mode

Pivot Mode

Video Output Resolutions
DisplayPort:
2560x1600*

*Max resolutions are per output

Support for Custom Resolutions contact Matrox for specific requirements.



General

Brand
Matrox
Model
M9188

Memory

Video memory
2 GB

Ports

HDMI
No
DisplayPort
Yes 8 pcs mini dp

Packaging info

Packaging size
442 x 102 x 212 mm
Packaging weight
1.58 kg
